Quick Details
-
Input Speed:
-
Max.1500RPM
-
Output Speed:
-
25 - 1500RPM
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
NOSEN
-
Model Number:
-
RNV-120
-
Gear Ratio:
-
1:1,2:1
-
Warranty:
-
One Year
-
Lubrication:
-
Injected before shipping
-
Noise Level:
-
Less than 80dB
-
Drive Shaft:
-
2 ways, 3 ways, 4 ways
Quick Details
-
Gearing Arrangement:
-
Bevel / Miter
-
Output Torque:
-
Max.137.51 N.m
-
Rated Power:
-
Max.18 HP
-
Input Speed:
-
Max.1500RPM
-
Output Speed:
-
25 - 1500RPM
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
NOSEN
-
Model Number:
-
RNV-120
-
Gear Ratio:
-
1:1,2:1
-
Warranty:
-
One Year
-
Lubrication:
-
Injected before shipping
-
Noise Level:
-
Less than 80dB
-
Drive Shaft:
-
2 ways, 3 ways, 4 ways

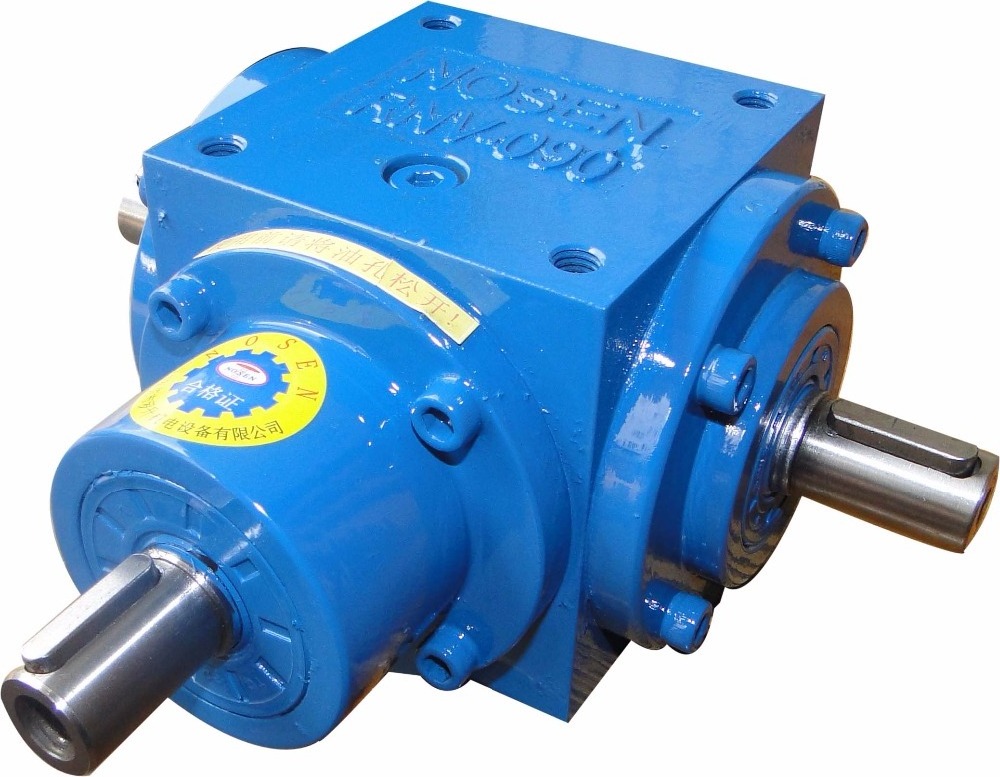

NOSEN Crown Gear Drive 90 Degree Miniature Bevel Gearbox
Data Sheet:
| Model | Gear Ratio | 1500rpm | 1000rpm | 750rpm | 500rpm | 250rpm | 50rpm | ||||||
| HP | N.m | HP | N.m | HP | N.m | HP | N.m | HP | N.m | HP | N.m | ||
| RNV- 120 | 1:1 | 18 | 86 | 13.52 | 96.83 | 11.34 | 108.29 | 8.45 | 121.04 | 4.52 | 129.49 | 0.96 | 137.51 |
| 2:1 | 8 | 38.5 | 5.9 | 42.26 | 4.7 | 44.88 | 3.38 | 48.42 | 1.8 | 51.57 | 0.38 | 54.43 | |
| Features | |
| Model | RNV-065, RNV-090, RNV-120, RNV-160, RNV-200, RNV-260 |
| Speed Ratio | 1:1,2:1,3:1,4:1,5:1. Special ratio,following clients' orders |
| Input Shaft | 2 ways,3ways,4 ways gearboxes are available |
| Configurations |
spiral bevel gears,bearings,aluminum housing, oil sealing,input and output shafts etc. |
| Material |
Alloy steel spiral bevel gears: , taper roller bearings, cast iron gearbox base; S45C Input&Output shaft |
| Functions |
right angles change transmission directions, Compared to worm gear reducer: spiral bevel gear box is of flexiable operational capacity, high transmission torque and save more cost. |
Trade terms:CIF FOB EXW
Payment Terms: L/C,T/T Western Union
Delivery Time:5-7working days after deposit.
Packaging Detail:Standard exporting package
Shipping: By sea,by air and by express delivery
