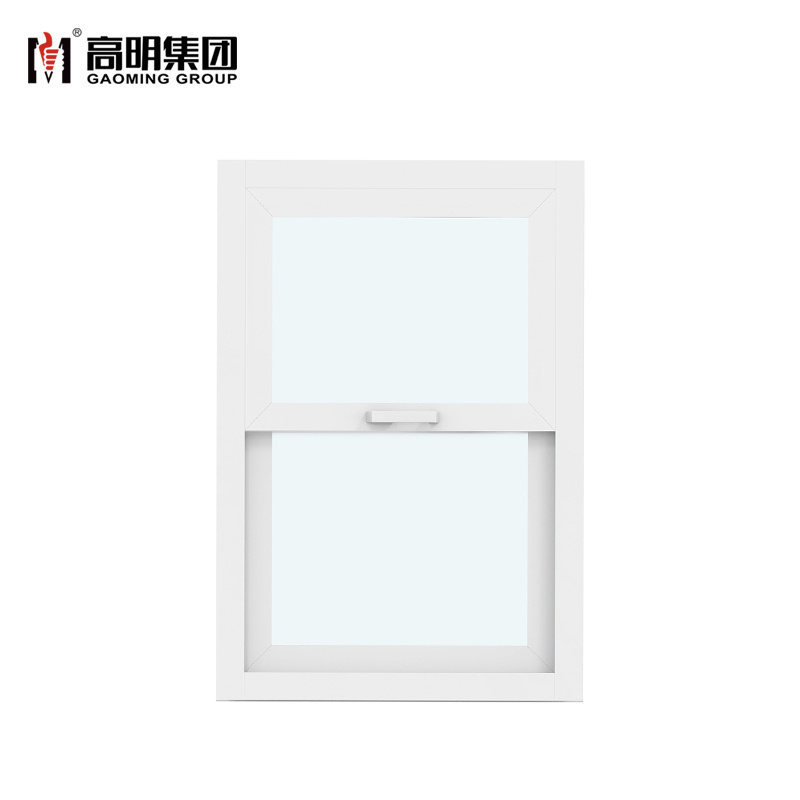

Gaoming 68 Series Insulated Glass White American Kitchen Bedroom Aluminum up Down Sliding Window Horizontal Modern Hanging EPDM
- Product Details
- {{item.text}}
Quick Details
-
Design Style:
-
Modern
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Gaoming
-
Model Number:
-
68
-
Frame Thickness:
-
76mm
-
Glass Type:
-
5+15A+5 Hollow Tempered Glass
-
Glass Thickness:
-
25-48mm
-
Hardware:
-
SIEGENIA/HOPPE/VBH/TECHWAY
-
Nylon Insulation Strip:
-
PA66-GF25
-
Window Sealing Strip:
-
EPDM
-
Surface Treatment:
-
Gema Switzerland
-
Color:
-
Customized Colors
Quick Details
-
Feature:
-
Magnetic Screen
-
Function:
-
Windproof
-
Application:
-
All
-
Design Style:
-
Modern
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Gaoming
-
Model Number:
-
68
-
Frame Thickness:
-
76mm
-
Glass Type:
-
5+15A+5 Hollow Tempered Glass
-
Glass Thickness:
-
25-48mm
-
Hardware:
-
SIEGENIA/HOPPE/VBH/TECHWAY
-
Nylon Insulation Strip:
-
PA66-GF25
-
Window Sealing Strip:
-
EPDM
-
Surface Treatment:
-
Gema Switzerland
-
Color:
-
Customized Colors
|
Door material
|
Aluminum alloy
|
|
Aluminum thickness
|
1.2mm, 1.4mm, 1.6mm, 1.8mm, 2.0mm
|
|
Hardware
|
Australia, German, Chinese hardware
|
|
Surface Finishing
|
Powder coated
|
|
Color
|
white, grey, sliver, black...Will send color card for comfirmation
|
|
Glass
|
1. Double toughened glazing:5+12A+5,6+12A+6...
|
|
|
2. Single toughened glazing:6,8,10,12...
|
|
|
3. Laminated glazing:6.38,10.38, 10.76...
|
|
|
Low-e glazing,frosted/obscure glazing,grey/blue/green tinted glazing...
|
|
Door type
|
casement/folding/automatic/sliding glass door
|
|
Style
|
European-style doors, American-style of glass doors
|
|
Advantage
|
Safety, Easy to operate, Space saving, Good sealing&Water proof,
|
|
|
Scratch resistant and so on
|
|
Application
|
commercial place, balcony, exterior of house
|
Normal standard aluminum
Normal standard aluminum profile suits areas whose temperature is comparatively mind and not very hot in summer or too cold in winter.
Thermal break aluminum
Thermal break aluminum adds a nylon part to save energy, it can be sound proof by reducing 30db and keep house 12℃to 15℃in winter.
|
Insulation property
|
Air tightness Sound
|
insulation Water
|
tightness Wind
|
pressure resistance
|
daylighting
|
|
Level 7
|
Level 6
|
Level 3
|
Level 4
|
Level 6
|
Level 4
|
|
1.6<K<2.0W/(m2 k)
|
1.0≤q≤1.5m3 /(m2 h)
|
30≤Rw+Rc＜35dB
|
350≤△P＜400
|
3.5kpa≤P≤4.0kpa
|
0.5≤Tr≤0.6
|
Q: Are you a manufacturer or a trading company?
A: Gaoming Group is a manufacturer which have been specialized in glass deep-processing,glass windows and doors,curtain wall,glass house etc. for more than 20 years.
Q:How can I know your price?
A:The price is based on buyer's specific requirement, so please provide below information to help us quote exact price to you.
1) Shop drawing / window schedule to show the window dimensions, quantity and type;
2) Frame color;
3) Type of glass and thickness (single or double or laminated or others) and color (clear, tinted, reflective, Low-E or others, with Argon or without).
Q:What is the standard size of your windows and doors?
A:Our product is CUSTOMER MADE. We always manufacture windows and doors according to buyer's dimensions.
Q: What's your MOQ?
A: Our MOQ is 10 square meters, sample order is welcomed.
Q: Do you test all your products before delivery?
A: Yes, we have 100% test before delivery.
Q:What is your delivery time?
A: 20-35 days(according to your qty)after deposit and drawing confirmed
Q: What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.
