Quick Details
-
Place of Origin:
-
Shandong, China
-
Weight:
-
6
-
Usage:
-
agricultural machine
-
Certificate:
-
ISO16949
-
Material:
-
vermicular cast iron
-
Rated Pressure:
-
20mpa
-
Package:
-
Wooden Case
-
After Warranty Service:
-
Spare parts
-
After-sales Service Provided:
-
Online support
Quick Details
-
Warranty:
-
1 Year
-
Valve type:
-
Directional Control Valve
-
Brand Name:
-
Huasheng
-
Place of Origin:
-
Shandong, China
-
Weight:
-
6
-
Usage:
-
agricultural machine
-
Certificate:
-
ISO16949
-
Material:
-
vermicular cast iron
-
Rated Pressure:
-
20mpa
-
Package:
-
Wooden Case
-
After Warranty Service:
-
Spare parts
-
After-sales Service Provided:
-
Online support
Product Description
Benefits:

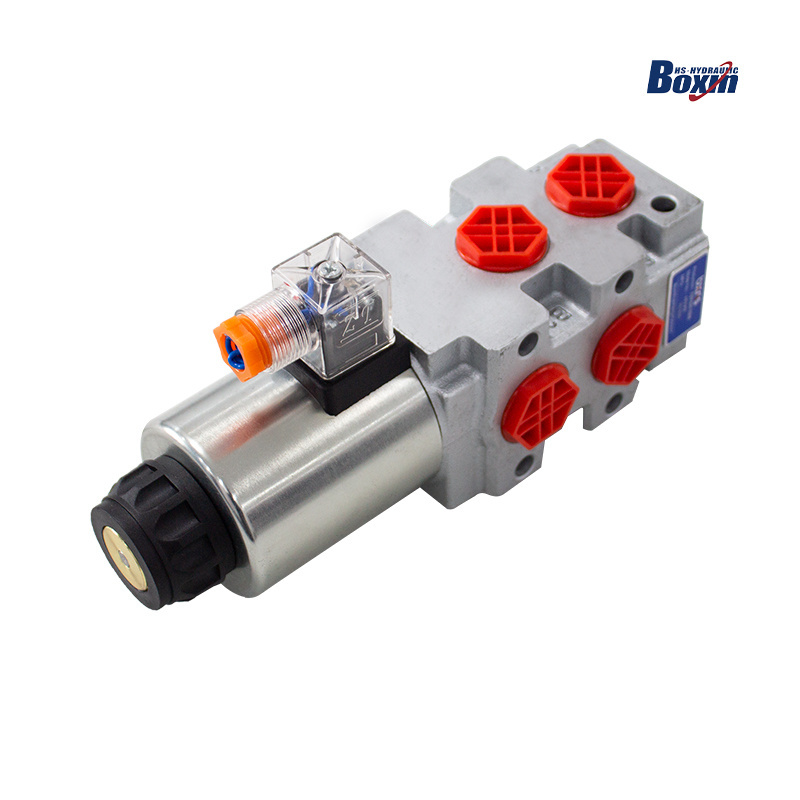

- This solenoid operated valve allows you to easily add another hydraulic circuit to your equipment.
- Works with Double or Single Acting Cylinders
- Can be used on Open, Closed or FPC hydraulic systems
- Stackable valves can be combined to add up to 3 additional functions
- #8 SAE O-Ring ports ensure solid seal and prevent blockages
Features:
- 12v DC
- DIN 43650 Connector (Sold Separately)
- 6 Ports with #8 SAE (3/4”-16) Thread
- Max Operating Pressure: 3625 PSI
- Flow Rating: 13 GPM
- Made in China
specification
|
Norminal Flow |
60L/min /90L/MIN |
|
Max Flow |
60L/min /90L/MIN |
|
Rated Pressure |
20Mpar |
|
Control Type |
|
| spool function |
/ |
| Circuit type | parallel |
| Structure | monoblock structure |
|
Spool stroke |
± 5mm |
|
Oil port customizable |
|
