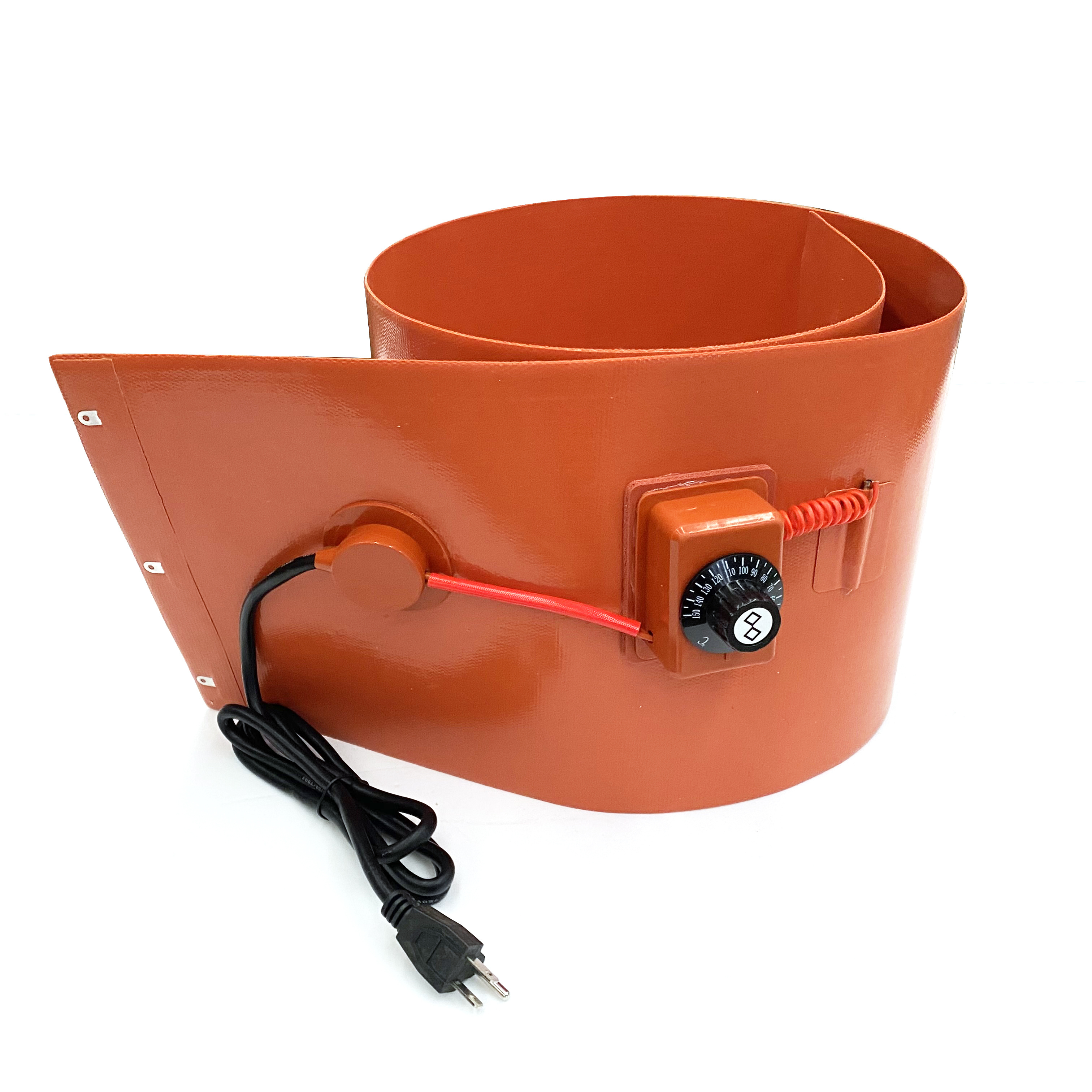

Silicone rubber heater is a kind of thin film which heats upon electrified, in a standard thickness of 1.5mm, Adopting nickel chrome wires or 0.05 mm~0.10mm thick nickel chrome foils etched to some certain shapes, the heating component is wrapped with heat conducting and insulating materials on both sides, and completed in high-temperature die forming and aging heat treatment. Due to its high reliability, the product is highly competitive when comparing with other electric heating film products which normally have paste materials such as graphite paste or resistor paste, etc. coated on insulation materials. As a kind of soft red film which can be applied closely on different curved surfaces, the silastic heater can be fabricated in varies shapes and powers.
|
lnsulation material temperature
|
250 ℃
|
|
The use temperature
|
200 ℃
|
|
Insulation resistance
|
≥5MΩ
|
|
Pressure strength
|
≥ AC1500V/5S
|
|
Power deviation
|
± 8%
|
|
Voltage range
|
1.5-380V
|
|
Unit power
|
1.5W / CM2
|
Note: the length can be customized according to customer requirements, the width is not more than 1.2 meters, if more than 1.2 meters can be spliced, size, voltage, power, and installation method can be customized according to customer needs.
|
Watt Density w/in2
|
Factory Vulcanized
|
PSA
|
|
5
|
420°F - 356°F
|
350°F - 335°F
|
|
10
|
356°F - 266°F
|
335°F - 248°F
|
|
15
|
266 - 158°F
|
248°F - 140°F
|
|
20
|
158 - 68°F
|
140°F - 32°F
|
|
25
|
40°F - 68°F
|
32°F - 49°F
|
Common Applications
* Condensation Prevention
* Freeze Protection
* Food Service
* Aerospace Industry
* Heated Platens
* Medical Services
* Semiconductor Industry
* Heating of Pipes
* Composite Curing
* Irregular Shapes
..
