- Product Details
- {{item.text}}
Quick Details
-
D/C:
-
NEW
-
Package:
-
NEW
-
Description:
-
module
-
Voltage - Breakdown:
-
other
-
Frequency - Switching:
-
other
-
Power (Watts):
-
other
-
Operating Temperature:
-
other
-
Mounting Type:
-
other
-
Voltage - Supply (Min):
-
other
-
Voltage - Supply (Max):
-
other
-
Voltage - Output:
-
other
-
Current - Output / Channel:
-
other
-
Frequency:
-
other
-
Applications:
-
other
-
FET Type:
-
other
-
Current - Output (Max):
-
other
-
Current - Supply:
-
other
-
Voltage - Supply:
-
other
-
Frequency - Max:
-
other
-
Power - Max:
-
other
-
Tolerance:
-
other
-
Function:
-
other
-
Voltage Supply - Internal:
-
other
-
Frequency - Cutoff or Center:
-
other
-
Current - Leakage (IS(off)) (Max):
-
other
-
Isolated Power:
-
other
-
Voltage - Isolation:
-
other
-
Current - Output High, Low:
-
other
-
Current - Peak Output:
-
other
-
Voltage - Forward (Vf) (Typ):
-
other
-
Current - DC Forward (If) (Max):
-
other
-
Input Type:
-
other
-
Output Type:
-
other
-
Current Transfer Ratio (Min):
-
other
-
Current Transfer Ratio (Max):
-
other
-
Voltage - Output (Max):
-
other
-
Voltage - Off State:
-
other
-
Static dV/dt (Min):
-
other
-
Current - LED Trigger (Ift) (Max):
-
other
-
Current - On State (It (RMS)) (Max):
-
other
-
Impedance:
-
other
-
Impedance - Unbalanced/Balanced:
-
other
-
LO Frequency:
-
other
-
RF Frequency:
-
other
-
Input Range:
-
other
-
Output Power:
-
other
-
Frequency Bands (Low / High):
-
other
-
Specifications:
-
other
-
Size / Dimension:
-
other
-
Modulation or Protocol:
-
other
-
Interface:
-
other
-
Power - Output:
-
other
-
Memory Size:
-
other
-
Protocol:
-
other
-
Modulation:
-
other
-
Serial Interfaces:
-
other
-
GPIO:
-
other
-
Utilized IC / Part:
-
other
-
Standards:
-
other
-
Style:
-
other
-
Memory Type:
-
other
-
Writable Memory:
-
other
-
Resistance (Ohms):
-
other
-
Cross Reference:
-
other
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
LONTEN
-
Model Number:
-
other
-
D/C:
-
NEW
-
Package:
-
NEW
-
Description:
-
module
-
Voltage - Breakdown:
-
other
-
Frequency - Switching:
-
other
-
Power (Watts):
-
other
-
Operating Temperature:
-
other
-
Mounting Type:
-
other
-
Voltage - Supply (Min):
-
other
-
Voltage - Supply (Max):
-
other
-
Voltage - Output:
-
other
-
Current - Output / Channel:
-
other
-
Frequency:
-
other
-
Applications:
-
other
-
FET Type:
-
other
-
Current - Output (Max):
-
other
-
Current - Supply:
-
other
-
Voltage - Supply:
-
other
-
Frequency - Max:
-
other
-
Power - Max:
-
other
-
Tolerance:
-
other
-
Function:
-
other
-
Voltage Supply - Internal:
-
other
-
Frequency - Cutoff or Center:
-
other
-
Current - Leakage (IS(off)) (Max):
-
other
-
Isolated Power:
-
other
-
Voltage - Isolation:
-
other
-
Current - Output High, Low:
-
other
-
Current - Peak Output:
-
other
-
Voltage - Forward (Vf) (Typ):
-
other
-
Current - DC Forward (If) (Max):
-
other
-
Input Type:
-
other
-
Output Type:
-
other
-
Current Transfer Ratio (Min):
-
other
-
Current Transfer Ratio (Max):
-
other
-
Voltage - Output (Max):
-
other
-
Voltage - Off State:
-
other
-
Static dV/dt (Min):
-
other
-
Current - LED Trigger (Ift) (Max):
-
other
-
Current - On State (It (RMS)) (Max):
-
other
-
Impedance:
-
other
-
Impedance - Unbalanced/Balanced:
-
other
-
LO Frequency:
-
other
-
RF Frequency:
-
other
-
Input Range:
-
other
-
Output Power:
-
other
-
Frequency Bands (Low / High):
-
other
-
Specifications:
-
other
-
Size / Dimension:
-
other
-
Modulation or Protocol:
-
other
-
Interface:
-
other
-
Power - Output:
-
other
-
Memory Size:
-
other
-
Protocol:
-
other
-
Modulation:
-
other
-
Serial Interfaces:
-
other
-
GPIO:
-
other
-
Utilized IC / Part:
-
other
-
Standards:
-
other
-
Style:
-
other
-
Memory Type:
-
other
-
Writable Memory:
-
other
-
Resistance (Ohms):
-
other
-
Cross Reference:
-
other

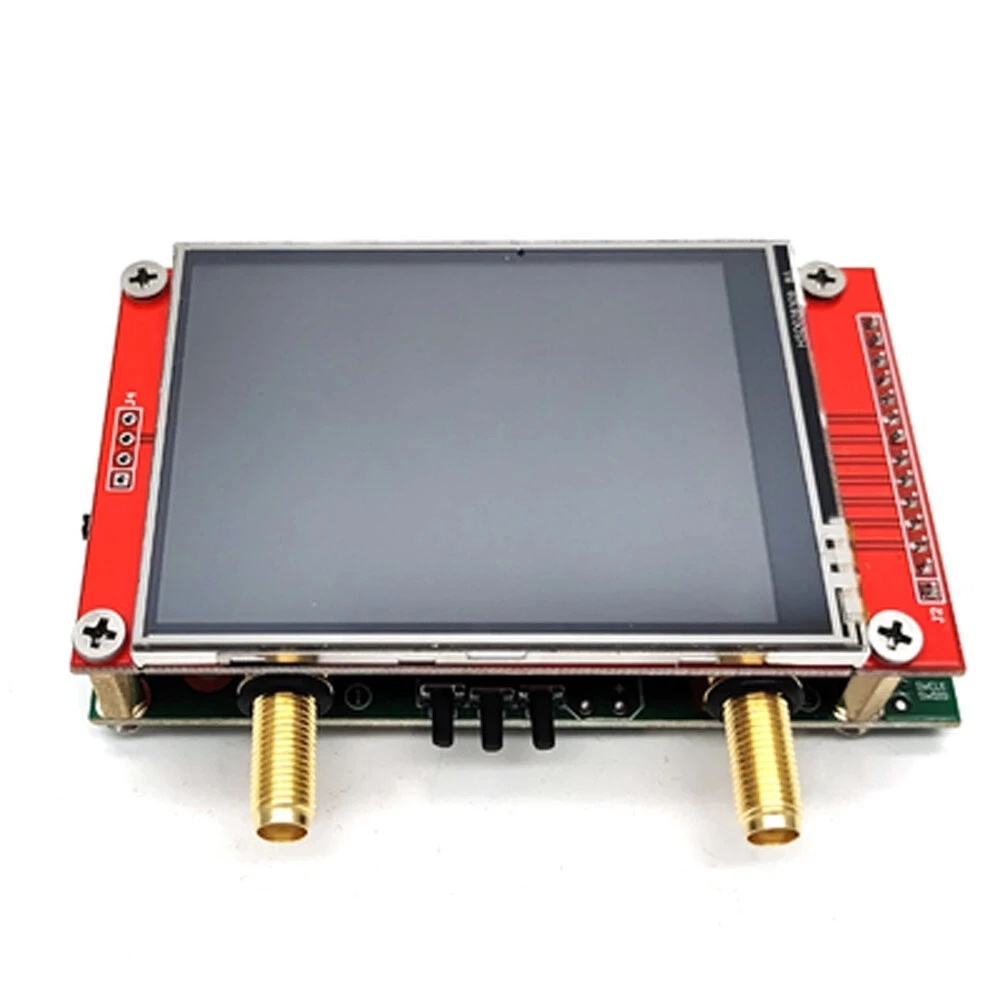

Features:
Made of fine quality material, practical, has a long service life.
Portable and compact, easy to operate and carry.
2.8 inch TFT LCD touching screen display.
Measurement frequency range is 50KHz~3GHz.
High stability, high sensitivity, high accuracy, greatly improved performance.
Specifications:
Main material: PCB
Main color: red
Measurement frequency range: 50KHz-3GHz
System dynamic range (after calibration): 70dB (50k to 1.5GHz); 60dB (up to 3GHz)
S11 noise floor (after calibration): -50dB (up to 1.5GHz); -40dB (up to 3GHz)
Sweep rate: 100 points / second
Sweep points (on device): 10-201 points, adjustable
Sweep points (USB): 1-1024 points, adjustable
Power supply: USB, 4.6V–5.5V
RF port: SMA
USB interface: Micro USB
Display screen: 2.8-inch TFT (320 * 240)
Battery: not included. Includes charging circuitry. User can install a 1000mAh-1800mAh 3.6V / 3.7V lithium battery with maximum
dimensions 6 * 40 * 60mm.
Battery connector: JST-XH 2.54mm
Port 2 return loss: ≥13dB (up to 3GHz), 20dB (up to 1.5GHz)
Display tracking: 4, Marking: 4, Setting save: 5
Operating ambient temperature: 0-45℃
Package size: 100 * 70 * 25mm / 3.9 * 2.8 * 1.0in
Package weight: 120g / 4.2ounce
Note:
1. Recommended SMA cable: SS405, RG316, or RG405.
2. VNA-QT software download: https://github.com/nanovna/NanoVNA-QT/releases
3. User guide: https://github.com/nanovna/NanoVNA-QT/r-a-w/master/ug1101.pdf
Packing List:
Type A: 1 * Vector Network Analyzer
Type B: 1 * Vector Network Analyzer 2 * Cable 4 * Calibration piece 1 * Housing
Made of fine quality material, practical, has a long service life.
Portable and compact, easy to operate and carry.
2.8 inch TFT LCD touching screen display.
Measurement frequency range is 50KHz~3GHz.
High stability, high sensitivity, high accuracy, greatly improved performance.
Specifications:
Main material: PCB
Main color: red
Measurement frequency range: 50KHz-3GHz
System dynamic range (after calibration): 70dB (50k to 1.5GHz); 60dB (up to 3GHz)
S11 noise floor (after calibration): -50dB (up to 1.5GHz); -40dB (up to 3GHz)
Sweep rate: 100 points / second
Sweep points (on device): 10-201 points, adjustable
Sweep points (USB): 1-1024 points, adjustable
Power supply: USB, 4.6V–5.5V
RF port: SMA
USB interface: Micro USB
Display screen: 2.8-inch TFT (320 * 240)
Battery: not included. Includes charging circuitry. User can install a 1000mAh-1800mAh 3.6V / 3.7V lithium battery with maximum
dimensions 6 * 40 * 60mm.
Battery connector: JST-XH 2.54mm
Port 2 return loss: ≥13dB (up to 3GHz), 20dB (up to 1.5GHz)
Display tracking: 4, Marking: 4, Setting save: 5
Operating ambient temperature: 0-45℃
Package size: 100 * 70 * 25mm / 3.9 * 2.8 * 1.0in
Package weight: 120g / 4.2ounce
Note:
1. Recommended SMA cable: SS405, RG316, or RG405.
2. VNA-QT software download: https://github.com/nanovna/NanoVNA-QT/releases
3. User guide: https://github.com/nanovna/NanoVNA-QT/r-a-w/master/ug1101.pdf
Packing List:
Type A: 1 * Vector Network Analyzer
Type B: 1 * Vector Network Analyzer 2 * Cable 4 * Calibration piece 1 * Housing
|
|
|
|
|
|
||||
|
|
|
|
|
|
||||
|
|
|
|
|
|
||||
|
|
|
|
|
|
||||
