Quick Details
-
Application:
-
Mortar cement putty spraying
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
YUGONG
-
Dimension(L*W*H):
-
1650*750*1100MM
-
Weight:
-
380 kg
-
Power:
-
7.5KW+3KW
-
Product Name:
-

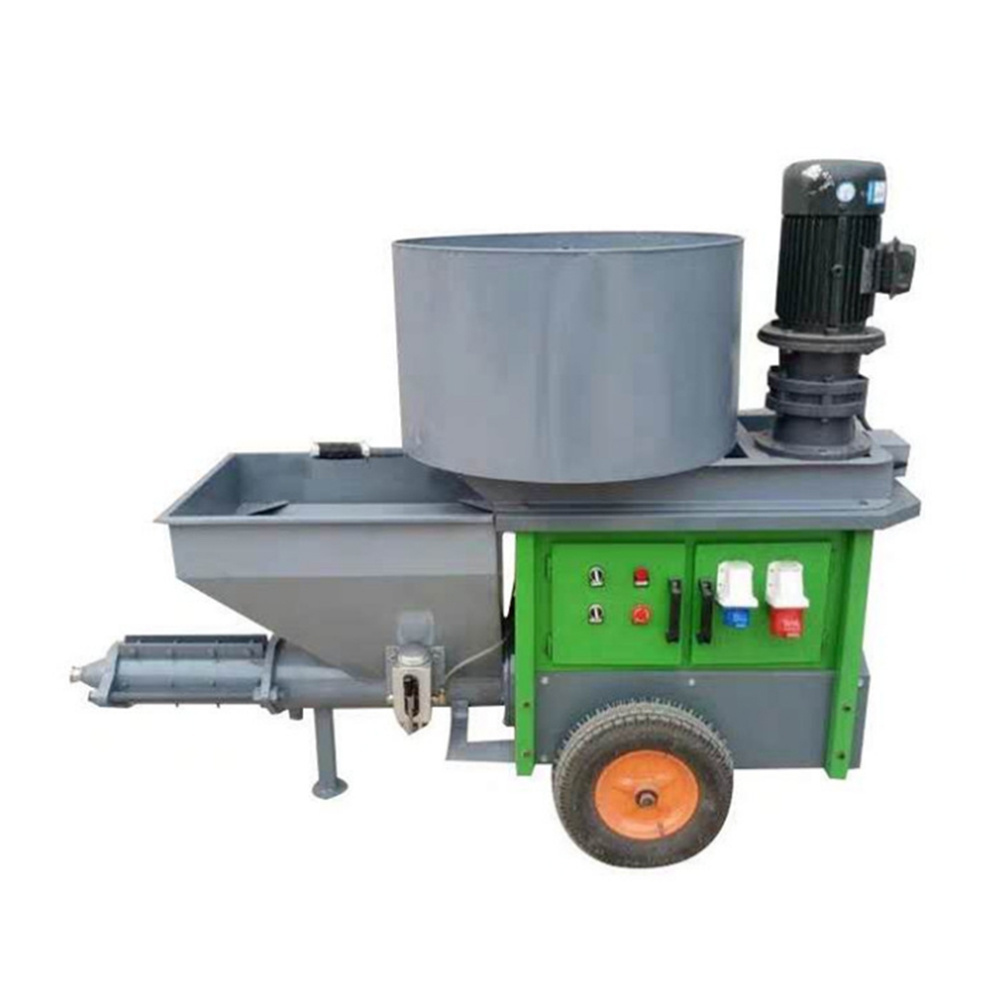

new type cement electric motor concrete spraying machine
-
Volume:
-
100L
-
Particle Diameter:
-
Below 6mm
-
Transmission Distance:
-
Horizontal 50m Vertical 30m
-
Air Compressor Exhaust:
-
4m3/h
-
Pressure:
-
6MPa
-
Main Motor Power:
-
7.5kw+3KW
-
Applicable Material Ratio:
-
0.7-1:1:3
-
Color:
-
Customizable
-
MOQ:
-
1Set
Quick Details
-
Max. vertical conveying distance:
-
30M
-
Max. horizontal conveying distance:
-
50M
-
Hopper Capacity:
-
100L
-
Application:
-
Mortar cement putty spraying
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
YUGONG
-
Dimension(L*W*H):
-
1650*750*1100MM
-
Weight:
-
380 kg
-
Power:
-
7.5KW+3KW
-
Product Name:
-
new type cement electric motor concrete spraying machine
-
Volume:
-
100L
-
Particle Diameter:
-
Below 6mm
-
Transmission Distance:
-
Horizontal 50m Vertical 30m
-
Air Compressor Exhaust:
-
4m3/h
-
Pressure:
-
6MPa
-
Main Motor Power:
-
7.5kw+3KW
-
Applicable Material Ratio:
-
0.7-1:1:3
-
Color:
-
Customizable
-
MOQ:
-
1Set
Good performance cement mortar plastering spraying machine
Product Description
|
Model
|
YG-311
|
YG-318
|
YG-711
|
|
Capacity
|
3m³/h
|
3-5m³/h
|
4-6m³/h
|
|
Pressure
|
3 Mpa
|
3 Mpa
|
3 Mpa
|
|
Material Ratio
|
0.7-1:1:3 (Water,Ash,Sand)
|
0.7-1:1:3 (Water,Ash,Sand)
|
0.7-1:1:3 (Water,Ash,Sand)
|
|
Voltage
|
220V/380V ， 50Hz
|
380V three-phase 50Hz
|
380V three-phase 50Hz
|
|
Main Motor Power
|
4kw
|
7.5kw
|
7.5kw
|
|
Particle Size
|
Below 4mm
|
Below 8mm
|
Below 8mm
|
|
Convey Distance
|
Horizontal 30m
|
Horizontal 50m
|
Horizontal 50m
|
|
|
Vertical 20m
|
Vertical 30m
|
Vertical 30m
|
|
Volume
|
60L
|
80L
|
100L
|
|
Air Consumption
|
0.3m³/min
|
0.3m³/min
|
0.3m³/min
|
|
Weight
|
200kg
|
320kg
|
340kg
|
