Quick Details
-
Market Segement:
-
Highway transportatopn
-
Engine Capacity:
-
< 4L
-
Gross Vehicle Weight:
-
6290
-
Drive Wheel:
-
4X2
-
After-sales Service Provided:
-
Onsite Installation, Video technical support, Overseas Call Centers, Return and Replacement, Field installation, commissioning and training, Online support, Free spare parts, Field maintenance and repair service, Shop warranty
-
Brand Name:
-
FOTON
-
Place of Origin:
-
Guangdong, China
-
Dimensions (L x W x H) (mm):
-
5085x2010x2290
-
Cargo Tank Dimension:
-
standard
-
Color:
-
Blue,white
-
Engine model:
-
4100QB
-
Rated power:
-
58.8kw/80hp
-
Bucket dimension:
-
3200x1910x360mm
-
Max.speed:
-
90km/h
-
Loading capacity:
-
1-5 tons
Quick Details
-
Condition:
-
New
-
Horsepower:
-
80hp
-
Emission Standard:
-
Euro 2
-
Market Segement:
-
Highway transportatopn
-
Engine Capacity:
-
< 4L
-
Gross Vehicle Weight:
-
6290
-
Drive Wheel:
-
4X2
-
After-sales Service Provided:
-
Onsite Installation, Video technical support, Overseas Call Centers, Return and Replacement, Field installation, commissioning and training, Online support, Free spare parts, Field maintenance and repair service, Shop warranty
-
Brand Name:
-
FOTON
-
Place of Origin:
-
Guangdong, China
-
Dimensions (L x W x H) (mm):
-
5085x2010x2290
-
Cargo Tank Dimension:
-
standard
-
Color:
-
Blue,white
-
Engine model:
-
4100QB
-
Rated power:
-
58.8kw/80hp
-
Bucket dimension:
-
3200x1910x360mm
-
Max.speed:
-
90km/h
-
Loading capacity:
-
1-5 tons

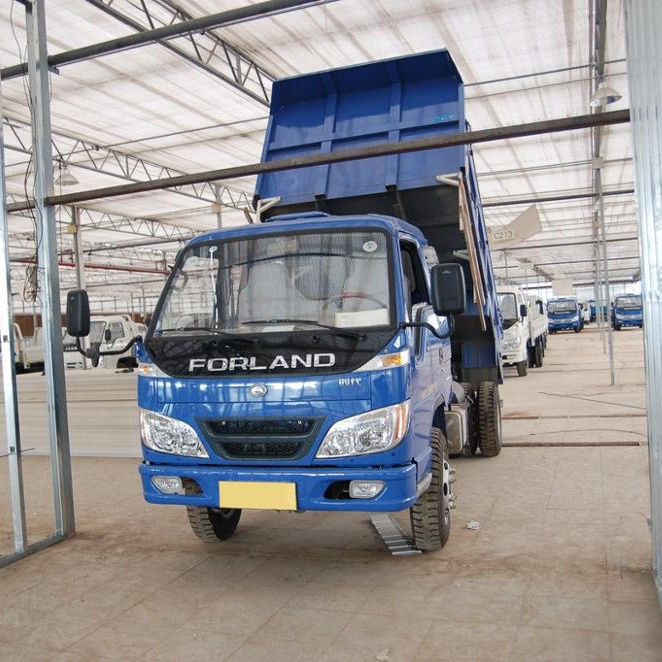

Foton Forland Small Tipper Truck 4x2 Mini 2 ton Dump Trucks for sale
1. Foton mini dump truck for sale
2. 2 ton 3 ton loading capacity small tipper dump truck
3. Foton forland truck price
|
Production line |
||
|
Vehicle model |
1P69AJ4100(BA) |
|
|
Vehicle number |
5820-1A00000Z002 |
|
|
Emission Standard |
Euro I |
|
|
Cabin |
1-1/2 row tiltable/1695(mm) |
|
|
Whole vehicle main dimensions |
Overall dimensions (LxWxH)mm |
5085×2010×2290 |
|
Inner dimensions of the cargo body (LxWxH)mm |
3200×1910×360(1.2*1.2) |
|
|
Driving type |
4×2 |
|
|
Wheel base(mm) |
2600 |
|
|
Wheel track (front/rear)(mm) |
1450/1530 |
|
|
Weight data |
Curb weight(kg) |
2290 |
|
Rated payload(kg) |
4000 |
|
|
Max payload(kg) |
5000 |
|
|
Persons in cab(persons) |
2 |
|
|
Gross vehicle weight(kg) |
6290 |
|
|
Whole vehicle main performance |
Max. speed(km/h) |
95 |
|
Max. slope of climb(%) |
≥25 |
|
|
Engine |
Model |
4100QB |
|
engine type |
4 - cylinders, in-line, water-cooling, direct injection type diesel engine |
|
|
Displacement(L) |
3.298 |
|
|
Rated Power(kw) |
58.8 |
|
|
Gearbox |
Model |
17C28 |
|
Speed ratio |
I1:5.568;I2:2.986;I3:1.685; I4:1.000;I5:0.789;IR:5.011 |
|
|
Clutch |
Type |
Diaphragm clutch,255 |
|
Rear axle |
Type/Main reducer ratio |
1046/5.571 |
|
Steering gear |
power steering |
|
|
Brake system |
Service brake |
Hydraulic braking system |
|
Parking brake |
pneumatic brake |
|
|
Auxiliary brake |
Exhaust braking |
|
|
Tyre size |
6.50-16 |
|
|
Jack Type |
/ |
|
|
Electric device |
Rated voltage |
24V |
|
Basic equipment |
||
|
FOB Shanghai Port |
$7, 2 00 |
|
|
CIF DJEN DJEN PORT, ALGERIA |
||
Usually Our Truck can be shipped by Ro-ro ship or Bulk ship or Container or Flat rack.
Packing Detail: Ro-Ro or Bulk base on the ship and port in your country. If the truck on the deck, we will spray antirust paint with free. Usually we will put the truck in cabin of the ship.
Delivery Details: 15-35 days after receiving 30% deposit
Shiping Pictures:
