Quick Details
-
Cooling Capacity:
-
3ton
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Koller
-
Voltage:
-
380V 50HZ / 220V 60HZ
-
Power:
-
1500w
-
Dimension(L*W*H):
-
2500mm*2000mm*2200mm
-
Weight:
-
600 KG
-
Warranty:
-
12 months
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Application:
-
Frozen meat/fish/foods/vegetables/ice
-
Size:
-
can be customized according to your demands
-
Cooling way:
-
air cooler
-
Compressor:
-
Copeland / Bitzer / Refcomp
-
Control system:
-
electrical control box
-
Density:
-
42kg/m3
-
Refrigerant:
-
R404A
-
Marketing Type:
-
Hot Product 2020
Quick Details
-
Temperature:
-
-5 ~ -25, 5℃~ -25℃
-
Compressor brand:
-
Copeland, Bitzer, Other, Refcomp
-
Panel Thickness:
-
100mm, 200mm, 120mm, 75mm, Other, 150mm
-
Cooling Capacity:
-
3ton
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Koller
-
Voltage:
-
380V 50HZ / 220V 60HZ
-
Power:
-
1500w
-
Dimension(L*W*H):
-
2500mm*2000mm*2200mm
-
Weight:
-
600 KG
-
Warranty:
-
12 months
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Application:
-
Frozen meat/fish/foods/vegetables/ice
-
Size:
-
can be customized according to your demands
-
Cooling way:
-
air cooler
-
Compressor:
-
Copeland / Bitzer / Refcomp
-
Control system:
-
electrical control box
-
Density:
-
42kg/m3
-
Refrigerant:
-
R404A
-
Marketing Type:
-
Hot Product 2020

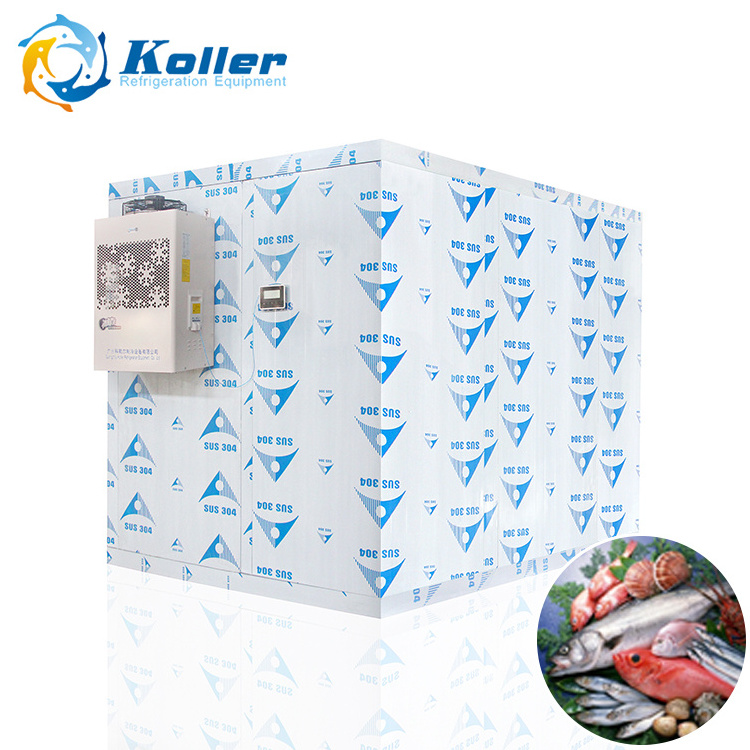

Koller Wall Cold Room Panels & Walk in Freezer for Storage
1. Cold room is consisted of four parts including Air Cooled Compressor Unit, Air cooler, Electrical Control Box and Polyurethane Insulation Panels.
2. The polyurethane cold storage board is foamed by high pressure mould and the temperature could be coordinated between -5degree and -20degree ,even can coordinate to -25degree.we also can load 5-100tons various food.
Chiller or cooler : 5℃ --25℃ (store for flowers ,fruits ,milk,fish and vegetable)
Refrigerator: -5℃--15℃(store for ice )
Freezer: -15℃to -25℃
3. The cold room is foamed by polyurethane with 100mm thickness, its double surface material is colorbond painted steel , the density is 42kg/m3,we use split type design for the cold room ,which has better refrigeration performance.
4. It is equipped with full automatic intelligent control with temperature setting, temperature controlling , and automatic defrosting such functions.meanwhile, it can control temperature accurately and low energy.
5.The storing time is very long, with high economic efficiency, easy to operate and repair. It is safe and reliable and no need for person to monitor.
Model |
Capacity (Tons/24hrs) |
Compressor Power | Compressor Brand | Refrigerant | Temperature | Size (mm) (L*W*H) |
VCR10 | 3 | 1 |
Copeland/ Bitzer/ Refcomp |
R404A | -60℃~5℃ | 2500*2000*2200 |
VCR20 | 6 | 2 | 3000*3000*2300 | |||
VCR30 | 9 | 3 | 40 00* 3 000*2 5 00 | |||
VCR40 | 12 | 3 | 40 00* 4 000*2 5 00 | |||
VCR50 | 15 | 4 | 50 00* 4 000*2 5 00 | |||
VCR60 | 18 | 4 | 60 00* 4 000*2 5 00 | |||
VCR80 | 24 | 5 | 80 00* 4 000*2 5 00 | |||
VCR100 | 30 | 6 | 80 00* 5 000*2 5 00 | |||
VCR150 | 45 | 8 | 100 00* 5 000*2 5 00 | |||
VCR200 | 60 | 9 | 100 00* 66 000*30 00 |
* Power supply: 380V/50Hz(60Hz)/3P; 220V(230V)/50Hz/1P; 220V/60Hz/3P(1P); 415V/50Hz/3P;
440V/60Hz/3P.
* The cold room size can be customized according to your need.
* The above data is subjected to the final design withou notice.
