Quick Details
-
Jacket:
-
PVC
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
RUITIAN or OEM
-
Model Number:
-
Power Cable
-
Product name:
-
Copper Armoured Power Cable
-
Certificate:
-
CE/ISO/OHSAS/CCC
-
Insulation:
-
XLPE PE PVC
-
Standard:
-
IEC60502
Quick Details
-
Insulation Material:
-
XLPE OR PVC
-
Application:
-
Underground
-
Conductor Material:
-
Copper
-
Jacket:
-
PVC
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
RUITIAN or OEM
-
Model Number:
-
Power Cable
-
Product name:
-
Copper Armoured Power Cable
-
Certificate:
-
CE/ISO/OHSAS/CCC
-
Insulation:
-
XLPE PE PVC
-
Standard:
-
IEC60502

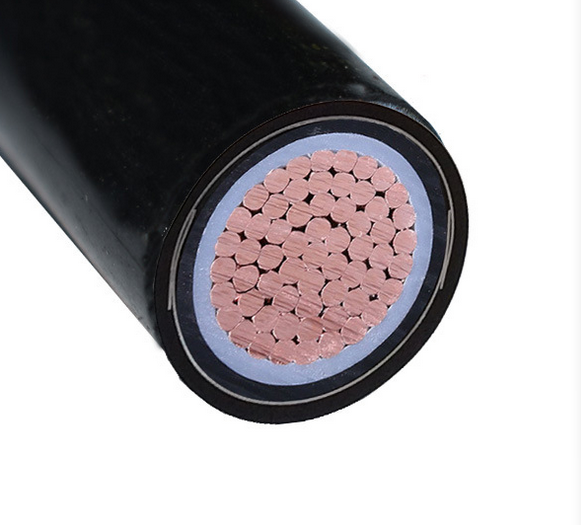

YJV 4C 70mm2 240mm2 95 sqmm 35 Core Copper Armoured XLPE PVC Power Cable For Construction
1. Standard
IEC 60502, 60228, 60332, 60331
DIN VDE 0276-620
HD 620 S1: 1996
DIN EN 60228 class 2 (construction)
2. Application
This cable is used for fixed installations, such as distrubution networks or industrial installations. It can be installed in
cable duct, trench or directly buried in earth.
3. Product Description
1) Rated Voltage: 0.6/1KV 3.6/6KV 6.5/11KV, 11KV, 33KV, 66KV, 132KV
2) Max. working temperature: 90 °c
3) Max. temperature during short circuit (≤5S): 250 °c
4) Conductor: class 1, 2 copper or aluminum
5) Sectional area: 25 - 630mm2
6) Insulation: XLPE
7) No. of cores: 1, 3
8) Armor: steel wire or steel tape for 3 core cables and non-magnetic material for single core
9) Oversheath: PVC
10) Min. beding radius: 15 times cable radius for single-core cables and 12 times for multi-core ones
11) Max. conductor DC resistance at 20°c:
|
Model |
Name |
Application site |
Section area |
Cores |
Rate voltag |
|
VV |
Copper Conductor PVC insulated PVC sheathed power cable |
Indoors, in tunnel or cable trench, unable to bear external mechanical forces. Single-core cables laid in magnetic ducts are not allowed . |
10 16 25 35 50 70 95 120 150 185 240 300 400 |
1 2 3 4 5 3+1 4+1 3+2 |
0.6/1kv 8.7/15kv 12/20kv 18/30kv 21/35kv |
|
VLV |
Aluminum Conductor PVC insulated PVC sheathed power cable |
||||
|
YJV |
Copper Conductor XLPE insulated PVC sheathed power cable |
||||
|
YJLV |
Aluminum Conductor XLPE insulated PVC sheathed power cable |
||||
|
YJY |
Copper Conductor XLPE insulated PE sheathed power cable |
||||
|
YJLY |
Aluminum Conductor XLPE insulated PE sheathed power cable |
||||
|
VV22 |
Copper Conductor PVC insulated steel tape armored PVC sheathed power cable |
Indoor, tunnel, cable trench or underground laying, able to bear external mechanical forces, but can not afford a big pull. |
|||
|
VLV22 |
Aluminum Conductor PVC insulated steel tape armored PVC sheathed power cable |
||||
|
YJV22 |
Copper Conductor XLPE insulated steel tape armored PVC sheathed power cable |
||||
|
YJLV22 |
Aluminum Conductor XLPE insulated steel tape armored PVC sheathed power cable |
||||
|
YJV23 |
Copper Conductor XLPE insulated steel tape armored P E sheathed power cable |
||||
|
YJLV23 |
Aluminum Conductor XLPE insulated steel tape armored PE sheathed power cable |
||||
|
VV32 |
Copper Conductor PVC insulated steel wire armored PVC sheathed power cable |
Indoors, in tunnel, cable trench, well or burying, able to bear external mechanical forces and a certain tension. |
|||
|
VLV32 |
Aluminum Conductor PVC insulated steel wire armored PVC sheathed power cable |
||||
|
YJV32 |
Copper Conductor XLPE insulated steel wire armored PVC sheathed power cable |
||||
|
YJLV32 |
Aluminum Conductor XLPE insulated steel wire armored PVC sheathed power cable |
||||
|
YJV33 |
Copper Conductor XLPE insulated steel wire armored PE sheathed power cable |
||||
|
YJLV33 |
Aluminum Conductor XLPE insulated steel wire armored PE sheathed power cable |
1).When can I get the price?
We usually quote within 6 hours after we get your inquiry. If you are very urgent to get the price, pleasecall us or tell us in your e-mail so that we will regard your inquiry priority.
(2).How can I get a sample to check your quality?
After price confirmation, you can require for samples to check our quality. Sample is free, but the freight charge should be paid.
(3).How long can I expect to get the sample?
After you pay the freight charge and send us confirmed files,the samples will be ready for delivery in 37 days. The samples will be sent to you via express and arrive in 3~5 days. You can use your own express account orprepay us if you do not have an account.
(4).What about the lead time for mass production?
Honestly, it depends on the order quantity and the season you place the order.The best record we keep is delivering 10 kilometers cable within a week. Generally speaking, we suggest that you start inquiry two months before the date you would like to get the products at your country.
