Quick Details
-
Output Current:
-
200A
-
Output Power:
-
400kWh/200KW
-
Input Voltage:
-
DC200~1000V
-
Nominal Voltage:
-
652.8V
-
Weight:
-
3600kg
-
Dimension:
-
2300*1500*1300mm
-
Cycle life:
-
≥80%,after 5000 cycles
-
Input/Output AC:
-
230/415VAC,64A,3P
-
BMS communication protocol:
-
RS232/485/CAN
-
Input(DC):
-
CCS1/CCS2/CHAdeMO DC100KW
-
Output 1(DC):
-
CCS1/CCS2/CHAdeMO DC100KW
-
Output 2 (DC):
-
CCS1/CCS2/CHAdeMO DC100KW
-
Charging time(H):
-
2h(0.33C)
Quick Details
-
Place of Origin:
-
Huizhou
-
Brand Name:
-
Life-Younger
-
Interface Standard:
-
CCS CHAdeMO
-
Output Current:
-
200A
-
Output Power:
-
400kWh/200KW
-
Input Voltage:
-
DC200~1000V
-
Nominal Voltage:
-
652.8V
-
Weight:
-
3600kg
-
Dimension:
-
2300*1500*1300mm
-
Cycle life:
-
≥80%,after 5000 cycles
-
Input/Output AC:
-
230/415VAC,64A,3P
-
BMS communication protocol:
-
RS232/485/CAN
-
Input(DC):
-
CCS1/CCS2/CHAdeMO DC100KW
-
Output 1(DC):
-
CCS1/CCS2/CHAdeMO DC100KW
-
Output 2 (DC):
-
CCS1/CCS2/CHAdeMO DC100KW
-
Charging time(H):
-
2h(0.33C)
Products Description

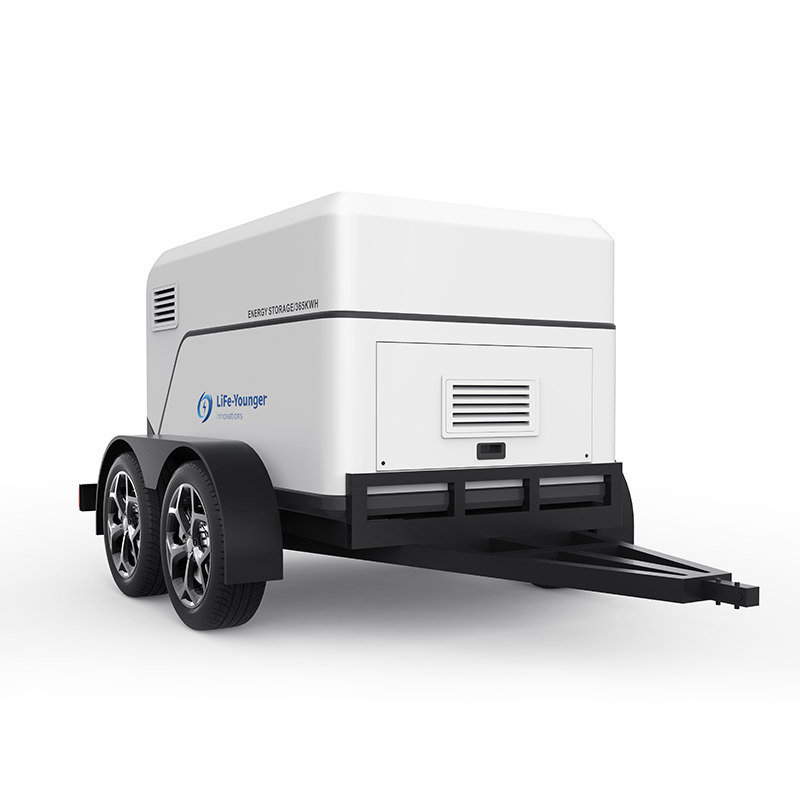

Details Images
Product Paramenters
|
Category
|
Item
|
Technical Parameters
|
|
BES
|
Battery Pack Capacity
|
400kWh
|
|
|
Battery Pack Voltage
|
652.8V
|
|
|
Cell Capacity
|
304Ah
|
|
BES
|
Grouping Mode
|
(C box* 4 + G box *2) *2
|
|
|
How the System is Combined
|
2O4S1P*2
|
|
|
Maximum Vehicle Charging Current
|
300A (Recommended)
|
|
|
Battery Pack Top-up Cut-off Current
|
50A
|
|
|
Battery Pack Discharge Cut-off Voltage
|
510V
|
|
Charging Gun Parameters
|
Charging Cable(l)Output Power
|
100KW cable length 5 meters
(CCS2/CCS1 interface optional)
|
|
|
Charging Cable(2)Output Power
|
|
|
Charging Gun Parameters
|
Charging Gun Output Current
|
0-200A
|
|
|
Charging Cable Output Voltage Range (Vdc)
|
200〜1000
|
|
|
|
|
|
|
Communication Protocol
|
OCPP1.6J
|
|
DC Input
|
Energy Storage DC Energy Replenishment Method
|
200A (CCS1, CCS2 Charging base optional)
|
|
AC Output
|
Alternating Current Output
|
150kW (Industrial socket 63*3;125*1)
|
|
AC Input
|
Energy Storage AC Replenishment Mode
|
63A (Industrial Socket)
|
|
Basic
Parameters
|
Operating Temperature Range (°C)
|
-10 〜60
|
|
|
Storage Temperature Range (°C)
|
0〜40
|
|
|
Storage Ambient Humidity (RH)
|
5% 〜95%
|
|
|
Working Environment Humidity (RH)
|
W85%
|
|
|
Degree of Protection
|
IP54/Energy storage IP67
|
|
|
Cycle Life
|
N5000Times (90%DOD,>80EOL)
|
|
|
Thermal Management
|
Liquid cooling
|
|
|
HMI
|
15-inch touchscreen
|
|
|
Size(L*W*H)
|
2300*1500*1300 mm
|
|
|
Weight
|
3600Kg
|
|
|
Housing Material
|
Sheet metal
|
|
|
Anti-Corrosion Rating
|
C4
|
|
|
Authentication
|
IEC62619 UN38.3
|
