- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
CLIR
-
Model Number:
-
PA24C
-
Output Frequency:
-
50/60Hz
-
Output Current:
-
30A, 30A
-
Product Name:
-

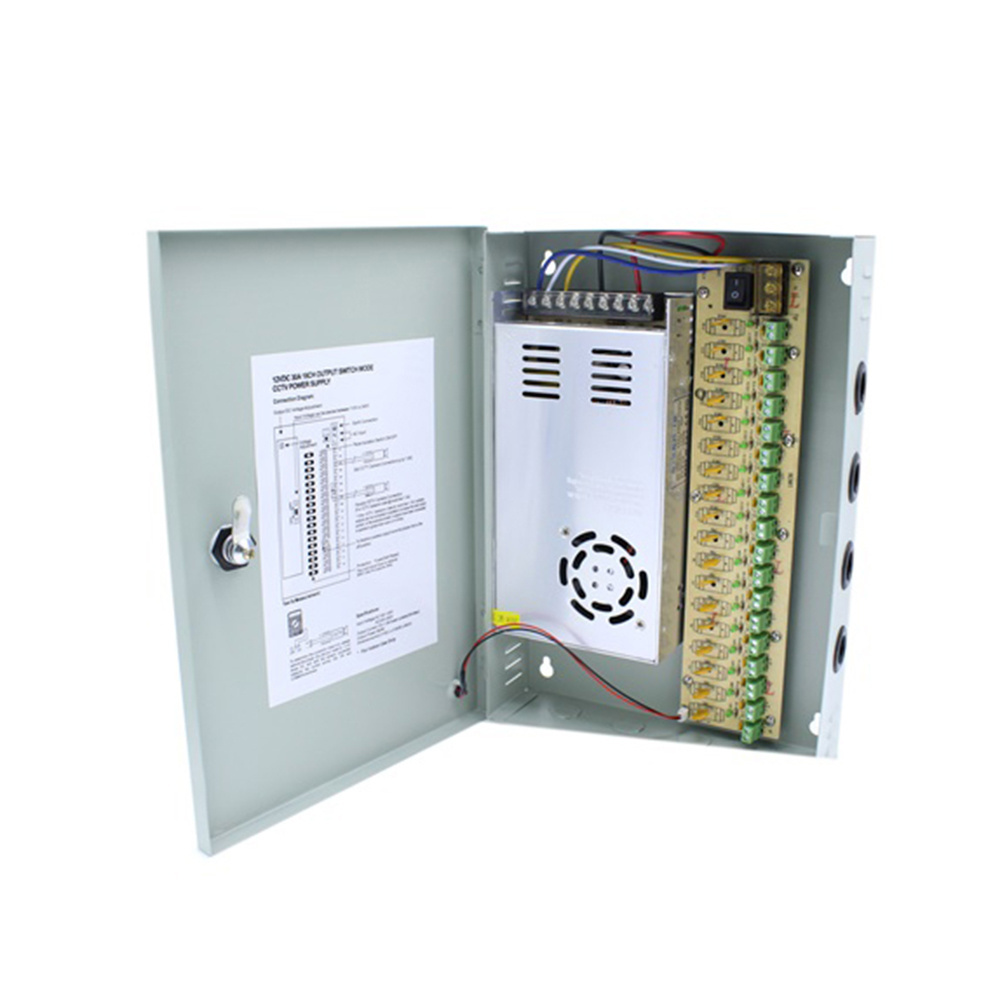

CCTV Power Supply Box
-
Channel:
-
18ch
-
Type:
-
CCTV power supply
-
Input Voltage::
-
100-240V AC
-
Output Frequency::
-
50/60HZ
-
SIZE:
-
31*21*6CM
-
WEIGHT:
-
2KG
-
Certificate:
-
CE
Quick Details
-
Input Voltage:
-
AC100-240V
-
Output Voltage:
-
12V
-
Place of Origin:
-
China
-
Brand Name:
-
CLIR
-
Model Number:
-
PA24C
-
Output Frequency:
-
50/60Hz
-
Output Current:
-
30A, 30A
-
Product Name:
-
CCTV Power Supply Box
-
Channel:
-
18ch
-
Type:
-
CCTV power supply
-
Input Voltage::
-
100-240V AC
-
Output Frequency::
-
50/60HZ
-
SIZE:
-
31*21*6CM
-
WEIGHT:
-
2KG
-
Certificate:
-
CE
Product Description
Specification
|
Model
|
PA34
|
|
Output DC Voltage
|
12V
|
|
Rated Current
|
30A
|
|
Current Range
|
0-30A
|
|
Rated Power
|
360W
|
|
Ripple & Noise
|
≤100 mVp-p
|
|
Setup Rise Time
|
≤50ms
|
|
Voltage Regulation
|
≤0.5%
|
|
Load Regulation
|
≤1%
|
|
Input Voltage Range
|
110-260V
|
|
Input Frequency Range
|
47～63Hz
|
|
Input undervoltage protection
|
115～150％Intermittent mode
|
|
Input undervoltage recovery
|
auto
|
|
Input over voltage protection
|
115～150％Intermittent mode
|
|
Input over voltage recovery
|
auto
|
|
Electric shock
|
≤1%
|
|
Efficiency
|
≤0.5%
|
|
Setup Rise Time
|
≤50ms
|
|
Overload
|
Current drooping
|
|
Over Voltage
|
Soft start protection
|
|
Short Circuit Protection
|
IGBT
|
|
Input to output resistance
|
＞30MΩ
|
|
Input to ground resistance
|
＞30MΩ
|
|
Output to ground resistance
|
＞30MΩ
|
|
Insulation resistance
|
＞50MΩ
|
|
MTBF
|
100,000H
|
|
Annual repair rate
|
0.3＜%
|
Packing & Delivery
One day fast shipping.
Lead time: 1-2 weeks less than 1000pcs.
Lead time: 1-4 weeks less than 1000pcs.
MOQ100PCS
Company Profie
Headquartered in Shenzhen, CLIR TECHNOLOGY LIMITED is an industry leading designer, developer and manufacturer of enterprise-level BNC Connectors, Video Baluns, Cables, CCTV Power Supplys, CCTV camera housing and bracket. The company produces the most advanced and respected offering of CCTV Accessories based on its owned patented algorithms. Being a true manufacturer from board level design to hardware and software development, CLIR is able to control every aspect of the process from end-to-end.
FAQ
1. What is the MOQ?
MOQ100PCS.
Welcome to discuss.
2. What is the lead time?
About 1-2 weeks less than 1000pcs.
About 2-4 weeks less than 10000pcs.
