Quick Details
-
Belt conveyor:
-
Optional
-
Engine:
-
Cummins or local brand
Quick Details
-
Draught:
-
240 cm
-
Place of Origin:
-
Shanghai, China
-
Color:
-
Customized
-
Belt conveyor:
-
Optional
-
Engine:
-
Cummins or local brand
-
General Description:
-

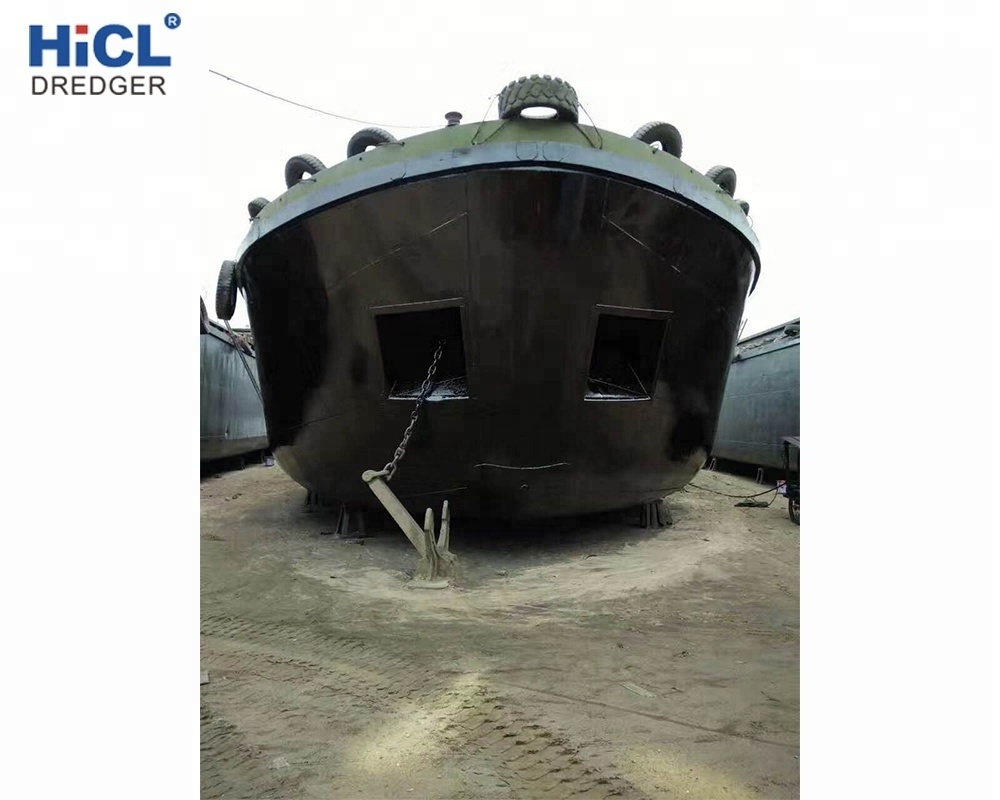

Sand transportation ship is self-propelled, self-unloading sand transport equipment, floating body can be divided into the integral or separation structure. The ship is equipped with propulsion system, storage silo system, delivery rack landing gear, positioning anchor device, conveying device operating room.
-
Main Function:
-
Sand transportation ship is used for delivery sand, stone, iron&gold mining to the land, conveyed to the land by belt, then switch into the next step of gravel sorting, crushing, washing, grading.
|
Desc. |
HST300 |
|
Hull size(LxWxH) |
36.0x8.5x3.0m |
|
Draught |
2.4m |
|
Displacement |
350t |
|
Capacity |
300t |
|
Main engine brand |
Cummins |
|
Main engine power |
115kw |
|
Main engine qty |
2pcs |
|
Main engine speed |
1500rpm |
|
Gear box model |
135 |
|
Gear box qty |
2pcs |
|
Speed |
12kn/h |
|
Propulsion power |
220kw |
|
Conveyor power/qty |
15kwx2 |
