- Product Details
- {{item.text}}
Quick Details
-
Weight (KG):
-
3500 KG
-
Power (kW):
-
27.17kw
-
Max working thickness:
-
90mm
-
Feeding speed:
-
5-30m/min
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HOLZH
-
Machine Type:
-
Wire Brush machine
-
Weight (KG):
-
3500 KG
-
Power (kW):
-
27.17kw
-
Max working thickness:
-
90mm
-
Feeding speed:
-
5-30m/min
Specification
|
Model
|
LZLS600
|
LZLS1300
|
|
Max. working width
|
600mm
|
1300mm
|
|
Max working thickness
|
5-90mm
|
5-90mm
|
|
Feeding speed
|
5-30m/min
|
5-30m/min
|
|
First unit power
|
7.5kw
|
11kw
|
|
Second unit power
|
1.1kw*3
|
1.5kw*4
|
|
Third unit power
|
5.5kw
|
7.5kw
|
|
Fourth unit power
|
4kw
|
7.5kw
|
|
Fifth unit power
|
4kw
|
5.5kw
|
|
Feeding power
|
2.2kw
|
4kw
|
|
Lifting power
|
0.37kw
|
0.75kw
|
|
Oscillating power
|
60w*5
|
60w*5
|
|
Total power
|
27.17kw
|
42.55kw
|
|
Overall dimension(LXWXH)
|
3500x1650x1750mm
|
4100x2700x1750mm
|
|
Weight
|
2300kg
|
4200kg
|

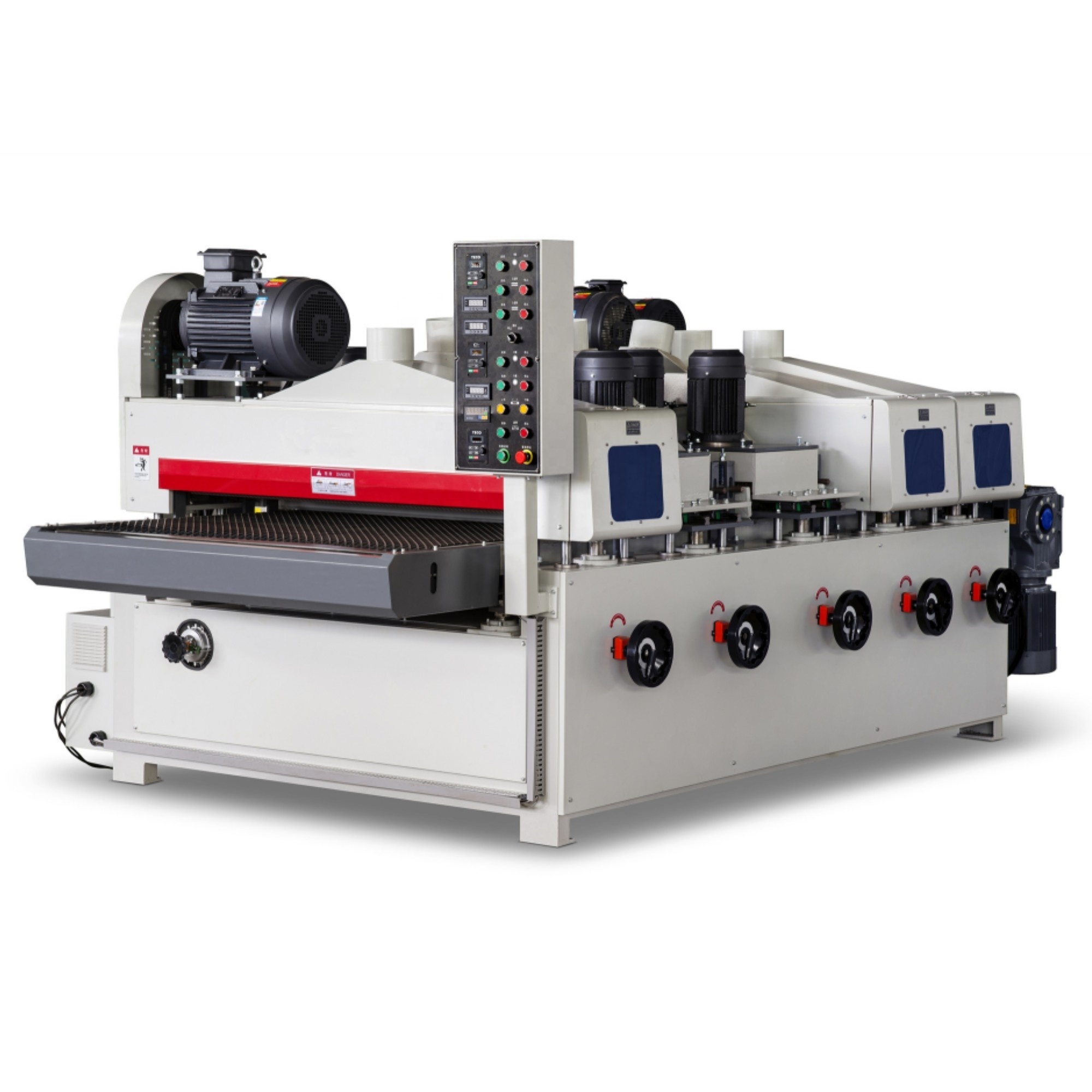

1 This machine is special designed for the flat products which need surface relief drawing result like archaize floor, furniture, table-board, handicraft etc and it's a new generation products processed by this machine, the flat surface is skid free, stereoscopic and beautiful
2 Conveyor belt, drawing rollers and polishing rollers all use independent controlled imported motors and the feeding use frequency conversion, which make the surface effect better and more precision controlled.
3. Drawing rollers,polishing rollers can be easily removed or remounted with precise positioning The height is read by the meters, easy to operate
4 Each unit has oscillating device, which make the work pieces more clear Each unit of roller or brush discs can be lifted independently
5 Different quantities vertical brush discs, Wire drawing rollers and polishing rollers can be equipped at different types of machines based on different materials.
