Quick Details
-
Brand Name:
-
HS
-
Year:
-
2020
-
Power (kW):
-
5.5
-
Weight (KG):
-
750
-
Power:
-
Hydraulic
-
After-sales Service Provided:
-
Overseas service center available
-
Name:
-
CNC PIPE BENDING MACHINE
-
Type:
-
Hydraulic Bending Tools
-
Voltage:
-
220V/380V/415V/440V/customized
Quick Details
-
Max. Bending Angle (Deg):
-
160
-
Bending Precision (Deg):
-
1
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
HS
-
Year:
-
2020
-
Power (kW):
-
5.5
-
Weight (KG):
-
750
-
Power:
-
Hydraulic
-
After-sales Service Provided:
-
Overseas service center available
-
Name:
-
CNC PIPE BENDING MACHINE
-
Type:
-
Hydraulic Bending Tools
-
Voltage:
-
220V/380V/415V/440V/customized
Features of Huth hb10 exhaust pipe tube bending machine
1 machine can bend, expand and shrink pipe end
2 machine bend and expanding pipe diameter reach to max 3 inch( galvanzied steel), others pipe size, SS or MS, is available
3 quotation include 5 stardand size tools,which are 38.1mm, 41.275mm,44.45mm,50.8mm,63.5mm,, if need other size, please let us know, customized serve is acceptable
|
BENDER SPECIFICATIONS |
|
|
Bending Capacity |
1/2’’ OD 2-1/2 /(3”) |
|
Maximum Bending Diameter |
2-1/2 /(3”) |
|
Swaging Capacity |
1/2” OD 1’’ OD to 3’’OD |
|
Motor/power Supply |
7.5HP/Single or 3 Hpase-220,380,or 440V,Optional single phase |
|
Hydraulic Pump Output |
3A-8R(4200PS) |
|
Operation Mode |
Dutton and Foot operated Controls |
|
Hydraulic Filter |
Canister Type |
|
Maximum Bending Force |
3,500PSI |
|
Depth-of-bend Plate |
Preset to Stop Any Desired Bend Depth |
|
Measurement(cm) |
180×80×108 |
|
Special Radius Dies and Power Supplier are Available |
|
|

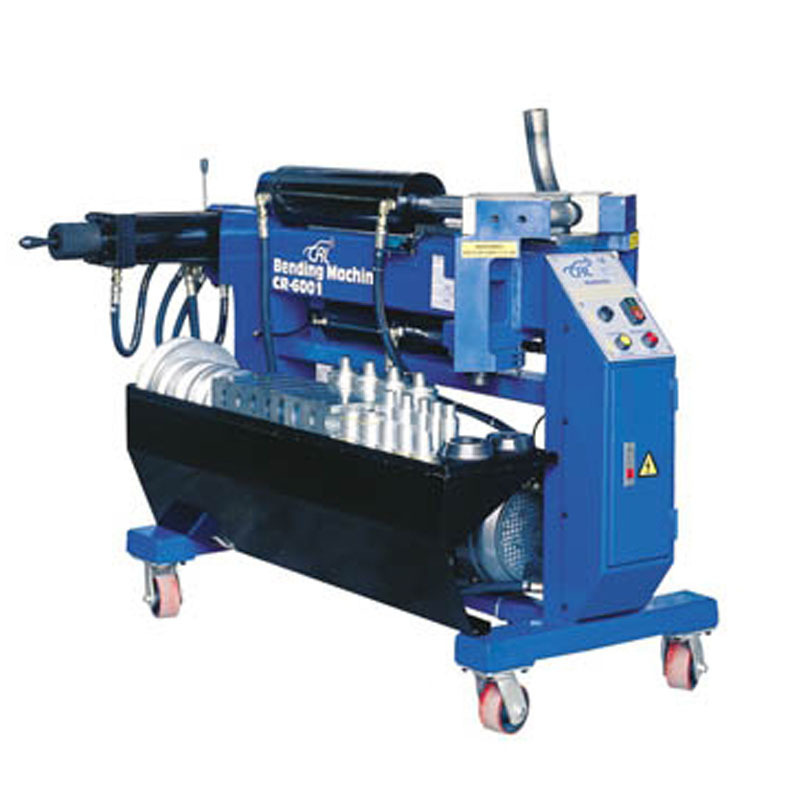

The CR-6001 tube bender is supplied with standard tooling pack 3A |
|
|
5 size of bending dies |
1 1/2,1 5/ 8, 1 3/4,2,2 1/2 inch |
|
5 sizes of back shoe sets |
1 1/2,1 5/ 8, 1 3/4,2,2 1/2 inch |
|
5 sizes of half shoes |
1 1/2,1 5/ 8, 1 3/4,2,2 1/2 inch |
|
5size of bend plugs |
1 1/2,1 5/ 8, 1 3/4,2,2 1/2 inch |
|
3 sizes of reducing tools |
1 5/ 8, 1 3/4,2 inch |
|
5 sizes expander dies |
1 1/2,1 5/ 8, 1 3/4,2,2 1/2 inch |
|
5 sizes adaptor collars |
1 1/2,1 5/ 8, 1 3/4,2,2 1/2 inch |
|
5 sizes segment expander sets |
1 1/2,1 5/ 8, 1 3/4,2,2 1/2 inch |
|
1 segment expander arbor |
1 1/2,1 5/ 8, 1 3/4,2,2 1/2, 3 inch |
|
1 rotation gauge |
|
Inner package foamed plastic or stretch film,outpackage:iorn frame or wooden case
Delivery shipped in 7-25days after payment
We will assist you deal with all questions if there will be any problomes with machine after install in your plant,and we will offer you accessories freely if there is damage as quality problems wiithin 24 morths,you just pay freight
