Quick Details
-
Brand Name:
-
SINCOLA
-
Motor Power:
-
7kw
-
Charging Capacity:
-
250L
-
Reclaiming capacity:
-
700
-
Speed of Mixing Drum:
-
1500 r/min
-
Water Supply Mode:
-
automatic water hose
-
Working Cycle Period:
-
3 mins
-
Discharge Way:
-
Open the valve
-
Outline Dimension:
-
2650*1000*2150 mm
-
Marketing Type:
-
New Product 2021
-
Weight (KG):
-
570 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Agitating Unit:
-
1.5kW
-
Mixing Unit:
-
5.5 kW
-
Mixing tank capacity:
-
250 L
-
Agitating tank capacity:
-
700 L
-
Chassis:
-
kickstand
-
Mixing raw material:
-
cement and water
-
Use:
-
combine with grouting pump
-
Mixing time:
-
2-5minutes
-
Other name:
-
Double tank mixer
Quick Details
-
Mixing Power:
-
5.5kw
-
Productivity:
-
150-700L
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
SINCOLA
-
Motor Power:
-
7kw
-
Charging Capacity:
-
250L
-
Reclaiming capacity:
-
700
-
Speed of Mixing Drum:
-
1500 r/min
-
Water Supply Mode:
-
automatic water hose
-
Working Cycle Period:
-
3 mins
-
Discharge Way:
-
Open the valve
-
Outline Dimension:
-
2650*1000*2150 mm
-
Marketing Type:
-
New Product 2021
-
Weight (KG):
-
570 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Agitating Unit:
-
1.5kW
-
Mixing Unit:
-
5.5 kW
-
Mixing tank capacity:
-
250 L
-
Agitating tank capacity:
-
700 L
-
Chassis:
-
kickstand
-
Mixing raw material:
-
cement and water
-
Use:
-
combine with grouting pump
-
Mixing time:
-
2-5minutes
-
Other name:
-
Double tank mixer
grout pan concrete mixer
Introduction Of grout pan concrete mixer:
grout pan concrete mixer, can continuously mixing work.
Grout Mixer is used to mix cement and water evenly, then pour into grouting pump,in order to doing the grouting work efficiently. when working, water and cement according certain ratio is added into the grout-making tank, then, the materials work in the high speed continuous flow to be compounded equably under the action of the grout-making pump. The compounded grout is discharged into the store tank through the valve, in which there are two pieces of paddle can prevent from depositing and eduction.
SM150-200/SM250-700 Grout Mixer Technical Parameters
| Item | SM150-200 | SM250-700 |
| Mixing tank capacity | 150 L | 250 L |
| Agitating tank capacity | 200 L | 700 L |
| Mixing speed | 1500 r/min | 1500 r/min |
| Agitating speed | 136 r/min | 33 r/min |
| Mixing Unit | 3 kW | 5.5 kW |
| Agitating Unit | 1.1 kW | 1.5 kW |
| Chassis | kickstand | kickstand |
| Dimensions | 950×750×1190 mm | 2650×1000×2150 mm |
| Weight | 460 kg | 560 kg |
| Application field | Grout or other materials suitable for being mixed quickly | |
grout pan concrete mixer
Applications Of Grout Mixer:
grout pan concrete mixer is Combine with grouting pump, mixing cement and water, it can grout with pressure in mining, tunnel, culvert, subway, hydropower engineering, underground excavation engineering etc.
Operation of grout pan concrete mixer:
- grout pan concrete mixer, Close the valve. Add the water into the grout-making tank and start the tank. The water should flow violently, then,add the cement in a certain ratio. Cement and water is compounded quickly. Stop the motor until the grout is compounded well (about 3 minutes).
- After the grout is compounded well, start the store tank.Turn the valve handle to open the valve, the grout is discharged into the store tank. After discharging, close the valve.
- Open the discharge valve of the store tank and start the grouting pump to do the grouting work.
- Repeat 1 and 2.
- Clean the grout-making tank and store tank in time after the work finish

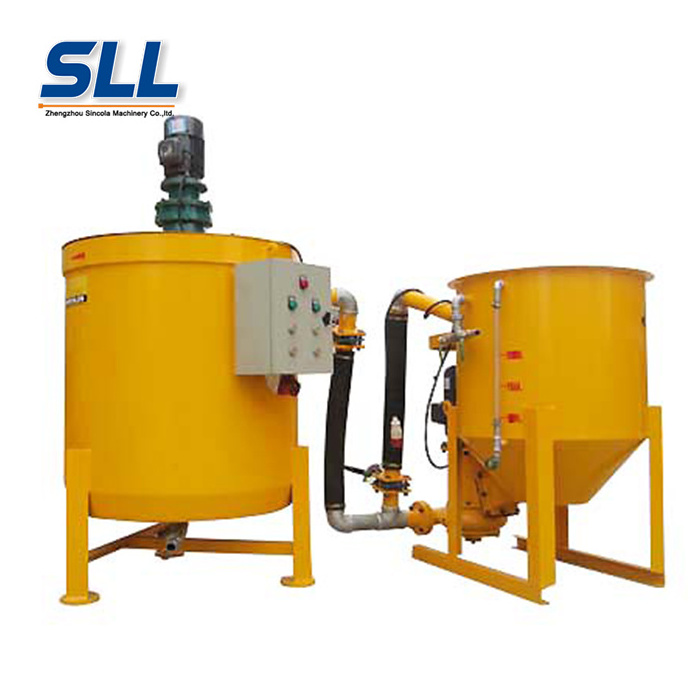

Mixing Tank + Storage Tank
FAQ:
1. How many people that need to operate the grout pan concrete mixer?
One or two workers can use it successfully.
2. U
sing the machine ,
what can we do ?
Mixing cement and water, combined with grout pump.
3. Available shipment port?
FOB SHANGHAI
FOB TIANJIN
FOB QINGDAO
4. How much is grout pan concrete mixer price?
It's cheap!
5. Our company have some high quality grout mixer,do you want to to buy?
Contact me,I'll give a reasonable quotation.
6. What is the machine feature?
High speed mixing, two mixing tank with continaity work.
More question, please contact me by following ways in time.
Maybe you would like to inquiry some information of grout pan concrete mixer.
Please contact me,
My Skype: sincolasale
