1. high purity quartz tube.
2. Working temperature: 1250°C soft temperature: 1730°C.
3. Excellence in vision and chemistry
Manifestation.
4. No surface coating and infectious agent.
5. Health care and environmental protection. 6. All different sizes can be completed according to the customer's needs.
7. CE. RoHs SGS approved.
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Model Number:
-
ZGN0323
-
Color:
-
transparent, Clear Transparent
-
Product Name:
-
quartz tube
-
Material:
-
99.99% Pure Quartz
-
Size:
-
Customised Size
-
Work Temperature:
-
1100 Degrees Celsius
-
Package:
-
Carton+Bubble Film+Woodem Cases
-
Strain point:
-
1100℃
-
Annealing point:
-
1180℃
-
MOQ:
-
1 Piece
-
Length:
-
Customers' Requirements
Quick Details
-
Type:
-
Clear Quartz Pipe
-
Application:
-
Semiconductors/Industry/Optical Instrument
-
Outside Diameter:
-
1.5-900mm
-
Place of Origin:
-
Jiangsu, China
-
Model Number:
-
ZGN0323
-
Color:
-
transparent, Clear Transparent
-
Product Name:
-
quartz tube
-
Material:
-
99.99% Pure Quartz
-
Size:
-
Customised Size
-
Work Temperature:
-
1100 Degrees Celsius
-
Package:
-
Carton+Bubble Film+Woodem Cases
-
Strain point:
-
1100℃
-
Annealing point:
-
1180℃
-
MOQ:
-
1 Piece
-
Length:
-
Customers' Requirements
Video Description
High temperature resistant quartz glass tube can be used for a long time at 1100 degrees Celsius, widely used in point light source, semiconductor, optical communication, military, chemical, electric power and other fields, can be customized glass tube of various sizes.
Product Description
1. Do not run at a temperature exceeding the highest working temperature of quartz for a long time.
Otherwise, the product will be deformed and crystallized or softened.
2. Clean quartz products before operating in high temperature environments. The product is first soaked in 10% hydrofluoric acid and then washed with high purity water or alcohol. Operators should wear thin gloves and do not touch quartz glass directly with their hands.
3, continuous use in a high temperature environment to extend the life and heat resistance of quartz products is wise. Otherwise, interval use will shorten the product life.
4. Try to avoid contact with alkaline substances (such as sodium silicate, asbestos, potassium and sodium)
Quartz glass products are made of acidic materials at high temperatures. Otherwise, the crystallization resistance of the product will be greatly reduced.
Factory support drawing to sample customization
Buyer's note
Due to the wide variety of quartz products, our prices are not necessarily the actual prices. Different types and sizes of quartz have different prices. We can only take a picture of the buyer for reference, and then you give us the specifications, we will give you a quote.
For example, the longer the length of a quartz rod, the more expensive it is. Of course, the price also depends on the quantity. The larger the quantity, the cheaper the price. Contact the seller for details.

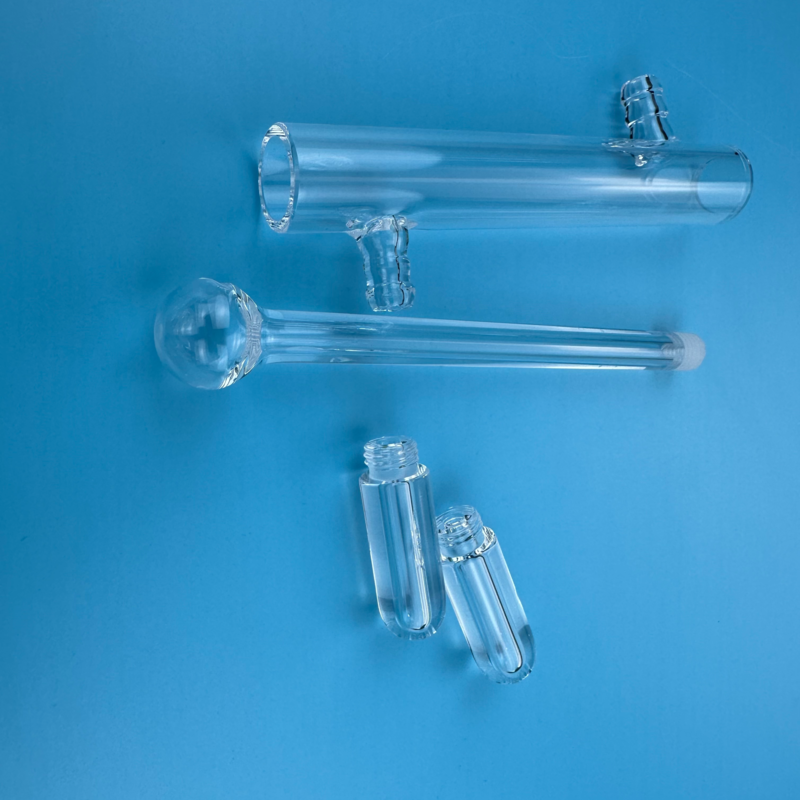

Detail pictures
Product Parameters
|
Density
|
2.2(g/cm3)
|
|
Transformation point
|
1200℃
|
|
Temperatures for long periods of time
|
1200 °C to 1300 °C
|
|
Temperature over a short period of time
|
1500 ℃
|
|
Light transmittance
|
80%-95%
|
|
Melting temperature
|
1750 ~ 1800 ℃
|
|
Shear modulus
|
31000Mpa
|
|
Softening point
|
1730℃
|
|
Thermal conductivity (20 °C)
|
1.4w/m ℃
|
|
Specific heat (20 °C)
|
660J/kg℃
|
Production process
Packing&Delivery
Packaging for Customized Quartz Glass Tube:
Inner: 1piece / Bubble paper. Plastic air cushion film. Foam material.
Outer: Shipping Carton /Wooden case /According to customers' requirement.
Packaging for Customized Quartz Glass Tube:
Inner: 1piece / Bubble paper. Plastic air cushion film. Foam material.
Outer: Shipping Carton /Wooden case /According to customers' requirement.
