Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ZHENGXIN
-
Model Number:
-
ZXL- E700
-
Voltage:
-
380V/220V
-
Dimension(L*W*H):
-
11500*3000*2100mm
-
Weight:
-
4000 KG
-
Bag process:
-
ultrasonic sealing
-
Multifunction:
-
All kinds of bags
-
Operation:
-
Easy handling
-
Automatic:
-
Full-Automatic
-
Size of Bag Gusset:
-
80-160mm
-
Handle Loop Length:
-
380-600mm
-
Overall Dimension:
-
12000*2100*2300mm
-
Local Service Location:
-
India,Tanzania,Morocco,Kenya
Quick Details
-
Machine Type:
-
Bag Forming Machine
-
Bag Type:
-
Soft Loop Handle Bag
-
Material:
-
Non Woven Bag
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ZHENGXIN
-
Model Number:
-
ZXL- E700
-
Voltage:
-
380V/220V
-
Dimension(L*W*H):
-
11500*3000*2100mm
-
Weight:
-
4000 KG
-
Bag process:
-
ultrasonic sealing
-
Multifunction:
-
All kinds of bags
-
Operation:
-
Easy handling
-
Automatic:
-
Full-Automatic
-
Size of Bag Gusset:
-
80-160mm
-
Handle Loop Length:
-
380-600mm
-
Overall Dimension:
-
12000*2100*2300mm
-
Local Service Location:
-
India,Tanzania,Morocco,Kenya

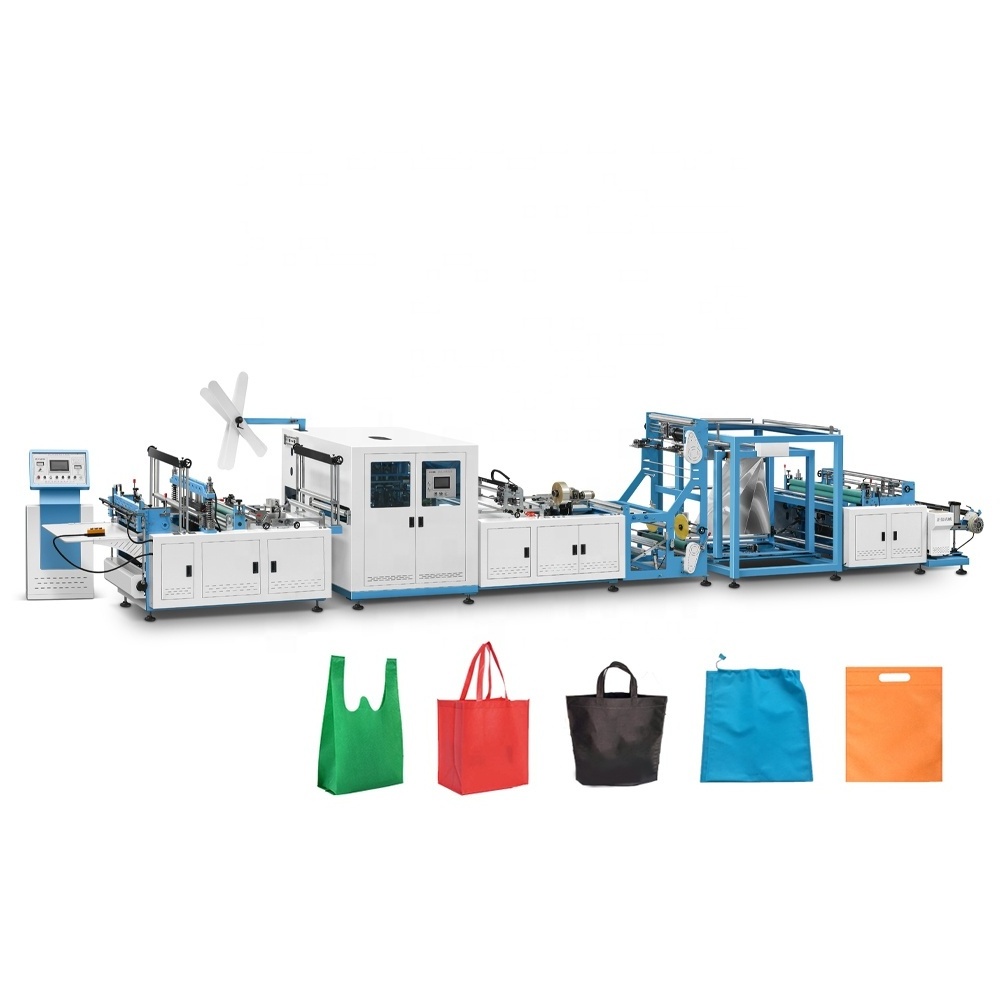

ZXL-E700
Non Woven Box Bag Making Machine with Online Handle Attaching(5 in 1)
This machine adopts mechanical, electrical, optical and pneumatic integration technology, suitable for non-woven fabric, different specs of non woven bags can be made by this machine.
|
Material
|
Rolls of pp spunbond non woven fabric
Laminated non woven fabric
|
If you have different requirements, please let us know, and we will provide you with customized solutions based on the actual situation of the machine.
|
||
|
Production speed
|
20-120pcs/min
|
|
||
|
Fabric thickness
|
35-100gsm for bag body
60-100gsm for bag handle
|
|
||
|
Bag width
|
100-800mm
|
|
||
|
Bag height
|
200-580gsm
|
|
||
|
Power source
|
220V/380V
|
|
||
|
Power
|
18kW
|
|
||
|
Overall dimension (L*W*H)
|
11500*2600*2100mm
|
|
||
|
Weight
|
4000kg
|
|
||
|
- Drawstring feeding
- Online D-cut punching
- Online handle attaching
- Bottom gusset and side gusset making
- Optional online T-shirt bag auto punching Pressure requirements: 0.8-1.0 Mpa (recommended 7.5KW screw air compressor with refrigerate air dryer and 0.6 m3air tank) |
|
|
||
