Quick Details
-
Voltage:
-
220V/380V/415V(customizable)
-
Dimension(L*W*H):
-
1200*600*1050mm
-
Weight:
-
460kg
-
Working Pressure:
-
customization
-
Air capacity:
-
customization
-
Purpose:
-
Ammonia loading and unloading
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Cooling method:
-
Air-cooling
-
Motor power:
-
11kw/15hp
-
Working pressure:
-
2.4MPa
-
Bearing:
-
100% Sweden NSK
Quick Details
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
AOT
-
Model Number:
-
ZW-0.4/16-24B
-
Voltage:
-
220V/380V/415V(customizable)
-
Dimension(L*W*H):
-
1200*600*1050mm
-
Weight:
-
460kg
-
Working Pressure:
-
customization
-
Air capacity:
-
customization
-
Purpose:
-
Ammonia loading and unloading
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Cooling method:
-
Air-cooling
-
Motor power:
-
11kw/15hp
-
Working pressure:
-
2.4MPa
-
Bearing:
-
100% Sweden NSK

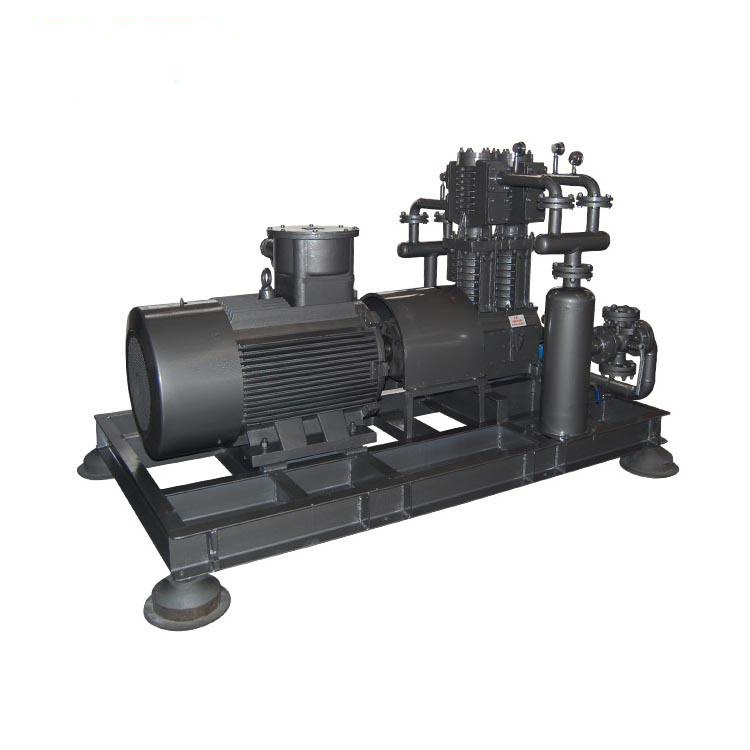

Product overview:
Ammonia compressor can be used for discharging liquid ammonia.It can also be used in other chemical processes.During unloading, the inlet and exhaust pressure will change linearly with the unloading process, but the exhaust pressure of ammonia compressor must always be higher than the tank pressure, and the inlet pressure can be from 0.1-1.6mpa.Exhaust pressure can be from 0.2-2.4mpa;The displacement can be from 10-20000Nm3 /h.The compression series may be 1-3 levels.
Features:
The machine has the characteristics of complete configuration, simple structure, safe and reliable product and convenient maintenance
Application:
Widely used in chemical plants, ammonia station liquid ammonia unloading, power plants and so on.
|
Compressor
|
Product Model
|
|
Customization
|
||
|
|
Type
|
|
D Type
|
||
|
|
Compressed medium
|
|
Ammonia
|
||
|
|
Nominal volume flow(m³/mim)
|
|
0.4
|
||
|
|
Compression stage
|
|
1
|
||
|
|
Cylinder number
|
|
2
|
||
|
|
driving mode
|
|
Belt
|
||
|
|
Noise (sound pressure level) dB(A)
|
|
≤75
|
||
|
|
Cooling mode
|
|
Air cooling
|
||
|
|
Rotational speed (r/min)
|
|
400
|
||
|
|
Suction pressure (MPa G)
|
|
1.6
|
||
|
|
Discharge Pressure (MPa G)
|
|
2.4
|
||
|
|
Suction temperature (℃)
|
|
30
|
||
|
|
Discharge temperature (℃)
|
|
≤110
|
||
|
|
Lubrication type
|
Crankshaft, connecting rod, cross head
|
Oil lubrication
|
||
|
|
|
Cylinder, Packing
|
Oil-free lubrication
|
||
|
Motor
|
Model
|
|
YB3-132M-4
|
||
|
|
Explosion-proof grade
|
|
DIIBT4
|
||
|
|
Rotational speed (r/min)
|
|
1460
|
||
|
|
Rated voltage (V)
|
|
380
|
||
|
|
Rated frequency(Hz)
|
|
50
|
||
|
|
Rated current (A)
|
|
14.6
|
||
|
|
Rated power (Kw)
|
|
7.5
|
||
|
Compressor size (L×W×H) mm
|
≈1200×600×1050
|
|
|
||
|
Weight(kg)
|
≈450
|
|
|
||
Note:With the parameters of the logo will be subject to leave the factory
Scope of supply
|
No.
|
Name
|
number
|
note
|
|
1
|
Compressor host
|
1
|
/
|
|
2
|
Explosion-proof Motor
|
1
|
/
|
|
3
|
Gas-liquid separator
|
1
|
/
|
|
4
|
The 4-way valve
|
1
|
/
|
|
5
|
Shared chassis
|
1
|
/
|
|
6
|
Belt
|
1 set
|
/
|
|
7
|
Piping components
|
1 set
|
/
|
|
8
|
Random spare parts
|
1 set
|
/
|
|
9
|
The technical documentation
|
1 set
|
/
|
|
Model
|
Gas displacement (m3/h)
|
Inlet pressure (MPa)
|
Discharge pressure (MPa)
|
Motor power (Kw)
|
|
ZW-0.2/16-24
|
0.2
|
1.6
|
2.4
|
5.5
|
|
ZW-0.4/16-24
|
0.4
|
1.6
|
2.4
|
7.5
|
|
ZW-0.6/16-24
|
0.6
|
1.6
|
2.4
|
11
|
|
ZW-0.8/16-24
|
0.8
|
1.6
|
2.4
|
15
|
|
ZW-1.0/16-24
|
1.0
|
1.6
|
2.4
|
18.5
|
|
ZW-1.3/16-24
|
1.3
|
1.6
|
2.4
|
22
|
|
ZW-1.5/16-24
|
1.5
|
1.6
|
2.4
|
30
|
|
ZW-2.0/16-24
|
2.0
|
1.6
|
2.4
|
37
|
|
ZW-2.5/16-24
|
2.5
|
1.6
|
2.4
|
45
|
|
ZW-3.0/16-24
|
3.0
|
1.6
|
2.4
|
55
|
|
ZW-4.0/16-24
|
4.0
|
1.6
|
2.4
|
75
|
|
ZW-3.0/0.1-10
|
3.0
|
0.01
|
2.4
|
22
|
|
ZW-2.5/2-16
|
2.5
|
0.2
|
1.6
|
37
|
|
ZW-0.8/12-18
|
0.8
|
1.2
|
1.8
|
30
|
Five reasons to choose AOT compressor:
1. Overall skid-mounted humanized design:
Adopt integral skid-mounted design, compact structure, more convenient operation and maintenance.
2."Tailored" for customers:
According to the usage parameters and requirements provided by customers, provide the best solution to fully meet the needs of customers.
3.A machine a file:
Record the relevant data and information of the whole process of the equipment and the delivery place in detail, so as to facilitate the timely tracking service.
4.24Monthly free warranty
All factory compressors are Free warranty for 24 months, lifetime warranty, so that users can be more assured.
5.Perennial spare parts support
Our company stock spare parts for every factory compressor, to ensure the long-term use of users, remove users' worries.
Bengbu AOT Compressor Co.,
is located in Bengbu Anhui.China. This is the world's important compressor production base. The company specializes in the development, manufacturing and sales of compressor products. The company is mainly engaged in the new type of high efficiency and environment-friendly special gas compressor for oxygen, hydrogen, menthane , liquefied gas, natural gas and gas station and chemical industry. The company has always adhered to the scientific and technology and design concept of compressor industry at home and abroad, combined with the actual situation in China, and applied scientific enterprise management and advanced manufacturing techiology in the design, development, assembly process and testing means. Product quality, to create first-class products.
Two-years warranty period for whole machine except of tubes and human factors etc, and 24-month of after-sale service from the date when you receive machine or 24 months when installation finished;
Consultant services for whole machine life, and 24 hours technical support by email;
UPS, English software, user manual and the installation & debugging by our experienced technicians.
Please tell me inlet pressure,outlet pressure,voltage frequency,capacity,the usage of compressor, I will recommend a suitable gas compressor.
If you want to send me the inquiry,please fill the below technical information:
1. The flow rate: _____Nm3/hr
2. Inlet pressure: _____ Bar
3. Discharge pressure: _____ Bar
4. Voltages and Frequency : ______V/PH/HZ
5. Natural gas compressor application:
If you are interested in it,please contact me freely
