Quick Details
-
Tunnel size:
-
500(L)*300(W)mm
-
Conveyor Speed:
-
0.22m/s
-
Spatial resolution:
-
Level: dia1.0mm, Vertical: dia1.3 mm
-
Conveyor Max Load:
-
150kgs
-
Penetration:
-
30mm to 40mm Steel
-
Certification:
-
ISO1600
-
X ray dose per each inspection:
-
<2.9μGy/h
-
X ray leakage:
-
<0.1 μGy/h (at a distance of 5cm From external housing)
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Unit weight (kgs):
-
303
-
Unit size (mm):
-
1660(L)*746(W)*1165(H)
-
Tunnel size:
-
500(L)*300(W)mm
-
Conveyor Speed:
-
0.22m/s
-
Spatial resolution:
-
Level: dia1.0mm, Vertical: dia1.3 mm
-
Conveyor Max Load:
-
150kgs
-
Penetration:
-
30mm to 40mm Steel
-
Certification:
-
ISO1600
-
X ray dose per each inspection:
-
<2.9μGy/h
-
X ray leakage:
-
<0.1 μGy/h (at a distance of 5cm From external housing)

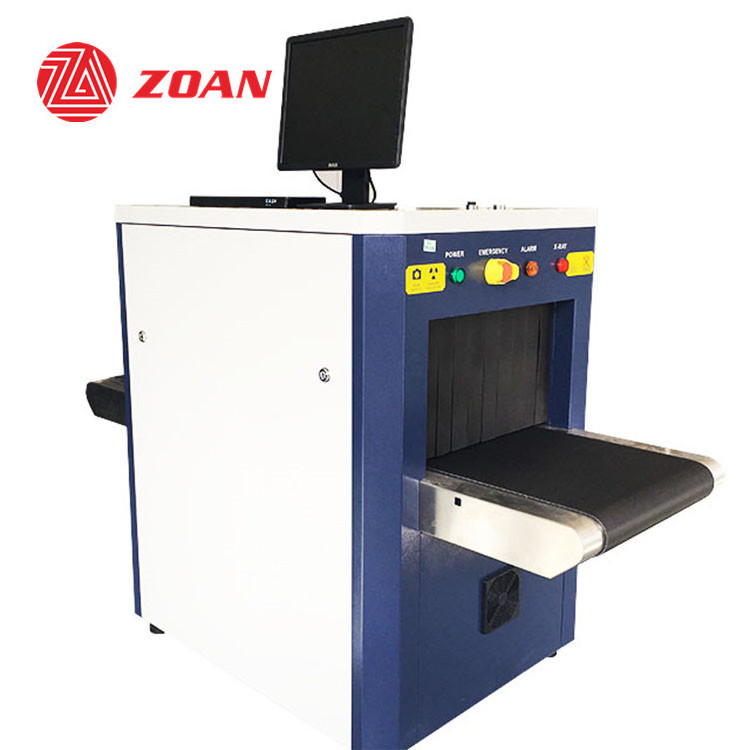

x ray baggage scanner price multi energy x ray baggage inspection machine high quality x ray scanner for security
|
Physical Specifications |
|
|
Unit weight (kgs) |
303 |
|
Unit size (mm) |
1660(L)*746(W)*1165(H) |
|
Gross weight (kgs) |
400 |
|
Packing size |
180*88*138cm |
|
General Specifications |
|
|
Tunnel size(mm) |
500(L)*300(W) |
|
Conveyor Speed(m/s) |
0.22 |
|
Conveyor height(mm) |
663 |
|
Conveyor Max Load(kgs) |
150 |
|
X ray dose per each inspection |
1.5 μGy |
|
X ray leakage |
<0.25 μGy / h |
|
Penetration |
32mm steel |
|
Wire Resolution |
dia 0.0787mm copper wire (AWG40) |
|
Penetration Resolution |
dia 0.202mm copper wire (AWG32) under three-step aluminum wedge 9.5mm, 15.9mm, 22.2mm |
|
Spatial resolution: |
Horizontal:dia1.0mm,Vertical: dia1.0mm |
|
Power Consumption |
max. 1KW |
|
Noise |
56.3 dB |
|
Film Safety |
Guarantee ASA/ISO1600 Film |
|
X-ray Generator (single) |
|
|
Anode Voltage |
140 KV |
|
Anode power |
0.4-1.2mA (adjustable) |
|
Generate angle |
80 degree upward |
|
Generate direct |
from bottom to top |
|
Cooling / Duty Cycle |
Oil Cooling /100% |
|
Brand |
made by ourself |
|
Image System |
|
|
X-ray Sensor |
L-Shaped Photodiode Array (multi-energetic) , 12bit Deep |
|
Image Display |
High resolution of 1024 * 1280 pixel; Image Grey Level: 4096 |
|
Image Enhancement |
1-64times enlargement continuity, Color/BW, negative, high/low
|
|
Image Recall |
All preceding images recallable, retrieval |
|
Explosives & Narcotics Detection |
Explosives & narcotics alarm and highlight according to atomic number signature |
|
High Density Region Alarm |
Impenetrable region alarm and highlight, for possible concealing of threats and contrabands |
|
Threat Image Projection |
Inserting fictional, but realistic images of threat items into baggage during screening operation, for maintenance of vigilance, as well as training and assessment of image identification capability |
|
Miscellaneous Functions |
Time/date display, counters, user management, system-on/X-ray-on timers, power on self test, built-in diagnostic facilities,system log, system standby and stimulant training, ADS etc. |
|
Network Applications |
Multiple remote applications available based on Ethernet LAN and windows platform, such as image centralized storage and identify, recheck workstation, and network TIP, etc ( Optional) . |
|
Images process |
24bit real time processing ,4colors analysis, Images displayed marked date and ID NO ,Count the number of bags |
|
Operating Environment |
|
|
Operation temperature/Humidity |
0 ℃ -45 ℃ / 5%-95%(non-condensing) |
|
Storage Temperature/Humidity |
-40 ℃ to 70 ℃ / 5%-95%(non-condensing) |
|
Operation Power |
220VAC(±10%) 50±3Hz (Optional: 100VAC,110VAC,120VAC,200VAC) |
|
UPS |
15mins, 30mins, 60mins etc, optional |
|
Computer and other |
|
|
Monitor |
High Resolution Color, LCD Accord, 17inch |
|
Hard Disk |
SEAGATE 500G 3.5” |
|
CPU |
G1610 2.6G |
|
Storage |
2GB 1600MHz DDR3 Innodisk |
|
Main board |
H61 SYM76993VGGA |
|
Compliance |
|
|
International |
* ISO19001 ; ISO14001 ; OHSMS18001 ;
|
