Quick Details
-
Weight:
-
30 kg
Quick Details
-
Warranty:
-
3 years
-
Place of Origin:
-
China
-
Brand Name:
-
Sooyee
-
Weight:
-
30 kg
Products Description
SYB Series Handling robot with payload 3kg, 5kg, 6kg, 10kg, 20kg, 30kg, 50kg, 60kg, 80kg,
130kg
，180kg，210kgarm length 570mm~3000mm. They are widely applied in Handling, Palletizing, Machine tool loading and unloading, Painting, Polishing, Plasma Cutting, Sorting, gumming, etc. In addition, we can also provide standard material bin and customized gripper.
|

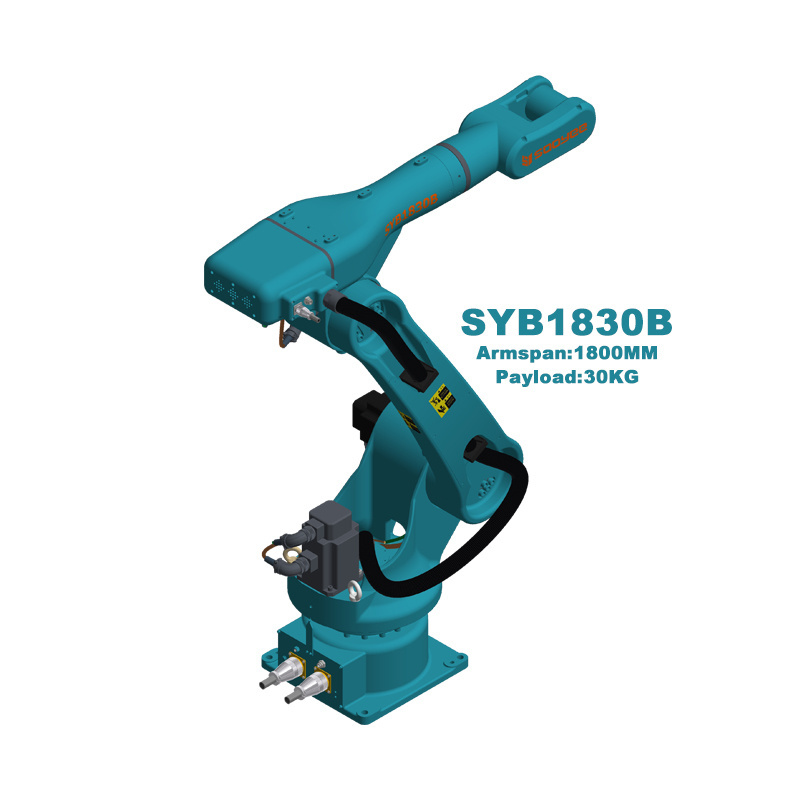

SYB1830B
|
|
|
||
|
|
DOF
|
6
|
||
|
|
Payload
|
30Kg
|
||
|
|
J3 Axis Additional Load
|
25 Kg
|
||
|
|
Repeated Positioning accuracy
|
±0.08mm
|
||
|
|
Robot Weight
|
About 255Kg
|
||
|
|
Installation Way
|
Floor/side wall
|
||
|
|
Power Capacity
|
4.5 KW
|
||
|
|
Supply Voltage
|
Three- phase 380V
|
||
|
|
Brake
|
J2、3、5 axis with brake
|
||
|
|
Max arrival distance of point P
|
1809 mm
|
||
|
|
Min arrival distance of point P
|
491 mm
|
||
|
|
J1 axis（rotation）
|
±180°
|
||
|
|
J2 axis（Lower arm swing）
|
-170°～+90°
|
||
|
|
J3 axis（Upper arm swing）
|
-85°～+95°
|
||
|
|
J4 axis（Arm Gyrate）
|
±360°
|
||
|
|
J5 axis（Wrist pitching）
|
±130°
|
||
|
|
J6 axis（Wrist rotation）
|
±360°
|
||
|
|
J1 axis（rotation）
|
122°/s
|
||
|
|
J2 axis（Lower arm swing）
|
70°/s
|
||
|
|
J3 axis（Upper arm swing）
|
138°/s
|
||
|
|
J4 axis（Arm Gyrate）
|
168°/s
|
||
|
|
J5 axis（Wrist pitching）
|
270°/s
|
||
|
|
J6 axis（Wrist rotation）
|
337°/s
|
||
|
|
End Resultant Speed
|
1.2 m/s
|
||
|
Max Allowable torque
|
J4 axis
|
60.0 N• m
|
||
|
|
J5 axis
|
60.0 N• m
|
||
|
|
J6 axis
|
50.0 N• m
|
||
|
End Flange
|
End Flange
|
Hollow
|
||
|
Suitable welding torch mode
|
|
built-in
|
||
|
Recommendedlength of welding torch line
|
|
1.2m
|
||
|
Can it be Changed to 5-axis
|
Can it be Changed to 5-axis
|
Yes
|
||
|
Can it be Customized Inverted Installation
|
Can it be Customized Inverted Installation
|
Yes
|
||
|
Main application
|
Main application
|
Handling/stacking/CNC machine
|
||
|
Isolation Transformer
|
Isolation Transformer
|
Yes
|
||
Provide customized products
Application
About us
Chengdu SOOYEE Intelligent Technology Co., Ltd. is a scientific and technological enterprise specializing in the R&D, produce and
sales industrial automatic robot arm. Our core members of venture team have been engaged in the R&D and application of industrial robots for more than 15 years, with rich experience and strong foundation, and we obtained more than 20 patents and intellectual property rights, including invention, software copyright, utility model, appearance, etc. Our robots are exported to Beijing, Tianjin, Hebei, Shandong, Jiangsu, Zhejiang, Shanghai, Guangdong, Southeast Asia, Europe and North America.
Product packaging
we use export-special-use wooden case with strong base for packing the robot, to keep the robot from any damaging during the transportation, it will cause no inconvenient during the customer clearance because it needs no fumigation certification.
FAQ
|
Q:
|
What’s your MOQ?
|
|
A:
|
At present, our MOQ is 1 set.
|
|
Q:
|
How long about your lead time?
|
|
A:
|
Products prepare time is about 15~20 working days. If we have robots in stock, we can send out immediately.
|
|
Q:
|
What’s your warranty?
|
|
A:
|
3 years warranty.
|
|
Q:
|
Can robots be put on client’s logo?
|
|
A:
|
Yes. You can put your own logo on it.
|
|
Q:
|
Can robot body and control cabinet color be customized?
|
|
A:
|
Yes, robot body and control cabinet color can be customized.
|
|
Q:
|
Which communication port do your robot support?
|
|
A:
|
Our robots Modbus RTU, Modbus TCP/IP.
|
|
Q:
|
Can robot be added with external axes?
|
|
A:
|
Yes, our robot support at most 3 external axes.
|
|
Q:
|
Can the robot use offline programming?
|
|
A:
|
Yes, our own LNC controller can do offline programming.
|
|
Q:
|
What kind of welding machine can your robot connect with?
|
|
A:
|
Our welding robots can match with welding machine brands like MEGMEET, AOTAI.
|
|
Q:
|
Are you manufacturer or trading company?
|
|
A:
|
We are manufacturer for automation robot in Chengdu city, China.
|
