Quick Details
-
Weight (T):
-
0.5
-
CE Certificate:
-
Yes
-
Control:
-
Electric
-
Capacity:
-
50 Pcs / Minute
-
Accuracy:
-
0.05mm
-
Notching molds:
-
1 set
-
Driven power:
-
Hydraulic
-
Motor:
-
5KW
-
Weight:
-
500KG
-
Dimensions:
-
900x850x1550mm
Quick Details
-
Place of Origin:
-
Shandong, China
-
Voltage:
-
380V/220V Optional, 220V/380V/415V/440V/customized
-
Model Number:
-
P100
-
Weight (T):
-
0.5
-
CE Certificate:
-
Yes
-
Control:
-
Electric
-
Capacity:
-
50 Pcs / Minute
-
Accuracy:
-
0.05mm
-
Notching molds:
-
1 set
-
Driven power:
-
Hydraulic
-
Motor:
-
5KW
-
Weight:
-
500KG
-
Dimensions:
-
900x850x1550mm
Customized Notching Hydraulic Power Supply Hydraulic Square Tube Right Angle Notching Machine Tube Hole Punching Machine
Product Description

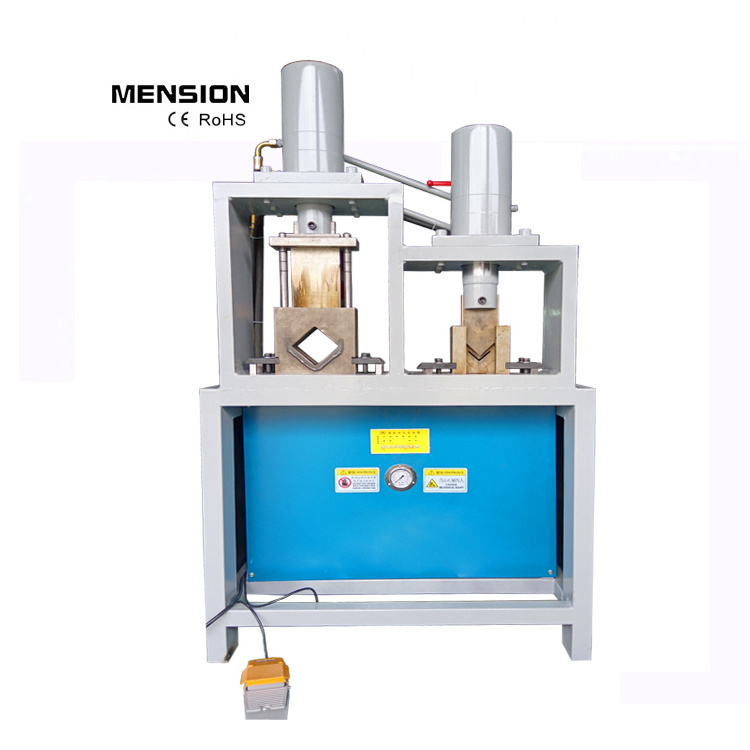

Angle Pipe Notching Punching Machine.
angle pipe notching machine is a hydraulic notching machine, with customizes notching dies for tubes of different sizes. The worker manually feeds the tube, and then steps on the foot pedal. the hydraulic power unit will drive the notcher cutter punching down and move ahead and astern, to cut pipes in a 90-degree angle in one short. The angle notching machine is a fully automatic motor, which improves production efficiency and saves labor costs for customers.
Specification
|
Description
|
Parameters
|
|
Model
|
N80 N100 N120 N160 N180 tube notching punching machine
|
|
Tube Size
|
4-75mm
|
|
Tube Thickness
|
0.5-7.5mm
|
|
Tube Length
|
6-12m
|
|
Working Station
|
1-6
|
|
CE Certificate
|
Yes
|
|
Control
|
Electric
|
|
Capacity
|
50 Pcs / Minute
|
|
Accuracy
|
0.05mm
|
|
Notching molds
|
1 -6set
|
|
Driven power
|
Hydraulic
|
|
Motor
|
5-17KW
|
|
Weight
|
500KG
|
|
Dimensions
|
900x850x1550mm
|
|
Voltage
|
220V/380V/415V/440V/customized
|
Applications
.
90° /45
°
Angle Notching Hole Punching Machine is workable for notching different angles include 30°, 40°, 45°, 60°, 90°.
It is widely used for steel guardrail, zinc steel fence, iron guard fence, aluminum alloy shelf bracket, handrail, balustrade, railing, banisters.
Available for different materials, including stainless steel tube, mild steel pipe, iron pipe, copper tube, etc.
Angle Notching Machine could be designed to combine punching workstation, to perform punching job. 2 in 1 Angle Notching Punching Machine
Features
.
It is equipped with different notching molds. Reasonable design notch and die set, to prevent the scratch on the tube surface. The whole machine must be processed by gantry milling to ensure high precision performance. notching power is driven by the hydraulic unit with an auto-cooling system. This machinery is a manual notching machine which available for the most convenient operation and economic consideration.
No scratch on the surface of metal tube and pipe, reasonable designing notch and die set to preventing scratch, auto wiping system removes metal filings.
High precision. The whole machine must be processed by gantry milling to ensure high precision performance. High-quality guides rail and transmits gear.
Available for the different distances of holes notching.
Hydraulic-driven, step-less pressure regulation.
One set of notching machines can be used for different shapes of holes notching, by replacing customized notch and die set.
Manual feed for easy maintenance and cheap notching machine consideration.
Durable hydraulic cylinder, best quality hydraulic hose.
Notcher and die set was made by Cr12Mov with a tempering .
12 months warranty for notching machine, 12 months for notcher and die set.
Angle Pipe Notching Tube Hole Punching Pressing Machine Specifications
.
It is a hydraulic notching machine, with customized notching molds for different sizes of pipes, workers feed pipes manually, then stepping the foot pedal, the hydraulic power unit will drive the notcher cutter punching down and move ahead and astern, to cut pipes at a 90-degree angle in one short. This angle notching machine is an automatic electrical machine, which improves productivity and saving labor costs for clients.
Several notches and die set can be equipped on one hydraulic notching machine, this notching equipment is customized as needs for different metal notch purposes. This hydraulic notching machine adopts a powerful hydraulic cylinder with an 80mm to 125mm cylinder diameter.
Packing & Delivery
Standard export free-fumigation wooden case.
