Quick Details
-
Brand Name:
-
Rata
-
Model Number:
-
RT1000KWLBMO
-
Name:
-
1000kW Manual/Auotmatic Control AC load bank
-
Purpose:
-
Test generator, transformer and UPS
-
Certificate:
-
ISO9001/14001/45001/CE
-
Product type:
-
Resistive load bank
-
Voltage:
-
400V/Customized
-
Load Connection:
-
3 phase 4 wires
-
Cooling:
-
Forced air cooling
-
Duty Cycle:
-
Continuous work
-
Control mode:
-
Manually control
-
Delivery time:
-
30 Work Days
Quick Details
-
Warranty:
-
12 month
-
Power:
-
1000kW
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
Rata
-
Model Number:
-
RT1000KWLBMO
-
Name:
-
1000kW Manual/Auotmatic Control AC load bank
-
Purpose:
-
Test generator, transformer and UPS
-
Certificate:
-
ISO9001/14001/45001/CE
-
Product type:
-
Resistive load bank
-
Voltage:
-
400V/Customized
-
Load Connection:
-
3 phase 4 wires
-
Cooling:
-
Forced air cooling
-
Duty Cycle:
-
Continuous work
-
Control mode:
-
Manually control
-
Delivery time:
-
30 Work Days

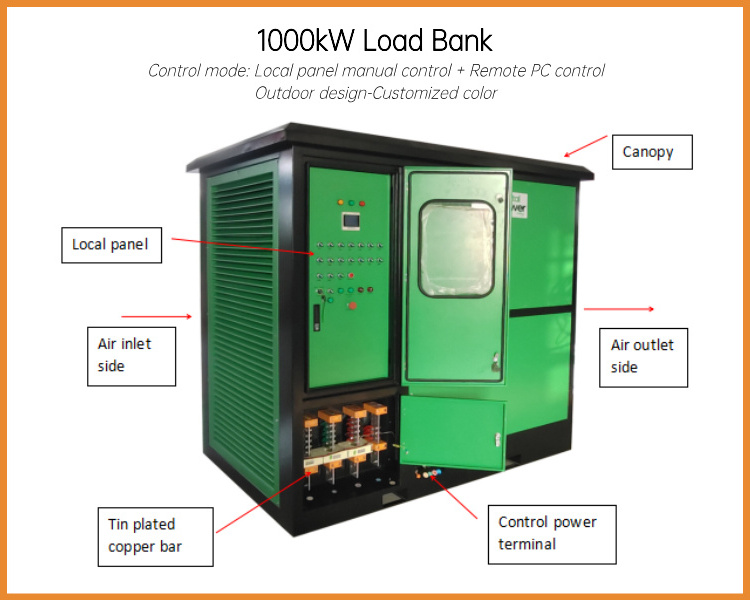

1000kW Manual/Auotmatic Control AC load bank
HS code: 903089909
Certificates: ISO9001:2015,ISO14001:2015,ISO45001:2018,CE
OEM,ODM are available.
Product Paramenters
|
1000kW Load Bank Main Parameters
|
|
|
|
|
||||
|
Rated voltage
|
AC400V/690V/customized
|
|
|
|
||||
|
Rated power
|
1000kW
|
|
|
|
||||
|
Frequency
|
50/60Hz
|
|
|
|
||||
|
Power factor
|
1.0
|
|
|
|
||||
|
Control mode
|
Local manual+remote automatic control
|
|
|
|
||||
|
IP rating
|
IP55,IP23 when using
|
|
|
|
||||
|
Power connect
|
Tin plated copper bar
|
|
|
|
||||
|
Control power
|
Terminal,external power: 380VAC,3P4W
|
|
|
|
||||
|
Steps
|
1kW,2kW,2kW,5kW,10kW,20kW,20kW,50kW,100kW×9
|
|
|
|
||||
|
Loading accuracy
|
≤ ±3%
|
|
|
|
||||
|
Resistor
|
8020 NiCr finned resistor
|
|
|
|
||||
|
Cooling
|
Forced air cooling,horizontal air inlet/outlet
|
|
|
|
||||
|
Protection
|
Short circuit,over current,high temperature,fan fault protection,phase sequence, emergency stop
|
|
|
|
||||
|
Color
|
RAL7035 or customized
|
|
|
|
||||
|
Dimension
|
2100*1510*1955mm
|
|
|
|
||||
|
Weight
|
1800kg
|
|
|
|
||||
|
Packing
|
Wooden case+wooden pallet
|
|
|
|
||||
Details Images
1000kW Load Bank Factory Test Video
Packing process: wooden pallet + wrapping film+f
oam board
+wooden case+belt
