Quick Details
-
Battery Type:
-
LiMnO2
-
Battery Package:
-
500 pieces per package, 3-8k pieces per carton, or 5 pieces per card
-
Cut off voltage:
-
Continuously discharged under 15kΩ load till 2.0V end-voltage
-
Safety Test Passed:
-
Vibration,Drop,Crash,Short Circuit,Impact,Forced Discharge...
-
Battery Performance:
-
Stable Performance, No Leakage, No Explosion, No Fire
-
On-load/Off-load voltage:
-
3.00v-3.35v (15kΩ load after 0.8S)
-
Main Structures:
-
Manganese(Mn) dioxide(O2) cathode, lithium anode, organic electrolyt
-
Defective Rate:
-
Controlled within 3‰
-
Size:
-
11.6mm*3.05mm
Quick Details
-
Brand Name:
-
QIDE or OEM
-
Model Number:
-
CR2032 Pre-Discharged type/
-
Place of Origin:
-
Guangdong, China
-
Battery Type:
-
LiMnO2
-
Battery Package:
-
500 pieces per package, 3-8k pieces per carton, or 5 pieces per card
-
Cut off voltage:
-
Continuously discharged under 15kΩ load till 2.0V end-voltage
-
Safety Test Passed:
-
Vibration,Drop,Crash,Short Circuit,Impact,Forced Discharge...
-
Battery Performance:
-
Stable Performance, No Leakage, No Explosion, No Fire
-
On-load/Off-load voltage:
-
3.00v-3.35v (15kΩ load after 0.8S)
-
Main Structures:
-
Manganese(Mn) dioxide(O2) cathode, lithium anode, organic electrolyt
-
Defective Rate:
-
Controlled within 3‰
-
Size:
-
11.6mm*3.05mm
Good Times CR-2032 Lithium Button Style Battery for Watches and Small Electronics
1. [ SPECIFICATION ]
1. Nominal Voltage: 3V
2. Size: D20*H3.2mm
3. Stable performance
4.
High discharge capacity
5. Battery type: Li-MnO2
6. Leakproof performance
7. Best quanlity, reasonable price
8. Package in blister card, logo printing, and any OEM/ODM requirement is warmly welcomed
9. Small electronic items demand even smaller batteries. Our button cells provide high energy in small packages.
They are suitable for car keys, calculators, cameras, remote control and many other electronic gadgets.
Feature:
1.No effect memory
2.Environmental friendly
3.OEM, ODM is warmly welcomed
4.Certificates:
CE, ROHS, SGS, MSDS
5.Model:
CR2032 SC/LED/HT/MX/JP/BG
6.Battery Holder and solder tabs are available
7.Application: Watches, Cameras, Smoking Alarm, Computer Peripherals, MP3/4,
Medical Equipment, Memory Backup, Lighting and Communication Equipments.
8.Other similar Lithium Manganese Button cells are showed as the following form:
2. [ RATINGS ]
3. [ PERFORMANCE AND TEST METHODS ]
Unless otherwise stated, all the testing is carried out under the condition: environmental temperature , 20℃ ~25 ℃ ; environmental humidity , 65 ± 20%.
4.[SUGGESTIONS AND CAUTIONS ]
4.1 Install batteries correctly.
4.2 E nsure the contact points to be clean and conductive.
4.3 D o not mix different type s , different brand s batter ies to serve together.
4.4 D o not heat, recharge the batteries.
4.5 D o not dispose of the batteries in fire .
4.6 K eep away from the small children, if swallowed promptly see doctor.
4.7 P ay attention to the producing date

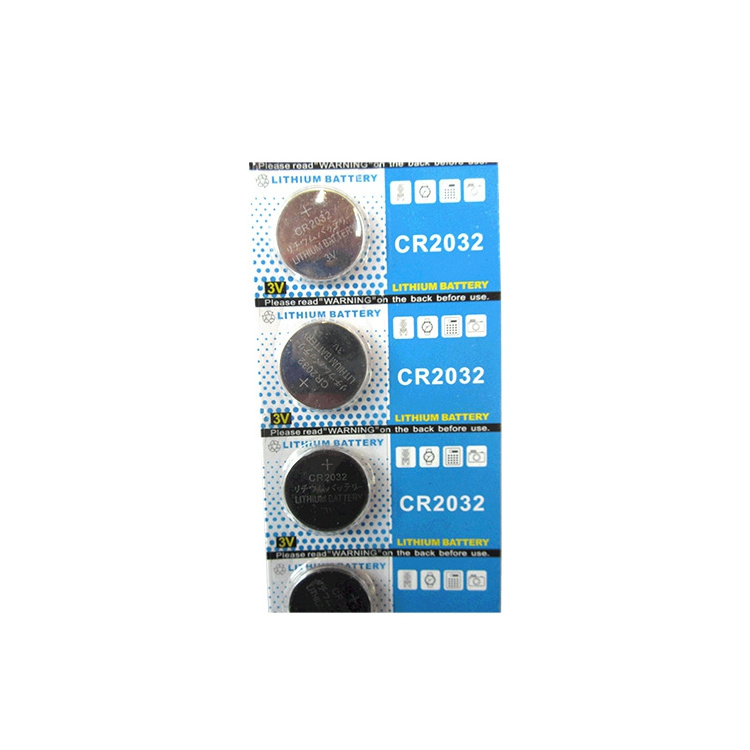

5 CR2032 batteries per blister card, 4*5 batteries per tray, 20*25 batteries per package, 500*6/12 batteries per box.
Carton size is 28*17.5*30.5cm for 3,000pcs, 9.0kg net weight, 9.2kg gross weight/ 34.5*27.5*27cm for 6,000pcs, 18kg net weight, 20kg gross weight.
