Quick Details
-
Power:
-
1.0Kw - 8.0Kw
-
Dimension(L*W*H):
-
100*50*150
-
Weight (KG):
-
100
-
Certification:
-
CCC
Quick Details
-
Type:
-
Drying Oven
-
Place of Origin:
-
China
-
Voltage:
-
220V
-
Power:
-
1.0Kw - 8.0Kw
-
Dimension(L*W*H):
-
100*50*150
-
Weight (KG):
-
100
-
Certification:
-
CCC
Products Description

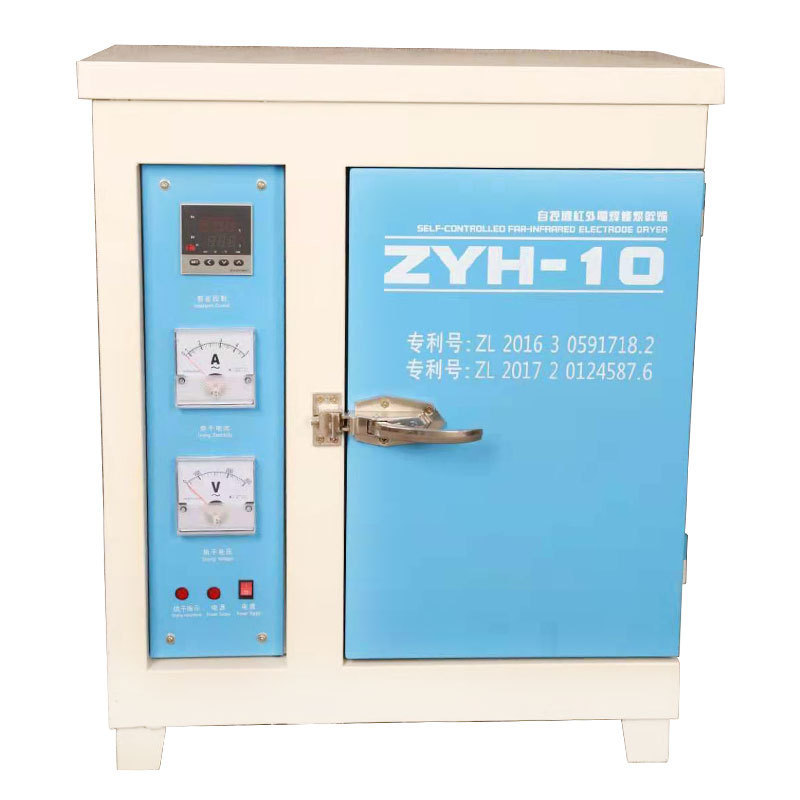

Self-controlled far infrared electrode dryer
Electrodes invade water during manufacture, transportation and storage, so they must be dried before use to remove water from the coating.During the welding process, hydrogen remains in the weld due to the decomposition of water, resulting in cracks in the weld and welding accidents.
The self-controlled far-infrared electrodes drying oven adopts far-infrared radiation heating technology, which has the advantages of small heat loss, high efficiency, high temperature control accuracy and uniform heating compared with the box furnace for general heat treatment.It can realize automatic temperature control, timed end and convenient operation, and can achieve very satisfactory drying effect.It is widely used in construction machinery, shipbuilding, power, steel structure, chemical industry, petroleum, city construction, etc.
Product Paramenters
|
Model
|
Input voltage
|
Power
|
Maximum drying temperature
|
Electrode capacity
|
|
ZYH-10
|
220V
|
1.0KW
|
500℃
|
10kg
|
|
ZYH-20 / ZYHC-20
|
220V
|
1.8KW
|
500℃
|
20kg
|
|
ZYH-30 / ZYHC-30
|
220V
|
2.8KW
|
500℃
|
30kg
|
|
ZYH-40 / ZYHC-40
|
220V
|
3.0KW
|
500℃
|
40kg
|
|
ZYH-60 / ZYHC-60
|
220V
|
4.8KW
|
500℃
|
60kg
|
|
ZYH-100 / ZYHC-100
|
220V
|
6.4KW
|
500℃
|
100kg
|
|
ZYH-150 / ZYHC-150
|
220V
|
7.5KW
|
500℃
|
150kg
|
|
ZYH-200 / ZYHC-200
|
220V
|
8.5KW
|
500℃
|
200kg
|
Details Images
Control switch
Safer operation
Stainless steel, far infrared heating
Corrosion resistance, long service life, uniform heating of layered structure, more power-saving by far infrared heating technology
Thermocouple hole
More accurate temperature monitoring
Welding application
After-sale Service
Perfect after-sales service system
1. 24h online customer service, timely reply.
2. The product is guaranteed for 12 months and the core parts are guaranteed for three years.
3. Video online technical support.
4. Free spare parts.
