Quick Details
-
Brand Name:
-
HuaZheng
-
Model Number:
-
HZ-5100
-
Accuracy Class:
-
/
-
Operating Temperature:
-
/
-
Dimensions:
-
/, 300*230*220(mm)
-
Product name:
-

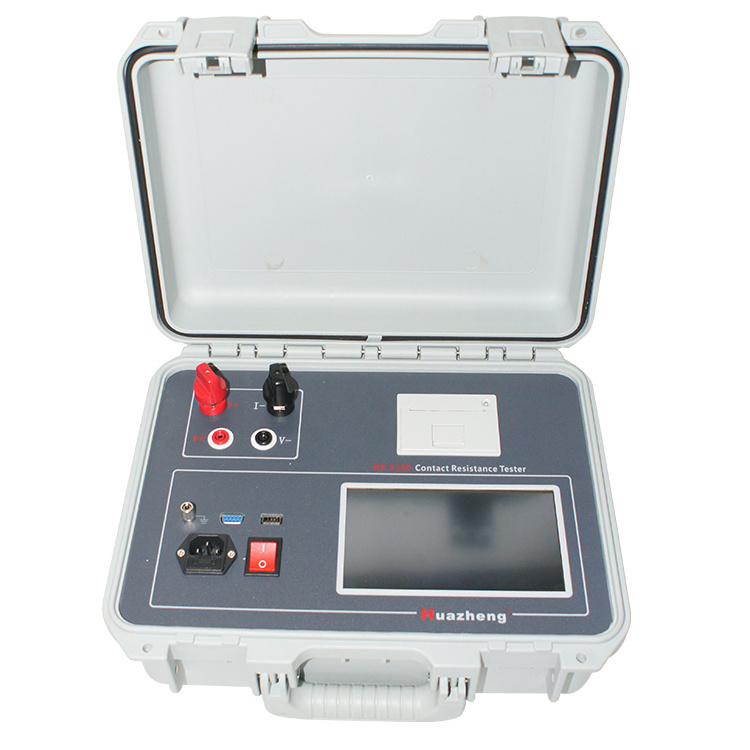

100A 200A Contact Resistance Tester Low Price Loop Resistance Meter
-
Condition:
-
new
-
Certification:
-
ISO9000
-
Humidity range:
-
≤85%RH
-
Open circuit voltage:
-
10V
-
Output current:
-
100A
-
Operating power:
-
AC220V±10%
-
Weight:
-
7kg
-
Temperature range:
-
-10℃~50℃
Quick Details
-
Measuring Range:
-
/
-
Testing Voltage:
-
/
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
HuaZheng
-
Model Number:
-
HZ-5100
-
Accuracy Class:
-
/
-
Operating Temperature:
-
/
-
Dimensions:
-
/, 300*230*220(mm)
-
Product name:
-
100A 200A Contact Resistance Tester Low Price Loop Resistance Meter
-
Condition:
-
new
-
Certification:
-
ISO9000
-
Humidity range:
-
≤85%RH
-
Open circuit voltage:
-
10V
-
Output current:
-
100A
-
Operating power:
-
AC220V±10%
-
Weight:
-
7kg
-
Temperature range:
-
-10℃~50℃
High Current Contact Resistance Tester Loop Resistance Meter 100a micro ohm meter
|
MAIOR TECHNICAL INDICATORS |
|
|
Current measurement |
50A, 100A |
|
Range |
0~ 100mΩ ( 50A ) 0 ~ 50mΩ ( 100A ) |
|
Resolution |
0.1µΩ At Min. |
|
Precision |
± ( 0.5%±2 ) |
|
Power consumption |
1000W |
|
Power supply |
Base on your request |
