Quick Details
-
Brand Name:
-
WTJX
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
2000*1200*1550mm
-
Weight:
-
1200 KG
-
Product name:
-
Card Punching Machine
-
Usage:
-
business card,plastic id card,playing card cutting
-
Cutting Material:
-
PVC,Paper, PC, Mixed material
-
Output:
-
28000PCS/H
-
Punching precision:
-
±0.05mm
-
Sheet Thickness:
-
0.15~2.0mm
-
Advantage:
-
High Accuracy
-
Control system:
-
PLC+HMI
-
Power Supply:
-
380V/3PH/50HZ
-
Air Pressure:
-
0.6MPa
Quick Details
-
Type:
-
Punching Machine
-
Marketing Type:
-
High Quality
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
WTJX
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
2000*1200*1550mm
-
Weight:
-
1200 KG
-
Product name:
-
Card Punching Machine
-
Usage:
-
business card,plastic id card,playing card cutting
-
Cutting Material:
-
PVC,Paper, PC, Mixed material
-
Output:
-
28000PCS/H
-
Punching precision:
-
±0.05mm
-
Sheet Thickness:
-
0.15~2.0mm
-
Advantage:
-
High Accuracy
-
Control system:
-
PLC+HMI
-
Power Supply:
-
380V/3PH/50HZ
-
Air Pressure:
-
0.6MPa
Finished Cards Sample

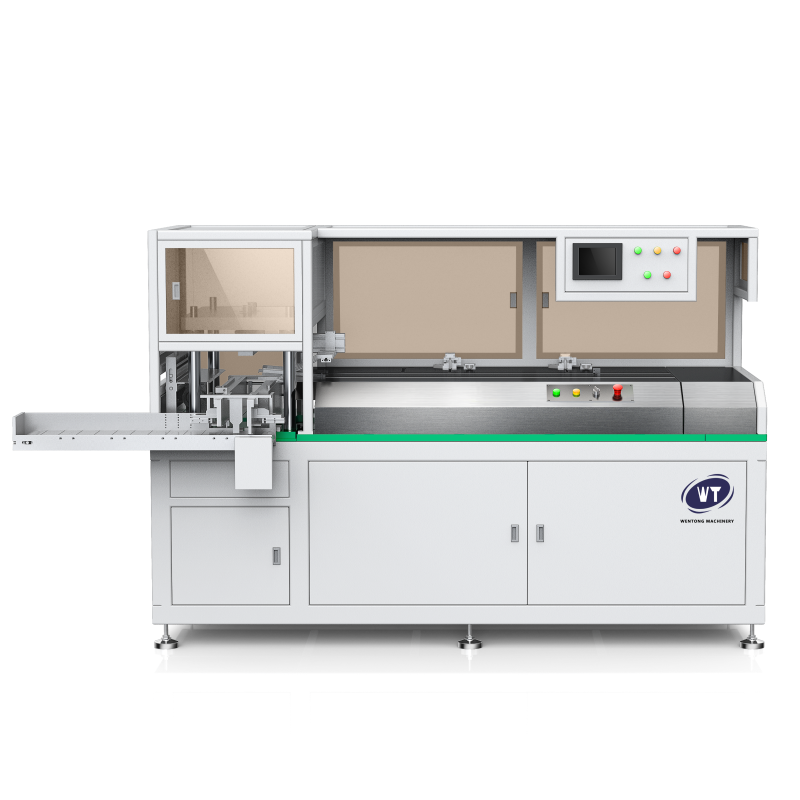

Product Description
Wentong designs and manufactures card punching machines suited to produce paper and plastic cards from materials in roll or sheet. These paper and plastic card punching machines are typically suitable for making membership cards, name cards, game cards, ID cards, access control cards, attendance cards, IC cards, special shaped cards, playing cards, children’s books, etc.
|
Power Supply
|
AC380V/50HZ
|
|
Dimension(L*W*H)
|
2000*1200*1550(mm)
|
|
Production ability
|
About 28000PCS/H
|
|
Cutting Precision
|
±0.05mm
|
|
Product thickness
|
0.25-1.20mm
|
|
Materials
|
PVC，Paper, PC, Mixed material
|
|
Power Source
|
Hydraulic/Servo system
|
Product features
A: The servo motor drives the screw to feed automatically, and the sensor is accurately positioned.
B
: The servo motor cooperates with the synchronization to achieve fast and stable card collection. Punching and card collection can be performed simultaneously.
C:
The machine integrates feeding, punching, collecting and discharging waste, realizing automatic production.
Packing&Shipping
Packaging and shipping methods
1. First wrap the machine with a plastic protective film;
2. Then vacuum packaging in the logistics park;
3. Finally, use the standard export wooden box for peripheral protection.
