Quick Details
-
Throat Depth (mm):
-
0 mm
-
Brand Name:
-
C&J
-
Power (kW):
-
0 kW
-
Weight (KG):
-
0 KG
-
Place of Origin:
-
Jiangsu, China
-
Voltage:
-
customer appoint
-
Dimension(L*W*H):
-
477x260x180 CM
-
Machine type:
-
sheet metal cutting machine
-
Application:
-
sheet metal cutting
-
Max. cutting thickness:
-
6mm to 20mm
-
Max. cutting length:
-
2500mm to 6000mm
-
Blade carrier type:
-
swing beam type
-
Control system:
-
Estun E21 NC Control
-
Blade cutting edges:
-
4 edges of lower blade and 2 edges of upper blade
Quick Details
-
Max. Cutting Width (mm):
-
Other
-
Max. Cutting Thickness (mm):
-
200 mm
-
Blade Length (mm):
-
0 mm
-
Throat Depth (mm):
-
0 mm
-
Brand Name:
-
C&J
-
Power (kW):
-
0 kW
-
Weight (KG):
-
0 KG
-
Place of Origin:
-
Jiangsu, China
-
Voltage:
-
customer appoint
-
Dimension(L*W*H):
-
477x260x180 CM
-
Machine type:
-
sheet metal cutting machine
-
Application:
-
sheet metal cutting
-
Max. cutting thickness:
-
6mm to 20mm
-
Max. cutting length:
-
2500mm to 6000mm
-
Blade carrier type:
-
swing beam type
-
Control system:
-
Estun E21 NC Control
-
Blade cutting edges:
-
4 edges of lower blade and 2 edges of upper blade
Product Description
Performance
(1) Steel-welded construction, vibration to eliminate stress, with high strength and good rigidity(2) Hydraulic top-drive, steadiness and reliability
(3) With adopts quick manual adjust device, cutting stroke can adjust to be suitable shearing short sheet
(4) With motor-driven back gauge and counter device
(5) With CE standard back-safety curtain, standard front support sheet frame
(6) Main electric components are from Siemens brand
(7) Oil seals are imported from Japan.

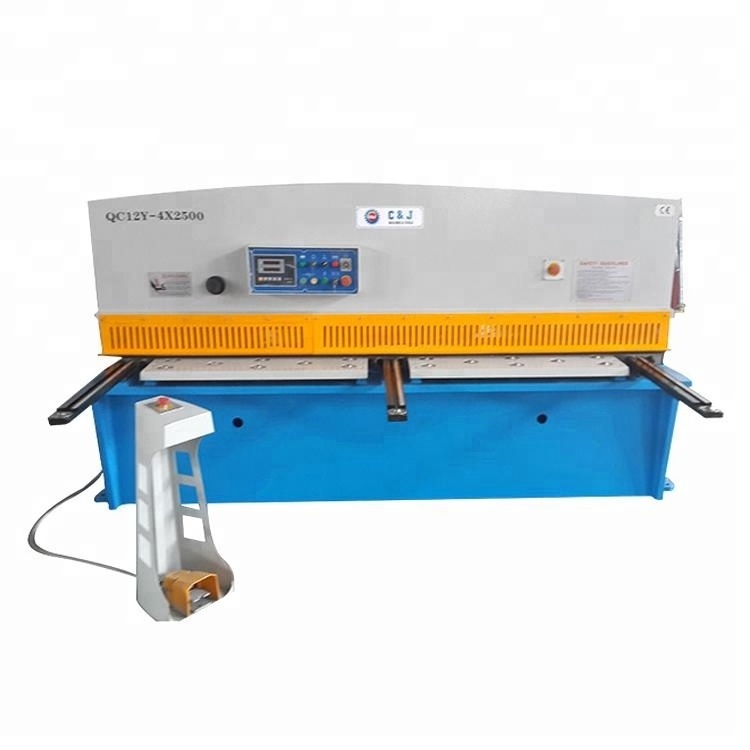

Hydraulic Swing Beam Shearing Machine QC12Y-4X2500
| Parameter | Shearing Thickness(mm) | Shearing Width(mm) | Shearing Angle | Number of stroke | Backgauge (mm) | Motor (kw) | Net W. (kg) | Overall Dimensions(mm) |
| 4*2000 | 4 | 2000 | 1° 30' | 600 | 4 | 3500 | 2550*1430*1560 | |
| 4*2500 | 4 | 2500 | 1° 30' | 600 | 4 | 4000 | 3100*1430*1560 | |
| 4*3200 | 4 | 3200 | 1° 30' | 600 | 5.5 | 5300 | 3840*1680*1670 | |
| 6*2500 | 6 | 2500 | 1° 30' | 18 | 20-600 | 7.5 | 6000 | 3040*1616*1620 |
| 6*3200 | 6 | 3200 | 1° 30' | 14 | 20-600 | 7.5 | 7200 | 3840*1610*1620 |
| 6*4000 | 6 | 4000 | 1° 30' | 10 | 20-600 | 7.5 | 10000 | 4640*1705*1700 |
| 6*6000 | 6 | 6000 | 1° 14' | 10 | 600 | 18.5 | 17000 | 6600*1950*1980 |
| 8*2500 | 8 | 2500 | 1° 30' | 14 | 20-600 | 11 | 6.500 | 3240*1610*1620 |
| 8*3200 | 8 | 3200 | 1° 30' | 10 | 20-600 | 11 | 7.800 | 4010*1610*1620 |
| 8*4000 | 8 | 4000 | 1° 30' | 8 | 20-600 | 11 | 11000 | 4680*1705*1700 |
| 8*6000 | 8 | 6000 | 1° 30' | 8 | 20-800 | 18.5 | 19000 | 6880*2210*2890 |
| 10*2500 | 10 | 2500 | 1° 48' | 12 | 20-600 | 15 | 8000 | 3350*2050*1950 |
| 10*3200 | 10 | 3200 | 1° 48' | 10 | 20-600 | 15 | 10000 | 4050*2050*1950 |
| 10*4000 | 10 | 4000 | 1° 30' | 8 | 10-800 | 18.5 | 12500 | 4850*2300*2200 |
| 10*6000 | 10 | 6000 | 1° 30' | 8 | 20-1000 | 30 | 20000 | 7020*2580*3280 |
| 12*2500 | 12 | 2500 | 1° 30' | 12 | 10-800 | 18.5 | 11000 | 3320*2050*2230 |
| 12*3200 | 12 | 3200 | 1° 30' | 10 | 10-800 | 18.5 | 12500 | 4020*2050*2230 |
| 12*4000 | 12 | 4000 | 2° | 8 | 10-800 | 22 | 15000 | 4850*2400*2200 |
| 12*6000 | 12 | 6000 | 1° 30' | 6 | 20-1000 | 37 | 23000 | 7020*2680*3380 |
| 12*8000 | 12 | 8000 | 1° 30' | 4 | 20-1000 | 45 | 33000 | 9020*2680*3380 |
| 16*2500 | 16 | 2500 | 2° 30' | 8 | 10-800 | 18.5 | 15000 | 4850*2400*2200 |
| 16*3200 | 16 | 3200 | 2 ° 30' | 7 | 10- 800 | 22 | 18000 | 4100*2060*2010 |
| 16*4000 | 16 | 4000 | 2° | 6 | 10-800 | 30 | 23000 | 4900*2400*2250 |
| 20*2500 | 20 | 2500 | 2° | 6 | 10-800 | 37 | 16000 | 3440*2088*2570 |
| 20*3200 | 20 | 3200 | 2° | 5 | 10-800 | 37 | 23000 | 4100*2350*2710 |
| 20*4000 | 20 | 4000 | 2° 30' | 4 | 10-800 | 37 | 30000 | 4920*2400*2790 |
| 25*2500 | 25 | 2500 | 3° | 5 | 40-1000 | 45 | 19000 | 3480*2410*2690 |
| 25*3200 | 25 | 3200 | 3° | 5 | 40-1000 | 45 | 26000 | 4180*2410*2690 |
| 25*4000 | 25 | 4000 | 3° | 5 | 40-1000 | 45 | 33000 | 4985*2410*2690 |
Hydraulic Swing Beam Shearing Machine QC12Y-4X2500
Machine photo:
