Quick Details
-
Shade Shape:
-
Round
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
STARLUX
-
Model Number:
-
ST706P
-
Input Voltage(V):
-
220-240V
-
Lamp Luminous Flux(lm):
-
1200
-
Working Temperature(℃):
-
-20 - 50
-
PCs/ Ctn:
-
5
-
Packing Dimension:
-
55x33x34CM
-
Product Dimension:
-
300X300X87MM
-
Product Weight（kg）:
-
0.9
-
Product name:
-
Led Ceiling Lamp
-
Power supply:
-
220-240V/AC
-
Detection angle:
-
180°/360°
-
Rated load:
-
16W
-
Lumen:
-
1200lm
-
Color:
-
white
-
Ambient light:
-
<20lux
-
Material:
-
PC Cover
-
IP Rating:
-
IP66
Quick Details
-
Lamp Body Material:
-
PC
-
Design Style:
-
Modern
-
Shade material:
-
Plastic
-
Shade Shape:
-
Round
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
STARLUX
-
Model Number:
-
ST706P
-
Input Voltage(V):
-
220-240V
-
Lamp Luminous Flux(lm):
-
1200
-
Working Temperature(℃):
-
-20 - 50
-
PCs/ Ctn:
-
5
-
Packing Dimension:
-
55x33x34CM
-
Product Dimension:
-
300X300X87MM
-
Product Weight（kg）:
-
0.9
-
Product name:
-
Led Ceiling Lamp
-
Power supply:
-
220-240V/AC
-
Detection angle:
-
180°/360°
-
Rated load:
-
16W
-
Lumen:
-
1200lm
-
Color:
-
white
-
Ambient light:
-
<20lux
-
Material:
-
PC Cover
-
IP Rating:
-
IP66
Welcome to use ST706P Light-Control LED Lamp!

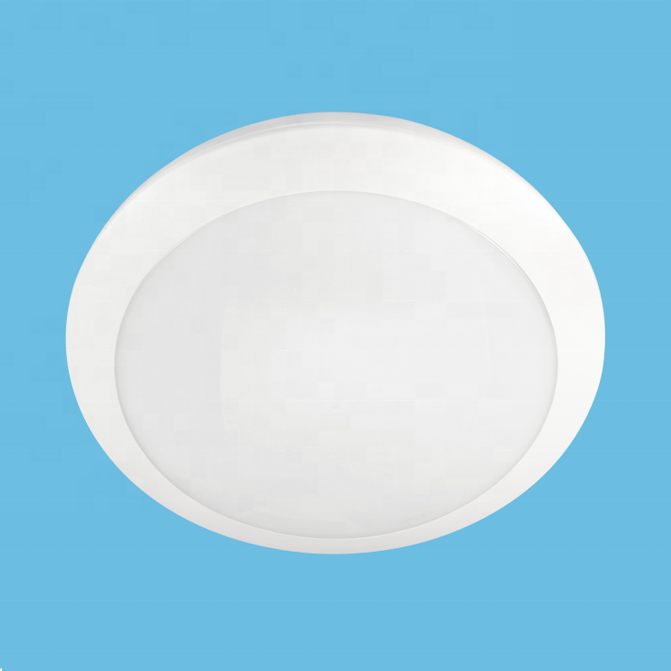

High Sensitivity ST706P Round Photocell Sensor Light Control Sensor LED Ceiling Light LED Sensor lamp Waterproof IP66
This kind of products is green environmental protection and energy saving, with low power consumption, long service life, high efficiency, high brightness, low calorific value, durable, etc. It is the first choice to replace the traditional fluorescent lamp! And it is available for factories, office buildings, restaurants, schools, families, industrial environment lighting, etc.
Specifications:
Power Source: 220 -240V/AC Detection Range: 180 ° /360°
Power Frequency: 50Hz/60Hz Rated Load: 16W(1200LM)
Installing Height: wall: 1.5-3.5m Ambient Light: <20 LUX
ceiling:2-4m
Lifetime and Warranty:
|
Lifetime (hr) |
26000-45000 at least |
|
Warranty |
5 years |
INSTALLATION: (see the diagram)
Ø Switch off the power. Unload the plastic clockwise to open it, screw off the screws on the lampshade and open the lampshade
Ø Put the wire through the wire holes with rubber band which is at the bottom pan of lamp, and connect the wire with terminal according to connect-wire diagram.
Ø Fix the metal bracket base on the ceiling through the holes on the bottom pan with enclosed inflated screws
Ø Switch on the power and test it.
CONNECTION-WIRE DIAGRAM :
TEST:
Ø When you test in daytime. You should cover a black opaque cloth on the product.
Ø When the cloth mantles the detection window of the photocell, the ambient light of the photocell is less than 20LUX, the lamp will be on.
NOTE:
Ø Electrician or experienced human can install it.
Ø Don’t use the product with cracked appearance.
Our company adopts automatic machines, such as: SMD, auto component inserter, wave solder, auto injection machines,the daily output is up to 20000-30000 pcs.
The concept of our company is"advocating new modern living environment",which focuses on researching and developing the contemporary household intelligent product.Our product can be truly satisfied for different customer's requirement,most of them are available with CE GS ROHS R&TTE REACH certification .
