Quick Details
-
Rated Voltage:
-
380/220V
-
Rated Current:
-
18-900a
-
Speed:
-
1500/1800
-
Frequency:
-
50/60
-
engine brand:
-
YUCHAI or dometic famous brand
-
Alternator brand:
-
stamford/marathon/copy
-
cooling methord:
-
water cooled
-
start mehod:
-
key or automatic
-
speed regulation:
-
eletronic governor
-
Controller:
-
LED display
-
ATS:
-
according to ur requirement
-
battery:
-
yes
-
voltage:
-
AVR
-
warranty:
-
one year or 1500running hours
-
Certification:
-
CE;ISO
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
NPT
-
Model Number:
-
10GFT-500GFT
-
Rated Voltage:
-
380/220V
-
Rated Current:
-
18-900a
-
Speed:
-
1500/1800
-
Frequency:
-
50/60
-
engine brand:
-
YUCHAI or dometic famous brand
-
Alternator brand:
-
stamford/marathon/copy
-
cooling methord:
-
water cooled
-
start mehod:
-
key or automatic
-
speed regulation:
-
eletronic governor
-
Controller:
-
LED display
-
ATS:
-
according to ur requirement
-
battery:
-
yes
-
voltage:
-
AVR
-
warranty:
-
one year or 1500running hours
-
Certification:
-
CE;ISO
Products Description
|

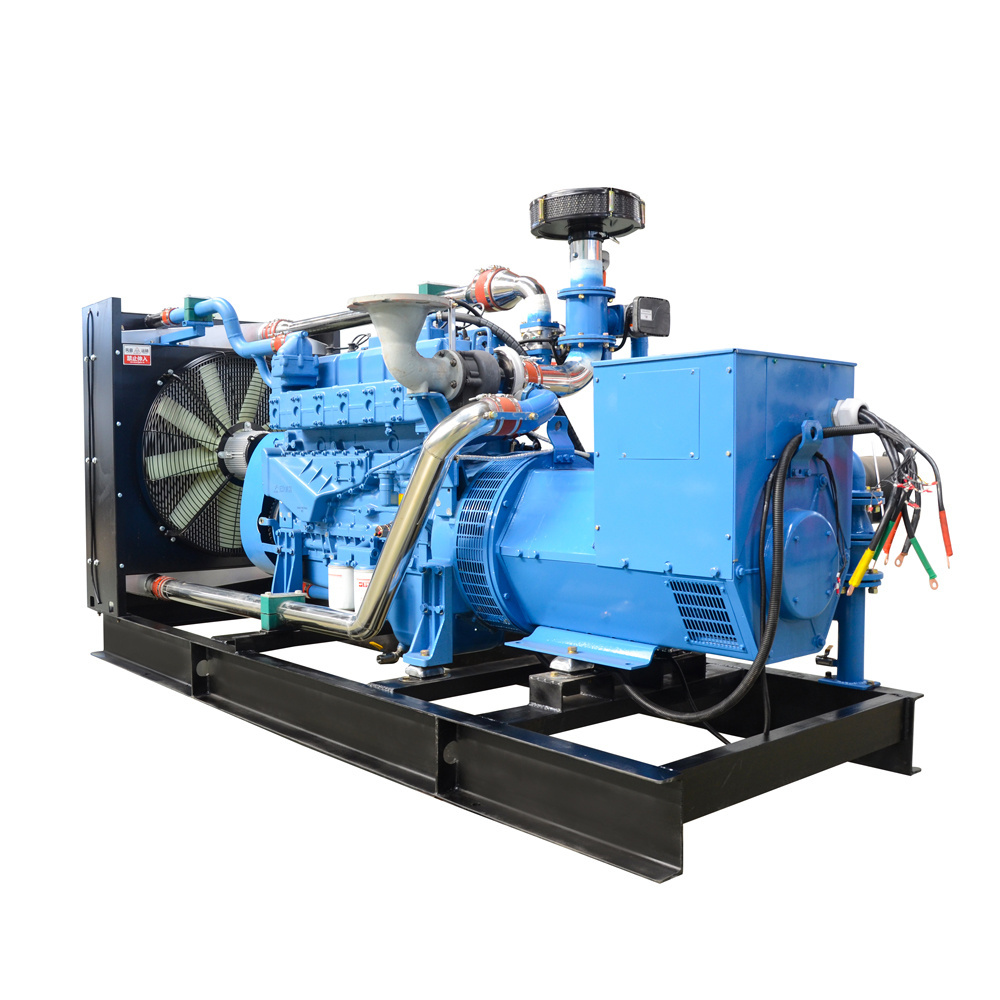

product name
|
10 kW biogas generator
|
|
|
|
|||
|
Fuel Type
|
biogas generator
|
|
|
|
|||
|
Generator set Model
|
10GFT
|
|
|
|
|||
|
Exciting Method
|
integrated
|
|
|
|
|||
|
Rated Power ( kW/kVA )
|
10/12.5
|
|
|
|
|||
|
Rated Current ( A )
|
18
|
|
|
|
|||
|
Rated Voltage ( V )
|
230/400
|
|
|
|
|||
|
Rated Frequency ( Hz )
|
50/60
|
|
|
|
|||
|
Rated Power Factor
|
0.8 LAG
|
|
|
|
|||
|
No Load Voltage Range
|
95% ~ 105%
|
|
|
|
|||
|
Stable Voltage Regulation Rate
|
≤±1%
|
|
|
|
|||
|
Instantaneous Voltage Regulation Rate
|
≤-15% ~ +20%
|
|
|
|
|||
|
Voltage Recover Time
|
≤3 S
|
|
|
|
|||
|
Voltage Fluctuation Rate
|
≤±0.5%
|
|
|
|
|||
|
Instantaneous Frequency Regulation Rate
|
≤±10%
|
|
|
|
|||
|
Frequency Stabilization Time
|
≤5 S
|
|
|
|
|||
|
Line-voltage Waveform Sinusoidal Distortion Rate
|
≤2.5%
|
|
|
|
|||
|
Overall Dimension ( L*W*H ) ( mm )
|
1250*600*1000
|
|
|
|
|||
|
Net Weight ( kg )
|
388
|
|
|
|
|||
|
Noise dB ( A )
|
＜93
|
|
|
|
|||
|
Overhaul Cycle ( h )
|
20000
|
|
|
|
|||
|
Engine
|
|
|
|
|
||||
|
Model
|
NQ15D1.5 ( Yanmar Technology )
|
|
|
|
||||
|
Type
|
Inline, 4 strokes, electric control ignition, pre-mixed stoichiometry burn, natural aspiration
|
|
|
|
||||
|
Cylinder Number
|
3
|
|
|
|
||||
|
Bore*Stroke ( mm )
|
80*90
|
|
|
|
||||
|
Total Displacement ( L )
|
1.5
|
|
|
|
||||
|
Rated Power ( kW )
|
15
|
|
|
|
||||
|
Rated Speed ( r/min )
|
1500/1800
|
|
|
|
||||
|
Fuel Type
|
BIOGAS
|
|
|
|
||||
|
Control panel
|
|
|
|
|
||||
|
Model
|
10KZY, NPT brand
|
|
|
|
||||
|
Display type
|
Multi-function LCD display
|
|
|
|
||||
|
Control Module
|
HGM9320 or HGM9510, Smartgen brand
|
|
|
|
||||
|
Operation Language
|
English
|
|
|
|
||||
|
Alternator
|
|
|
|
|
||||
|
Model
|
XN164C
|
|
|
|
||||
|
Brand
|
XN ( Xingnuo )
|
|
|
|
||||
|
Shaft
|
Single bearing
|
|
|
|
||||
|
Rated Power ( kW/kVA )
|
10/12.5
|
|
|
|
||||
|
Enclosure Protection
|
IP23
|
|
|
|
||||
|
Efficiency ( % )
|
80.7
|
|
|
|
||||
App monitoring example
Intelligent monitoring function of multi machine parallel connection / grid connection
The intelligent controller is used in the generator set, which can realize real-time automatic parallel / grid connection function, and can monitor and operate the generator set locally and remotely. Users can also monitor and operate the generator set through the cloud.
This function greatly facilitates the operation of customers, and provides customers with portable.
