Quick Details
-
Model Number:
-
IDEABOND or OEM design
-
Application:
-
facades/roofing/ceiling/rolling shutter
-
Thickness:
-
0.1mm-1.2mm
-
Width:
-
Maximum 1570mm, standard: 1240mm, 1270mm, options: 900mm, 1000mm, 1520mm, etc
-
Color:
-
Solid, Metallic, High gloss, pearl, spectra, mirror, brushed etc.
-
Length:
-
non-fixed or customized
-
Coating paint:
-
Polyester (PE),PVDF,Nano PVDF, FEVE, Super PE, epoxy,
-
Certification:
-
SGS / CE / CTC / ISO 9001:2008 / ISO 14001:2004 / GB/T 1774-1999
-
Inner diameter:
-
405mm, 505mm
-
outer diameter:
-
non-fixed or customized
-
Brand name:
-
Ideabond
-
Produce experience:
-
Since 1997
Quick Details
-
Grade:
-
1100, 3003, 3005, 3105, 8011
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
IDEABOND
-
Model Number:
-
IDEABOND or OEM design
-
Application:
-
facades/roofing/ceiling/rolling shutter
-
Thickness:
-
0.1mm-1.2mm
-
Width:
-
Maximum 1570mm, standard: 1240mm, 1270mm, options: 900mm, 1000mm, 1520mm, etc
-
Color:
-
Solid, Metallic, High gloss, pearl, spectra, mirror, brushed etc.
-
Length:
-
non-fixed or customized
-
Coating paint:
-
Polyester (PE),PVDF,Nano PVDF, FEVE, Super PE, epoxy,
-
Certification:
-
SGS / CE / CTC / ISO 9001:2008 / ISO 14001:2004 / GB/T 1774-1999
-
Inner diameter:
-
405mm, 505mm
-
outer diameter:
-
non-fixed or customized
-
Brand name:
-
Ideabond
-
Produce experience:
-
Since 1997

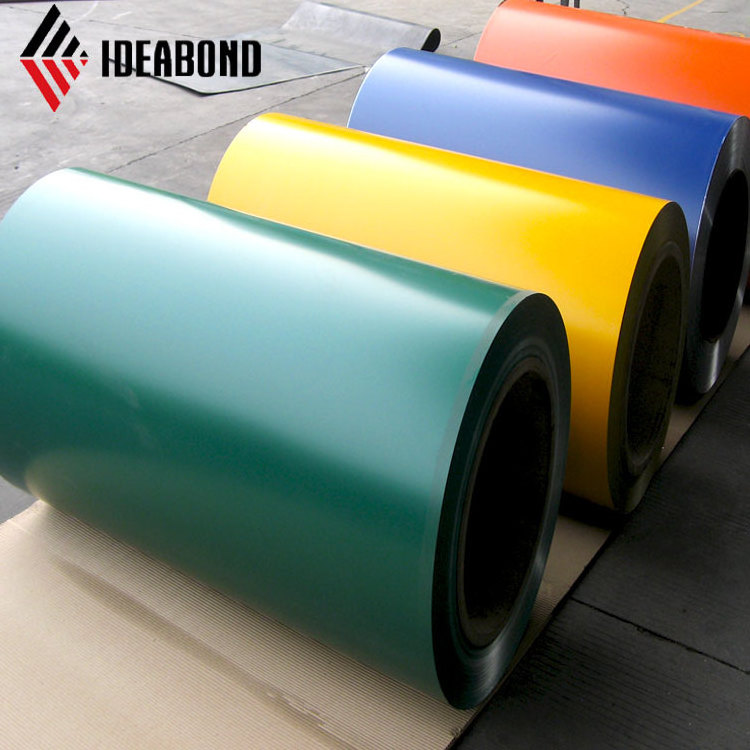

Foshan AA1100 / 3003 Colorful Tread Plate Aluminium Price from IDEABOND Manufactures Building Material China Supplier
Color- Coated Aluminium Coil Constitution Structure:
| Alloy | AA1100. 3003. 3004. 3105. 5006. 5052. 3011. etc . etc. |
| Temper | H16, H18. H24. H26. H28 |
| Thickness | From 0.013mm to 1mm |
| Width | Standard width 1240mm, 1270MM |
| Special width 1000mm. 1200mm. 1240mm, 1270mm. 1520mm. 1620mm | |
| Diameter | Standard dia: 1200mm |
| Interior dia: 150mm.405mm. 500mm. 505mm. 510mm | |
| Outer diameter: 1200mm | |
| Weight | 2.5 T/coil,3.0 T/coil |
| Coating thickness | PE:>=16 micron , PVDF:>=25 micron |
| Protective film | As per customer's request |
| Coating paint | PVDF, PE(Polyester), epoxy, polyamide, polyurethane |
| Color |
Soid. metallic, high gloss.stone.timber.brush.mirror.sparkling,
RAL or by customer requirements. |
| Weight | As per customer's request |
| Surface | Embossed, mill finish, coated |
| Gloss | 10-100% |
|
Coating Hardness
(pencil resistance) |
More than 2h |
| Coating adhesion | 1J |
| Impact Resistance | No peeling or cracking(50 kg/cm) |
| Application |
ACP.wall cladding.facades.roofs and canopies.ceilings.signboards.
blind window.display platforms.electrical panels.etc |
| Coating Thickness | PE coating:more than 16 micron |
| PVDF coating:more than 25micron |
Different specification of IDEABOND Color- Coated Aluminium Coil are available, We provide customized service.
Click here to contact us for colors and patterns options >>
Q: What is the minimum order quantity?
A: 800 square meters for aluminium composite panel, 1 ton for color coated aluminium coil, 1200 tubes for silicone sealant.
Q: What is delivery time?
A: 15 days after deposit. Except for public holidays.
Q: How can you guarantee the quality?
A: We have rigorous quality test system, from raw materials to finished products, the materials must be checked and signed by QC people.
Q: How long can I get a quote?
A: The quotation can be provided not longer than 24 hours on condition that we know all detailed requirements.
Q: Can I get a sample?
A: Yes we offer free samples. Delivery cost is to be paid by clients.
Q: Can you provide OEM service?
A: Yes,we can produce under your own brandname. Logo and design need to be provided so as to make customized brandname.
Q: Can I buy installation accessories from you?
A: Yes, we provide wet wall and dry wall system installation accessories. If you want to know more about the installation of aluminium composite panel, pls click the website: www.ideabond.com
Q: Why can I trust you and place order with you?
A: From 1997 to 2017 IDEABOND is with 20 years experience in this industry, we have served clients from more than 100 countries, IDEABOND is well-known for its quality and IDEABOND team win clients’ trust by honesty and down to earth business style.
