Quick Details
-
Color:
-
Red White Green Yellow Blue
-
insulation resistance:
-
≥2MΩ
-
Applying frequency:
-
AC50-60Hz
-
Protection degree:
-
The head IP65. IP67 is available on request
Quick Details
-
Brand Name:
-
Winston
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-

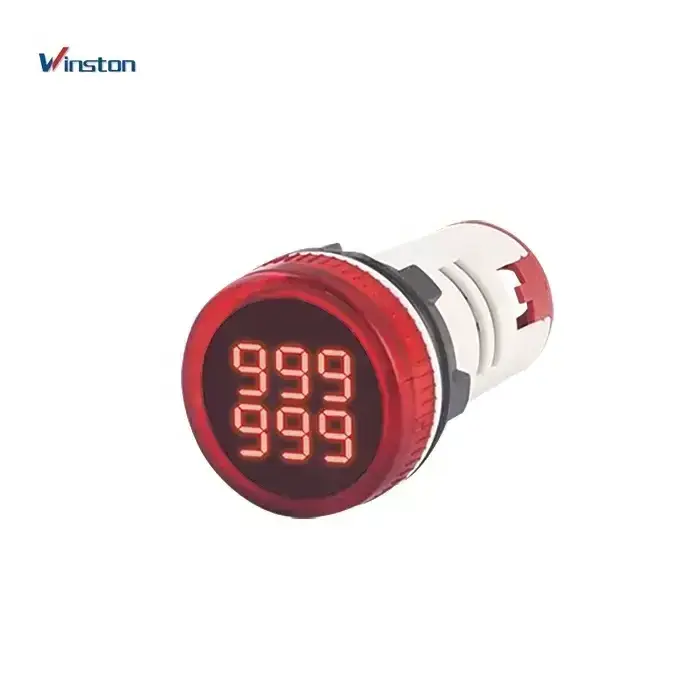

AD16-22GT
-
Color:
-
Red White Green Yellow Blue
-
insulation resistance:
-
≥2MΩ
-
Applying frequency:
-
AC50-60Hz
-
Protection degree:
-
The head IP65. IP67 is available on request
Modeland Explanatiln
Working Condition
1. ambient temperature:-25℃-+55℃,
2. relative humidity:≤98%,
3. nomally workable when vibration frequency is 2-80Hz with acceleration of.0.7g
4. pollution degree is 3, installation g roup is III
5. "TH" marked can work at damp-heat environment.
2. relative humidity:≤98%,
3. nomally workable when vibration frequency is 2-80Hz with acceleration of.0.7g
4. pollution degree is 3, installation g roup is III
5. "TH" marked can work at damp-heat environment.
Technical Data
1.Power frequency withstand voltage:2.5kv/1min(effective AC value),
2.insulation resistance:≥ 22MΩ,
3.Allowable voltage fluctuation: ± 20%,
4.Continuous operating life: ≥30000H.
5.Brigtnss: ≥100cd/m2,
6.CTI≥600,
7.Protection degree of the head IP65, IP67 is available on request,
8.Applying frequency:AC50-60Hz.
2.insulation resistance:≥ 22MΩ,
3.Allowable voltage fluctuation: ± 20%,
4.Continuous operating life: ≥30000H.
5.Brigtnss: ≥100cd/m2,
6.CTI≥600,
7.Protection degree of the head IP65, IP67 is available on request,
8.Applying frequency:AC50-60Hz.
Product Description
|
Name
|
Type
|
Color
|
Lamp voltage
|
|
Indicator
Counter |
AD16-22GT
|
White
|
0-999999
|
|
|
|
Green
|
|
|
|
|
Red
|
|
|
|
|
Yellow
|
|
|
|
|
Blue
|
|
Outine Dimensions
