Quick Details
-
Certificate:
-
ISO9001 CE ROHS
-
Standard::
-
364-2009
-
Working temperatu:
-
25℃~40℃
-
Working stress::
-
5Kpa
-
Power consumption::
-
≤2W/10VA
-
Rated Voltage:
-
220V
-
Display Type::
-
Analog and Digital
-
Rated frequency::
-
50/60 Hz
-
Minimum flow rate::
-
te: 0.016/0.025
Quick Details
-
Type:
-
Turbine meters, Orifice meters, Ultrasonic flow meters
-
Place of Origin:
-
China
-
Product name:
-
nitrogen gas flow meter
-
Certificate:
-
ISO9001 CE ROHS
-
Standard::
-
364-2009
-
Working temperatu:
-
25℃~40℃
-
Working stress::
-
5Kpa
-
Power consumption::
-
≤2W/10VA
-
Rated Voltage:
-
220V
-
Display Type::
-
Analog and Digital
-
Rated frequency::
-
50/60 Hz
-
Minimum flow rate::
-
te: 0.016/0.025
Digital Smart Turbine Liquid Nitrogen Gas Flow Meter
Gas meter

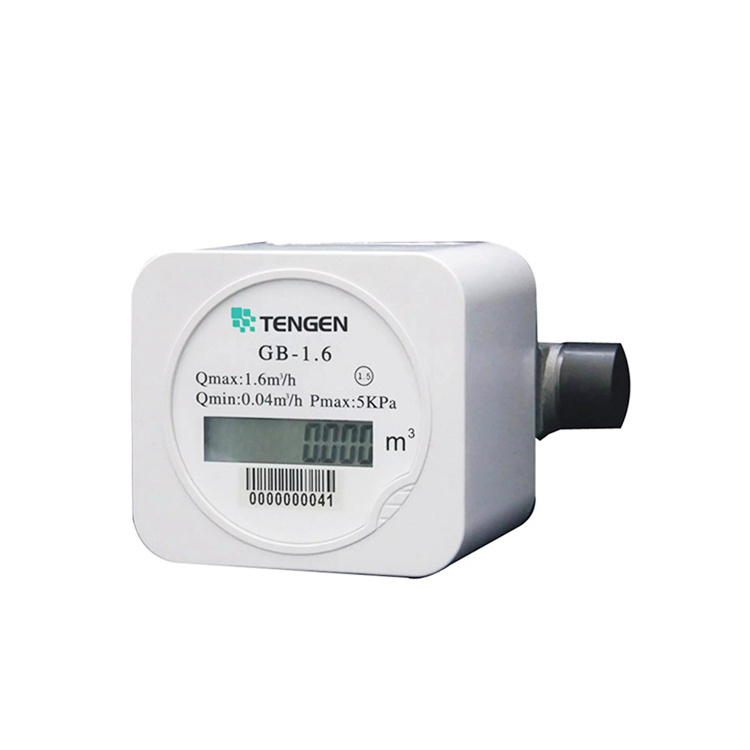

GB-1.6 electrical tamper smart gas meter case using aluminum alloy die casting, the plastic made of high strength plastic molding and processing. This high quality materials and rational structure design to ensure that the product in the long-term work conditions, still can reach the target. Advanced micro ultrasonic principles through the change of piezoelectric sensor airflow, with high quality microprocessor calculation, therefore, is the ideal gas industry measuring instruments.GB 1.6 electrical tamper smart gas meter is suitable for natural gas, liquefied petroleum gas (LPG) and clean gas measurement.364-2009 standard.
GB-1.6 Display Aluminium Alloy case smart gas meter is in order to meet the market demand introduction of acoustic technology products, principle for air through aluminum alloy recessed, produce the vortex flow, its through the film piezoelectric patches, the vibration of the voltage signal, the voltage signal amplified, plastic and flow generation after proportional to the pulse signal. The monolithic integrated circuit to the pulse signal measurement and analysis, the conversion of the volume of a gas, single-chip microcomputer and the display and storage.
Main technical parameter:
| Item | Unit | technical parameters |
| Qn | m3/h | 1.6 |
| Qmax | m3/h | 1.6 |
| Qmin | m3/h | 0.04 |
| Pmax | KPa | 5 |
| Basic error | % | Qmin≤Q<0.1Qmax ±3 0.1Qmax≤Q≤Qmax ±1.5 |
| Gas tightness | In normal working conditions, the input 1.5 times the maximum working pressure, the gas meter not leak | |
| Overall dimensions | mm | 110×70×92 |
| Table joint thread | M21×1.5 | |
| Working temperature | ℃ | -20~45 |
| Relative humidity | RH | 95% |
| Counter displays | m3 | 0 |
| Unit volume pulse equivalent | dm3 | 0.1 |
| Item | Unit | Parameter |
| Qn | m³/h | 1.6 |
| Qmax | m³/h | 0.04 |
| Beginning Momentum | m³/h | 0.04 |
| Measuring Range | m³ | 0-99999.000 |
| Measuring Accuracy ClassB | B | |
| Pmax | Kpa | 5 |
| Basic Error | % | Qmim≤Q<0.1max±3 0.1Qmim≤Q≤Qmax±1.5 |
| Static Current | uA | <15 |
| Work Current | uA | <36 |
| Work voltage | v | The lithium battery 3.6 |
| Data Storage Life | year | 12 |
| Overall Dimension | mm | 110x70x92 |
| Screw Thread for Junction of Meter | M21x1.5 | |
| Weight | kg | 0.76 |
