Quick Details
-
Controller Type:
-
MPPT, PWM
-
Mounting Type:
-
Ground Mounting
-
Certificate:
-
CE
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
Sunpal
-
Model Number:
-
SP12KW3-HY
-
Output Voltage (V):
-
110-220V
-
Output Frequency:
-
50 60HZ
-
Work Time (h):
-
Depend On Sunshine Duration
-
Product name:
-

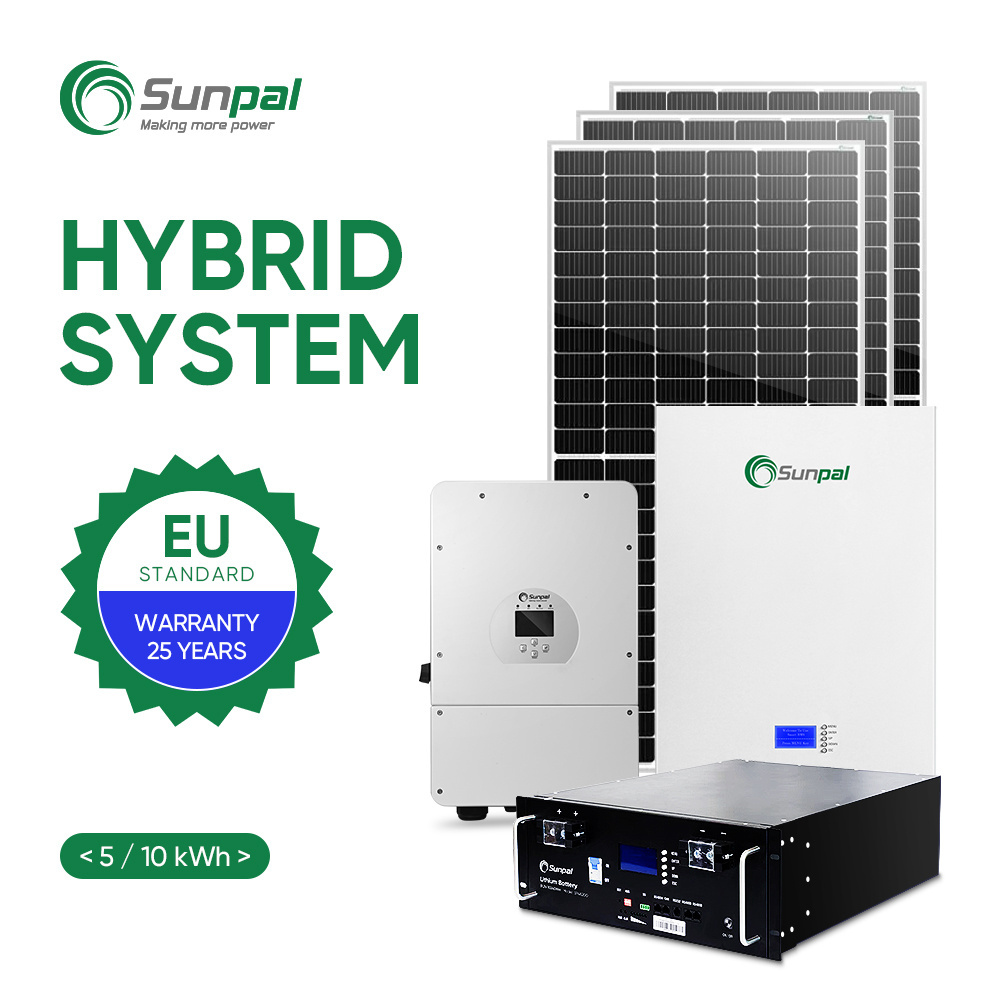

Household Hybrid Solar Energy Power Storage System
-
Specification:
-
5KW 8KW 10KW 12KW
-
System Type:
-
Off-grid Hybrid Solar Photovoltaic System
-
Solar panel:
-
Mono Crystalline Perc/Topcon Solar Panel
-
Inverter:
-
Single Phase/Split Phase/3Phase
-
Battery:
-
Lead Acid/LiFePO4 Lithium Battery
-
Mounting Structure:
-
Customzied
-
Usage:
-
Solar Energy Storage System
-
Packing:
-
Wooden Box
-
Technical Support:
-
Complete Technical Support
Quick Details
-
Application:
-
Home
-
Solar Panel Type:
-
Monocrystalline Silicon
-
Battery Type:
-
Lead-Acid, Lithium Ion
-
Controller Type:
-
MPPT, PWM
-
Mounting Type:
-
Ground Mounting
-
Certificate:
-
CE
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
Sunpal
-
Model Number:
-
SP12KW3-HY
-
Output Voltage (V):
-
110-220V
-
Output Frequency:
-
50 60HZ
-
Work Time (h):
-
Depend On Sunshine Duration
-
Product name:
-
Household Hybrid Solar Energy Power Storage System
-
Specification:
-
5KW 8KW 10KW 12KW
-
System Type:
-
Off-grid Hybrid Solar Photovoltaic System
-
Solar panel:
-
Mono Crystalline Perc/Topcon Solar Panel
-
Inverter:
-
Single Phase/Split Phase/3Phase
-
Battery:
-
Lead Acid/LiFePO4 Lithium Battery
-
Mounting Structure:
-
Customzied
-
Usage:
-
Solar Energy Storage System
-
Packing:
-
Wooden Box
-
Technical Support:
-
Complete Technical Support
Products Description
Solar Panels
:
Convert the solar energy into DC electricity
Deep cycle Batteries : Stores solar electricity
Lithium Ion Battery ： Solar energy storage,such as：powerwall,stackable battery
Hybrid/Off grid lnverter ： Convert DC elecricity into AC electricity,same quality as the utity elecricity and regulates the AC
charge to the batteries from the utlity or generator source
Deep cycle Batteries : Stores solar electricity
Lithium Ion Battery ： Solar energy storage,such as：powerwall,stackable battery
Hybrid/Off grid lnverter ： Convert DC elecricity into AC electricity,same quality as the utity elecricity and regulates the AC
charge to the batteries from the utlity or generator source
|
System MODEL
|
SP5KW-HY
|
SP8KW-HY
|
SP10KW-HY
|
SP12KW-HY
|
||||
|
PV System Size Nominal (kWp)
|
5.5
|
8.8
|
11
|
13.2
|
||||
|
PV MODULE SPECIFICATIONS (*half cell mono)
|
|
|
|
|
||||
|
Power (W)
|
550
|
|
|
|
||||
|
Vmp (V)
|
41.96
|
|
|
|
||||
|
Dimensions (L x W x H) (mm)
|
2279*1134x35
|
|
|
|
||||
|
Certififications
|
CE / TUV (IEC 61215 & IEC 61730)
|
|
|
|
||||
|
INVERTER SPECIFICATIONS
|
|
|
|
|
||||
|
Inverter Size (kW)
|
5
|
8
|
10
|
12
|
||||
|
Max DC Power (W)
|
6500
|
10400
|
13000
|
15600
|
||||
|
Max DC Voltage (V)
|
500
|
|
1000
|
|
||||
|
MPPT Voltage Range(V)
|
150-425
|
125-425
|
200-650
|
200-650
|
||||
|
Output Voltage
|
220,230Vac
|
|
220/380,230/400Vac
|
|
||||
|
UPS (Off Grid Model with Battery)
|
|
|
|
|
||||
|
Rated Power (VA)
|
5000
|
8000
|
10000
|
12000
|
||||
|
Max DC Charge/Discharge Current(A)
|
120
|
190
|
210
|
240
|
||||
|
Max Power(W)for 10 Seconds
|
7500
|
12000
|
15000
|
18000
|
||||
|
BATTERY BANK SPECIFICATIONS
|
|
|
|
|
||||
|
Battery Type
|
Li-Ion(LifePO4)
|
|
|
|
||||
|
Total Batteries
|
1
|
2
|
3
|
4
|
||||
|
Battery Bank Power(kWh)
|
4.8
|
9.6
|
14.4
|
19.2
|
||||
|
Battery Voltage (V)
|
48
|
|
|
|
||||
|
Battery Current(Ah)
|
100
|
|
|
|
||||
|
Number of PV Modules
|
10
|
16
|
20
|
24
|
||||
System Components
Sunpal have our own professional team that can equip you with the right solar energy system according to your need !
Sunpal Project Case
The system has three Working Modes:
Self consume
Photovoltaic gives priority to power the user load, and excess solar energy charges the batteries.When the battery is fully
charged, the excess power can flow to the grid or photovoltaic limited power operation.
Self-use mode is the most popular choice.
Battery first
Photovoltaic gives priority to charging batteries, and the excess power will supply the user load.When the PV power is
insufficient to supply the load, the grid will supplement it. The batteries are fully used as backup power.
Mixed mode
The time period of mixed mode (also known as "economic mode") is divided into peak period, normal period and valley period.The working mode of each time period can be set through the electricity price of different time periods to achieve the most economical effect.
Self consume
Photovoltaic gives priority to power the user load, and excess solar energy charges the batteries.When the battery is fully
charged, the excess power can flow to the grid or photovoltaic limited power operation.
Self-use mode is the most popular choice.
Battery first
Photovoltaic gives priority to charging batteries, and the excess power will supply the user load.When the PV power is
insufficient to supply the load, the grid will supplement it. The batteries are fully used as backup power.
Mixed mode
The time period of mixed mode (also known as "economic mode") is divided into peak period, normal period and valley period.The working mode of each time period can be set through the electricity price of different time periods to achieve the most economical effect.
