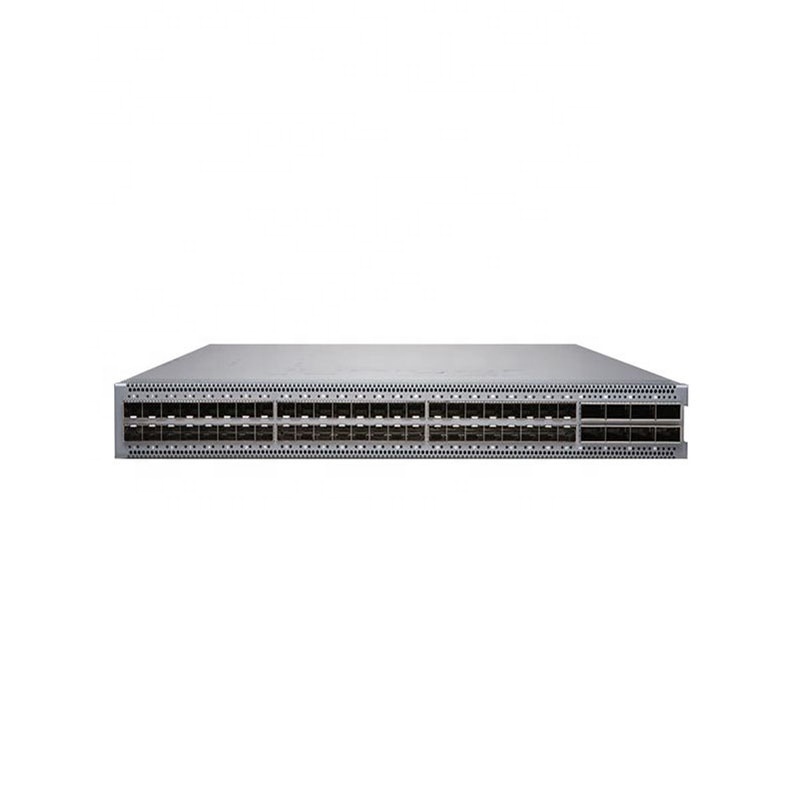

Juniper QFX5120 Switch 48 Port L3 Managed Network Ethernet Switch QFX5120-48Y-AFO2

Juniper QFX5120 Switch 48 Port L3 Managed Network Ethernet Switch QFX5120-48Y-AFO2

FOB Reference Price: Get Latest Price

≥1 Pieces

US $6600

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: /

Model Number:: QFX5120-48Y-AFO2

Place of Origin:: Beijing, China

Product Name:: QFX5120-48Y-AFO2

Condition:: NIB Original

Warranty:: One Year

Quick Details

Transmission Rate:: 10/100/1000Mbps

Communication Mode:: Full-Duplex & Half-Duplex

Switch Capacity:: 1.32 Bpps

Brand Name:: /

Model Number:: QFX5120-48Y-AFO2

Place of Origin:: Beijing, China

Product Name:: QFX5120-48Y-AFO2

Condition:: NIB Original

Warranty:: One Year

1Product Description

Juniper QFX5120 Switch 48 Port L3 Managed Network Ethernet Switch

QFX5120-48Y-AFO2

2 Product display

Dimensions (W x H x D)	1.72 x 17.36 x 20.48 in. (4.37 x 44.09 x 52.02 cm)
Switching Capacity	4 Tbps (bidirectional)/2 Bpps
Switching mode	Cut-through and store-and-forward
Max load	272 W
Typical load	247 W
Interface	2 management ports: 2 x RJ-45 ports 1GbE SFP: 48 10GbE SFP+: 48/80(with breakout cable) 25GbE SFP: 48/80 (with breakout cable) 40GbE QSFP+: 8 (each QSFP+ port can be configured as a 4 x 10GbE interface or as a 40 Gbps port) 100GbE QSFP28: 8 (each QSFP28 port can be configured as a 4 x 25GbE interface or as a 100 Gbps port) SFP GbE optical and copper module SFP+ 10GbE optical modules SFP+ direct attach copper (DAC) cables: 1/3/5 m twinax copper and 1/3/5/7 m active twinax copper SFP28 DAC cables: 1/3 m twinax copper SFP28 optics: Short reach (SR), long reach (LR) QSFP+ to SFP+: 10GbE direct attach breakout copper (1/3 m twinax copper cable)
Supported transceiver and direct attach cable	QSFP+ DAC cables: 1/3 m twinax copper QSFP+ optics: SR4, LX4, ESR4, ER4, LR4 QSFP28 optics: SR4, ER4, PSM4, CWDM4, LR4
Number of link aggregation groups (LAGs)	80
Number of ports per LAG	64
Layer 2 Features	STP—IEEE 802.1D (802.1D-2004) Rapid Spanning Tree Protocol (RSTP) (IEEE 802.1w); MSTP (IEEE 802.1s) Bridge protocol data unit (BPDU) protect Loop protect Root protect RSTP and VSTP running concurrently VLAN—IEEE 802.1Q VLAN trunking Routed VLAN interface (RVI) Port-based VLAN Private VLAN (PVLAN) VLAN translation Static MAC address assignment for interface Per VLAN MAC learning (limit) MAC learning disable Link Aggregation and Link Aggregation Control Protocol (LACP) (IEEE 802.3ad) MACsec with AES256 (QFX5120-48YM only) Virtual chassis—up to 2 members on QFX5120-48Y, QFX5120-32C and QFX5120-48T
Layer 3 Features (IPv4)	Static routing Routing protocols (RIP, OSPF, IS-IS, BGP) Virtual Router Redundancy Protocol (VRRP) Virtual router Dynamic Host Configuration Protocol (DHCP) relay Proxy Address Resolution Protocol (ARP)
