Quick Details
-
Design Style:
-
Modern
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
DINGRONG
-
Model Number:
-
prefab garage-S
-
Name:
-
ready made movable steel structure cheap prefab garage for sale
-
Keyword:
-
prefab garage
-
Wall:
-
eps sandwich panel
-
Roof:
-
eps sandwich panel
-
Frame:
-
Galvanized Steel+powder Coating
-
Door:
-
Steel Security Door
-
Color:
-
White or customized
-
floor:
-
MGO board
-
Size:
-
W3M*L5.95M*H2.8M
-
window:
-
PVC Sliding Window
Quick Details
-
Project Solution Capability:
-
graphic design, total solution for projects, Others
-
Application:
-
Office Building
-
Product Type:
-
prefab garage
-
Design Style:
-
Modern
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
DINGRONG
-
Model Number:
-
prefab garage-S
-
Name:
-
ready made movable steel structure cheap prefab garage for sale
-
Keyword:
-
prefab garage
-
Wall:
-
eps sandwich panel
-
Roof:
-
eps sandwich panel
-
Frame:
-
Galvanized Steel+powder Coating
-
Door:
-
Steel Security Door
-
Color:
-
White or customized
-
floor:
-
MGO board
-
Size:
-
W3M*L5.95M*H2.8M
-
window:
-
PVC Sliding Window

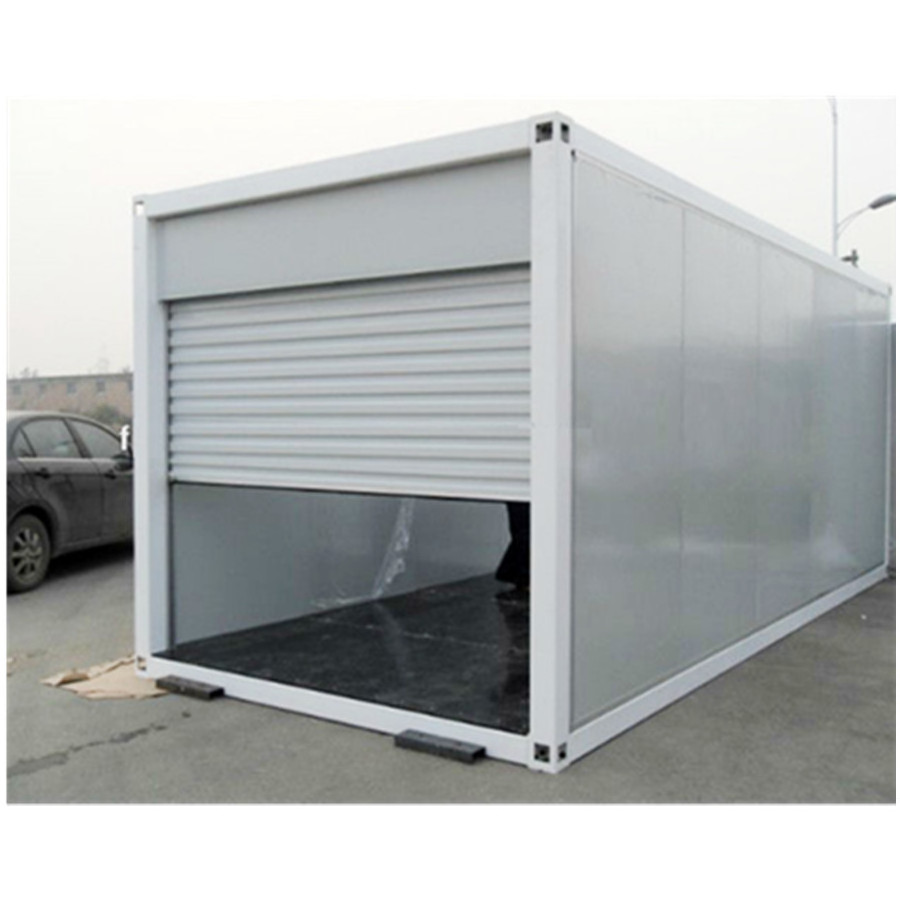

ready made movable steel structure cheap prefab homes house sea shipping cargo container garage for sale
contact us to get detailed information
This kind container house is designed from our collapsible container frame,the advantage is as follows
2. strong = main frame thickness is 2-3mm
3. with bigger size
standard flat pack container house is W2.25*L5.8*H2.60m or W2.438*L6.055*H2.6m
our this kind container house is with bigger size W3M*L5.95M*H2.8M
4. doesn't need a crane for installation as the 3m X 5.95m container house
is totally disasembled to easy handled sections and all that is required is re assembly.
5. they can be combined to make a bigger units or stacked 2-3 levels
6. widely used for accormmodation,office,bathroom etc
7.Because of big promotion now, these container houses are with a very competitive price
Container Engineering Report
Technical conditions
1.1 General Technical Condition
1)The structure can prevent the 8 magnitude earthquake.
2)The design of seismic grouping is the first group, the site characteristic cycle is considered 0.45s, the construction site category is considered by Class III, and the damping ratio of steel structure is 0.05. The maximum αmax of the horizontal earthquake influence coefficient is 0.04, which is calculated by 5 years.
3) Structural safety level is grade 2. The coefficient of importance is 1.0.
4) Conner fitting elevation plus or minus zero.
1.2 Materials
Normally,steel beams, steel columns, purlin are all used Q235B cold bending galvanized light steel.
strength of steel:f=215N/m2
1.3 Loading Combination
1.Calculation of floor Loading
(1)Bottom Flooring
Structure Weight 0.4 kN/m2
Dead Load Value 0.4 kN/m2
Live Load Value 3.0 kN/m2
(2)Roof board
Structure Weight 0.3 kN/m2
Dead Load Value 0.3 kN/m2
Live Load Value 0.5 kN/m2
2.Calculation of Wind loading
According to the 15 Design durable years, the basic wind pressure of wind loading is W0=0.3KN/m2
Special package way
