Quick Details
-
Brand Name:
-
TOPFRP
-
Model Number:
-
TOP2200
-
Surface Treatment:
-
All thread
-
Product Name:
-
High Strength Solid FRP Fiberglass Roof Anchor and Bolt
-
Material:
-
FRP
-
Diameter:
-
3-40mm
-
Density:
-
2.0-2.2g/cm3
-
Tensile Strength:
-
>550MPa
-
E-modulus:
-
30-41GPa
-
Resistance to alkali:
-
>75%
-
Feature:
-
High Strength,Corrosion Resistant
-
OEM:
-
Accepted
-
Other Name:
-
FRP bar
Quick Details
-
Application:
-
Construction/mining/tunnel/slope
-
Technique:
-
Pultrusion
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
TOPFRP
-
Model Number:
-
TOP2200
-
Surface Treatment:
-
All thread
-
Product Name:
-
High Strength Solid FRP Fiberglass Roof Anchor and Bolt
-
Material:
-
FRP
-
Diameter:
-
3-40mm
-
Density:
-
2.0-2.2g/cm3
-
Tensile Strength:
-
>550MPa
-
E-modulus:
-
30-41GPa
-
Resistance to alkali:
-
>75%
-
Feature:
-
High Strength,Corrosion Resistant
-
OEM:
-
Accepted
-
Other Name:
-
FRP bar

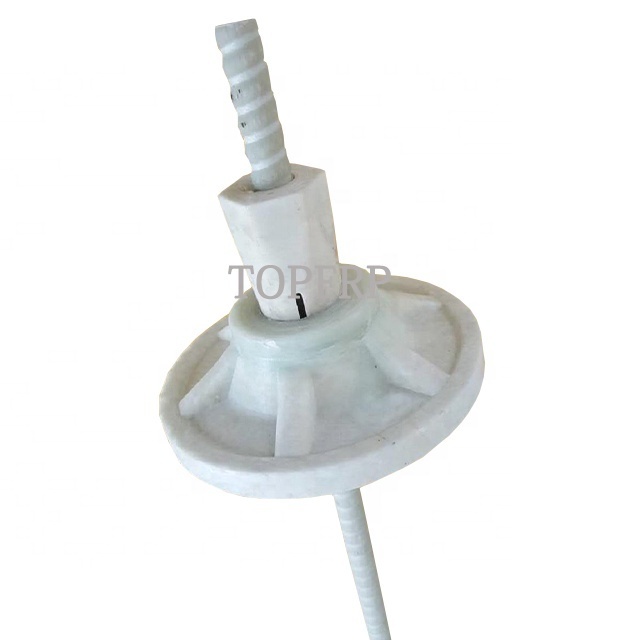

High Strength Solid FRP Fiberglass Roof Anchor and Bolt
--------------------------Main Features of Fiberglass Anchor Bolt------------------------
|
Light Weight
|
The weight is only 1/4 that of a steel bar with the same diameter. Therefore, the labor intensity is greatly reduced, and the transportation cost is reduced at the same time;
|
|
|
High Tensile Strength
|
The load is approximately double that of a steel bar with the same diameter.
|
|
|
High Corrosion Resistance,Anti-static,Cuttability,etc.
|
|
|
--------------------------Pultrusion Process of Fiberglass Anchor------------------------
-------------------------------Application of Fiberglass Anchor---------------------------
Fiberglass thread rod anchor has become a material for replacing steel bars in reinforced concrete structures, and have good corrosion resistance and electromagnetic neutrality.
1. widely used in highways, bridges, airports, terminals, stations, water conservancy projects, underground engineering and other fields
2. Suitable for corrosive environments such as sewage treatment plants, chemical plants, electrolysis tanks, manhole covers, and coastal defense projects.
3. Suitable for military engineering, confidential engineering, special engineering, etc.
-------------------------- Technical Index o f Fiberglass Anchor---------------------------
|
Diameter
(mm)
|
Cross Section
(mm2)
|
Density
(g/cm3)
|
Weight
(g/m)
|
Ultimate Tensile Strength
(MPa)
|
Elastic
Modulus
(GPa)
|
|
3
|
7
|
2.2
|
18
|
1900
|
>40
|
|
4
|
12
|
2.2
|
32
|
1500
|
>40
|
|
6
|
28
|
2.2
|
51
|
1280
|
>40
|
|
8
|
50
|
2.2
|
98
|
1080
|
>40
|
|
10
|
73
|
2.2
|
150
|
980
|
>40
|
|
12
|
103
|
2.1
|
210
|
870
|
>40
|
|
14
|
134
|
2.1
|
275
|
764
|
>40
|
|
16
|
180
|
2.1
|
388
|
752
|
>40
|
|
18
|
248
|
2.1
|
485
|
744
|
>40
|
|
20
|
278
|
2.1
|
570
|
716
|
>40
|
|
22
|
355
|
2.1
|
700
|
695
|
>40
|
|
25
|
478
|
2.1
|
970
|
675
|
>40
|
|
28
|
590
|
2.1
|
1195
|
702
|
>40
|
|
30
|
671
|
2.1
|
1350
|
637
|
>40
|
|
32
|
740
|
2.1
|
1520
|
626
|
>40
|
|
34
|
857
|
2.1
|
1800
|
595
|
>40
|
|
36
|
961
|
2.1
|
2044
|
575
|
>40
|
|
40
|
1190
|
2.1
|
2380
|
509
|
>40
|
