Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ZN
-
Voltage:
-
380/220
-
Dimension(L*W*H):
-
40HQ
-
Weight:
-
11000 kg
-
After Warranty Service:
-
Online support
-
HS CODE:
-
84411000
-
Certification:
-
CE
-
roll to sheet cutting machine:
-
paper cutting machine
Quick Details
-
Type:
-
Paper Cutting Machine
-
Production Capacity:
-
350 cuts
-
Max. workable width:
-
1400mm
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ZN
-
Voltage:
-
380/220
-
Dimension(L*W*H):
-
40HQ
-
Weight:
-
11000 kg
-
After Warranty Service:
-
Online support
-
HS CODE:
-
84411000
-
Certification:
-
CE
-
roll to sheet cutting machine:
-
paper cutting machine

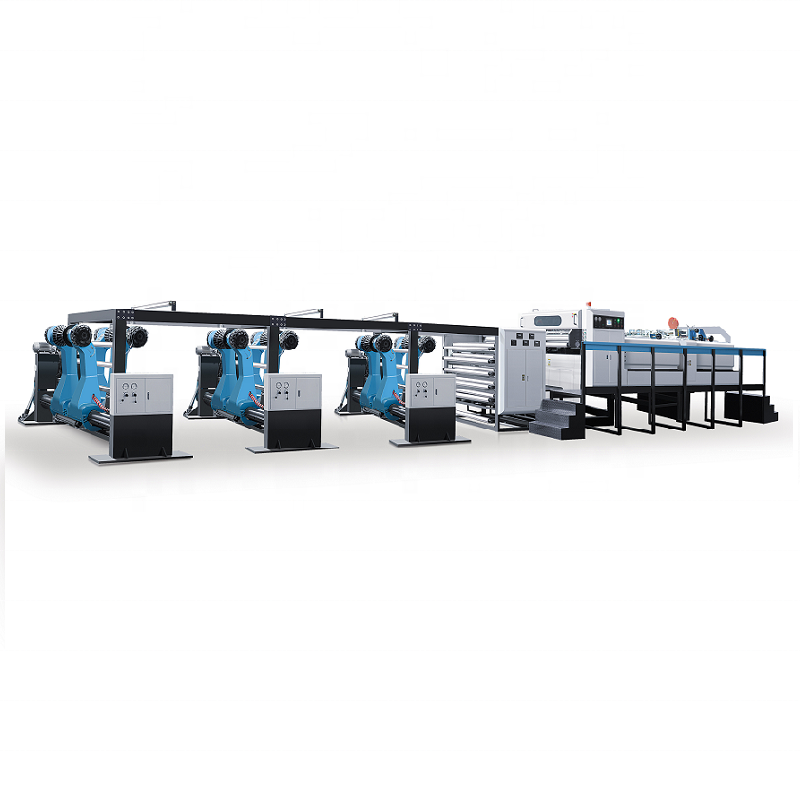

Roll Sheet Cutting Machine / Paper cutting machine
(CM1400/1700/1900)
3. 1 High-precision single knife cutting machine
3. 2 Prismatic adjustment system for paper
3. 3 Equipment of Electrostatic elimination
3. 4 Middle slitting and waste collection system
3. 5 Automatic counting and label inserting equipment
3. 6 Reel p aper transporting equipment ( t (including rail car 1 pair )
3. 7 Automatic paper trimming and collecting machine
3. 8 Electrical controlling system
3. 9 Driving motor system
3. 10 Accessory by machine
3. 11 Double arm oil pressure shaftless paper rack
3. 12 Automatic directing and paper tension controller
3. 13 Epuipment of automatic vacuum
3. 14 Operation system:LCD panel by operator
3. 15 Main drive system: Huichuan servo motor
| Model | CM-1400 | CM-1700 | CM-1900 |
| Cutting style | Upper blade cutting, down blade fixed | Upper blade cutting, down blade fixed | Upper blade cutting, down blade fixed |
| paper | 60-550g | 60-550g | 60-550g |
| Max paper diameter | 1650mm(65")Max | 1650mm(65")Max | 1650mm(65")Max |
| Max paper width | 1400mm(55")Max | 1700mm(67")Max | 1900mm(75")Max |
| Cutting size | 450-1300 mm | 450-1300 mm | 450-1300 mm |
| Accuracy | Cutting size Within 1,000mm,±0.3mm | Cutting size Within 1,000mm±0.3mm | Cutting size Within 1,000mm±0.3mm |
| Cutting size above 1.000mm,±0.1% | Cutting size above 1.000mm±0.1% | ±Cutting size above 1.000mm 0.1% | |
| Speed | 350cuts/min | 350cuts/min | 350cuts/min |
| Line speed | 350m/min | 350m/min | 350m/min |
