01 Control System:
.CNC Systems: FANUC, SIEMENS, MITSUBISHI,SYNTEC,GSK, etc..
.Beautiful and generous.
- Product Details
- {{item.text}}
Quick Details
-
Max. Spindle Speed (r.p.m):
-
1500 r.p.m
-
Max. Weight of Workpiece(kg):
-
300
-
Spindle Bore(mm):
-
52
-
Width of bed (mm):
-
400 mm
-
Spindle Motor Power(kW):
-
7.5/11
-
Travel (X Axis)(mm):
-
410 mm
-
Travel (Z Axis)(mm):
-
850 mm
-
Positioning Accuracy (mm):
-
±0.015
-
Repeatability (X/Y/Z) (mm):
-
±0.006
-
Place of Origin:
-
Shandong, China
-
Dimension(L*W*H):
-
2550*1550*1900
-
Brand Name:
-
GOLDCNC
-
Model Number:
-
CAK6180 CNC Lathe Machine
-
Voltage:
-
380V
-
Weight (KG):
-
2800
-
Marketing Type:
-
Hot Product CNC Lathe Machine 2024
-
CNC or Not:
-
CNC
-
Automatic Grade:
-
Automatic
-
Tail stock sleeve taper:
-
MT 5
-
Length:
-
2750
-
Max wcrtpiece length:
-
750/1000/1500/2000/3000mm
-
spindle speeds:
-
21~1500r/min
-
Weight:
-
3500
-
After-sales Service Provided:
-
Online support,Video technical support
-
Product name:
-
Low cost cnc lathe CAK6180 china horizontal cnc metal lathe machine
-
Keyword:
-
cnc lathe machine
Quick Details
-
Type:
-
Horizontal Automatic Lathe Machine
-
Max. Length of Workpiece (mm):
-
3000 mm
-
Year:
-
2024
-
Max. Spindle Speed (r.p.m):
-
1500 r.p.m
-
Max. Weight of Workpiece(kg):
-
300
-
Spindle Bore(mm):
-
52
-
Width of bed (mm):
-
400 mm
-
Spindle Motor Power(kW):
-
7.5/11
-
Travel (X Axis)(mm):
-
410 mm
-
Travel (Z Axis)(mm):
-
850 mm
-
Positioning Accuracy (mm):
-
±0.015
-
Repeatability (X/Y/Z) (mm):
-
±0.006
-
Place of Origin:
-
Shandong, China
-
Dimension(L*W*H):
-
2550*1550*1900
-
Brand Name:
-
GOLDCNC
-
Model Number:
-
CAK6180 CNC Lathe Machine
-
Voltage:
-
380V
-
Weight (KG):
-
2800
-
Marketing Type:
-
Hot Product CNC Lathe Machine 2024
-
CNC or Not:
-
CNC
-
Automatic Grade:
-
Automatic
-
Tail stock sleeve taper:
-
MT 5
-
Length:
-
2750
-
Max wcrtpiece length:
-
750/1000/1500/2000/3000mm
-
spindle speeds:
-
21~1500r/min
-
Weight:
-
3500
-
After-sales Service Provided:
-
Online support,Video technical support
-
Product name:
-
Low cost cnc lathe CAK6180 china horizontal cnc metal lathe machine
-
Keyword:
-
cnc lathe machine
Product Description
GOLDCNC
have a well-developed lathe machine production system to meet various proces-sing demands.
Flat Bed Lathe Machine Series:
CA--Horizontal lathe machine;
CAK--CNC lathe machine; Slant Bed CNC Lathe Machine Series: DS--Dual Spindle lathe machine; TMC--CNC turning and milling combination;
CA--Horizontal lathe machine;
CAK--CNC lathe machine; Slant Bed CNC Lathe Machine Series: DS--Dual Spindle lathe machine; TMC--CNC turning and milling combination;
Product Parameters
|
Specifications
|
|
CAK6150
|
CAK6163
|
CAK6180
|
|
CK61100
|
|
|||||
|
Processing Capacity
|
Max.swing over bed
|
Φ500
|
Φ630
|
Φ800
|
|
Φ1000
|
|
|||||
|
|
|
|
|
|
|
|
|
|||||
|
|
Max.swing over slide
|
Φ285
|
Φ410
|
Φ470
|
|
Φ680
|
|
|||||
|
|
X-axis (lateral) maximum stroke
|
330
|
|
480
|
|
560
|
|
|||||
|
Bed
|
Width of bed guideway
|
400
|
|
600
|
|
600
|
|
|||||
|
|
Max.distance between centers
|
1000/1500/2000/3000
|
|
1500/2000/3000
|
|
|
|
|||||
|
Spindle
|
Spindle Head type
|
A2-8
|
|
C11
|
|
C11
|
|
|||||
|
|
Spindle inner hole taper
|
Metric90/1:20
|
|
Metric1：20
|
|
Metric120，1:20
|
|
|||||
|
|
Spindle bore(mm)
|
Φ82/105
|
|
Φ100
|
|
Φ100
|
|
|||||
|
|
Spindle speed(rpm)
|
2000
|
1500
|
Manual 3 gears:40-125；110-350；290-950
|
|
|
|
|||||
|
|
Spindle motor power(kw)
|
7.5
|
11
|
11
|
|
15
|
|
|||||
|
|
Manual three jaw chuck size(mm)
|
Φ250
|
Φ320
|
Φ400
|
|
Φ400
|
|
|||||
|
Servo Axes
|
X axis screw
|
2505
|
|
3206
|
|
3206
|
|
|||||
|
|
Z axis screw
|
4010
|
|
6310
|
|
6310
|
|
|||||
|
Working Precision
|
Rapid feed speed(mm/min)
|
X：8000
|
Z：6000
|
X：8000
|
Z：6000
|
X:4000
|
Z：6000
|
|||||
|
|
positioning accuracy (mm)
|
X：0.01
|
Z：0.01
|
X：0.01
|
Z：0.01
|
X：0.01
|
Z：0.01
|
|||||
|
|
Repetitive positioning accuracy(mm)
|
X：0.0075
|
Z：0.010
|
X：0.0075
|
Z：0.010
|
X：0.015
|
Z：0.018
|
|||||
|
|
Roundness(mm)
|
≤0.007
|
|
|
|
|
|
|||||
|
|
Diameter consistency
|
≤0.03 mm / 300 mm
|
|
|
|
|
|
|||||
|
|
Flatness
|
≤0.02 mm / Φ300 mm
|
|
|
|
|
|
|||||
|
|
Surface roughness (steel parts)
|
≤Ra 1.6 mm
|
|
|
|
|
|
|||||
|
Tail-stock
|
Tail socket diameter(mm)
|
Φ75
|
|
Φ100
|
|
Φ100
|
|
|||||
|
|
Tailstock sleeve stroke (heavy tailstock)(mm)
|
150
|
|
250
|
|
250
|
|
|||||
|
|
Tailstock center cone hole
|
MT5
|
|
MT6#
|
|
MT6#
|
|
|||||
CNC Lathe Machine Features:
CAK series CNC horizontal lathe has the characteristics of high precision, high power, high rigidity, etc.Its main components and structures have been optimized. The machine is equipped with Gsk980tdc or FANUC OI mate CNC system and full digital AC servo system, X and Z axes adopt semi closed loop control, ball screw adopts C3 precision ball screw, and electrical components adopt imported or domestic famous brands, meeting CE or domestic 3C certification.It is the preferred equipment for machining shafts, discs, sleeves, special surfaces and screw.

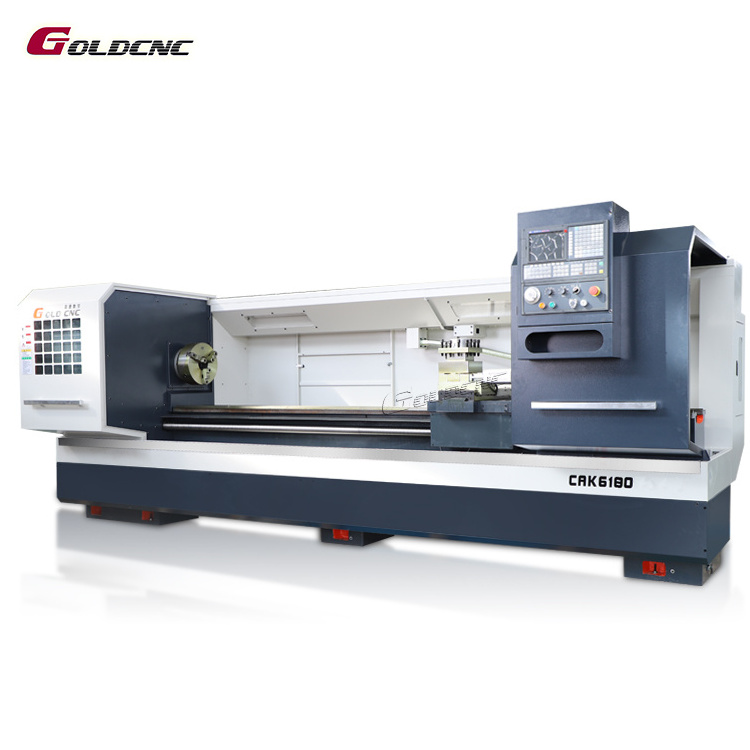

CAK6180
cnc lathe machine is one of our best-selling models.
The model of CNC Lathe machine series is divided into: CAK6140/CAK6150/CAK616/CAK6166/CAK6180/CK61100
Detailed Images
.Beautiful and generous.
.Change knife without lifting knife,Optional six-stations electric tool rest.
.High positioning accuracy,stability and reliability, widely application range.
03 Chuck:
.Metal three jaw chuck.
.Conducive to clamping irregular workpiece for rapid production.
04 Lathe Bed Guide Rail：
·Structure of castings is analyzed by FEM finite element method.
·Using medium frequency quenching grinding and plastic laminating process.
.Centralized lubrication system using japanese technology.
.Lubrication pump has working status display and hydraulic monitoring functions.
|
Standard Configuration
|
|
|
|
Name
|
Quantity
|
|
|
Three-jaw manual chuck
|
1
|
|
|
Dead Center
|
1
|
|
|
Tool
|
1
|
|
|
Damping pad iron
|
1
|
|
|
Optional Configuration
|
|
|
|
Name
|
Quantity
|
|
|
4-jaw manual chuck
|
1
|
|
|
Connecting Flange
|
1
|
|
|
Hydraulic chuck
|
1
|
|
|
Swing cylinder
|
1
|
|
|
Hydraulic oil tank
|
1
|
|
|
Reducing sleeve
|
1
|
|
Can you tell me what options you need?
“Contact now”
Customer Case
GOLD CNC aims to improve the reliable service system to provide high quality products and solutions for all fields of manufacturing users.
Key Components Adopt International First-class Brand.Inaddition, we have obtained certificates.
Products are widely used in aerospace.automobiles, ships, electronics, mold manufacturing and other fields.
Lathe machine is the preferred equipment for machining shafts, discs, sleeves, special surfaces and screw workpieces.
