Quick Details
-
Scroll Material:
-
Flat Steel, Square Bar, Round Bar, Square Pipe
-
Scroll Type:
-
C, S, P, Abnormity
-
Scroll Bending Speed:
-
500 PCS/Hour
-
Free Scroll Dies:
-
6 Sets
-
Control Way:
-
PC Program Control
-
Motor Power:
-
1.5 KW
-
Automatic:
-
Yes
-
Machine Dimension:
-
800x550x1100 MM
-
Machine Weight:
-
350 KG
Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
DUANHAI
-
Model Number:
-
DH-DW16E
-
Scroll Material:
-
Flat Steel, Square Bar, Round Bar, Square Pipe
-
Scroll Type:
-
C, S, P, Abnormity
-
Scroll Bending Speed:
-
500 PCS/Hour
-
Free Scroll Dies:
-
6 Sets
-
Control Way:
-
PC Program Control
-
Motor Power:
-
1.5 KW
-
Automatic:
-
Yes
-
Machine Dimension:
-
800x550x1100 MM
-
Machine Weight:
-
350 KG

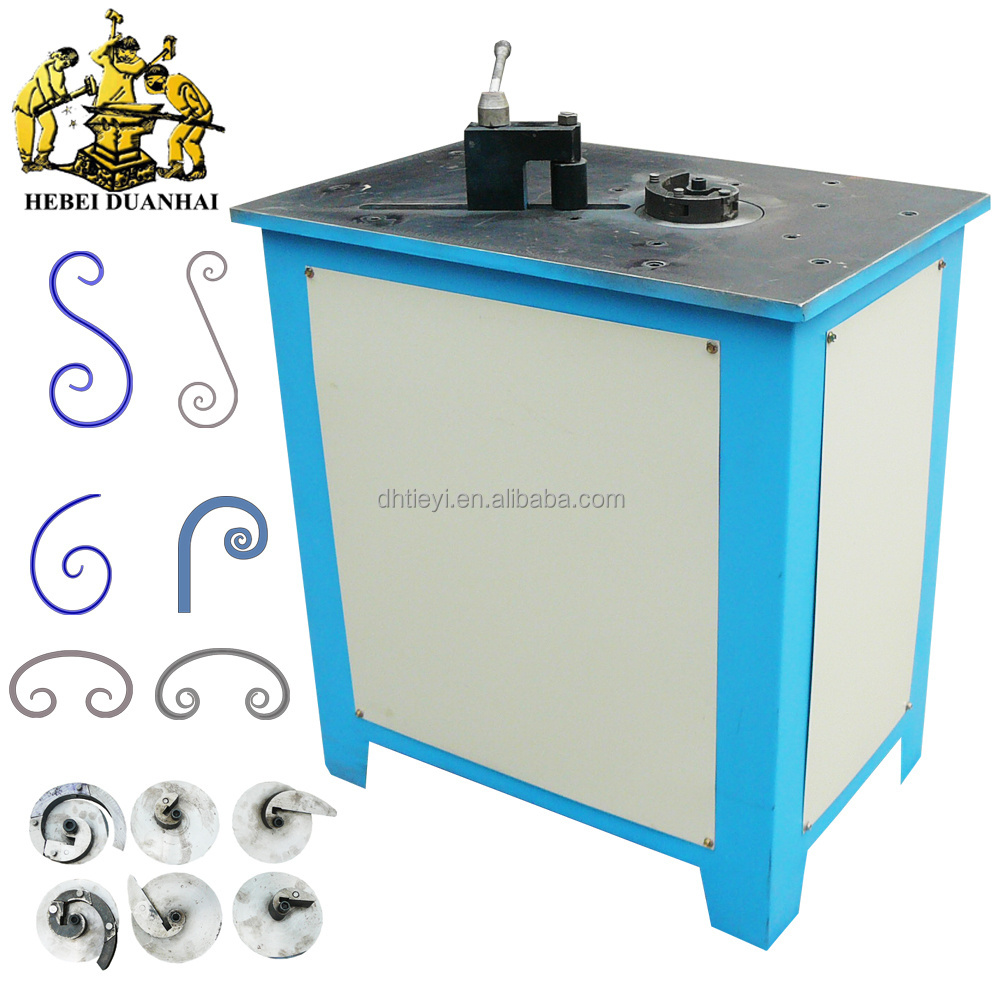

DH-DW16E Cold Forging Scroll Maker Machine
DH-DW16E is a electric machine designed for mass production of ornamental scrolls, bending the cold steel into different shape and size deponds on the geometry of molds, excellent solution for intensive industry.
1. Special machine that used for bending metal scroll.
2. Can process flat steel, steel square bar and round steel bar up to 10x10mm.
3. 200+ different scroll dies for choosing and accept customized design.
4. High capacity, 2000-3000 scrolls per day by skillful worker.
5. Precise control system, identical scrolls are quickly made.
6. The scroll widely used i n wrought iron gate, fence, furniture, staircase, w indow grille, baluster..etc.
Here are DH-DW16E Manual Scroll Bender Machine Details:
1. Can Make Various Scrolls.
Standard scoll, Coil Scroll, Fishtail Scroll, Pipe Scroll; accept custom design.
2. Control Panel.
Simple setting, precision time control for mass production. .
3. Working Area.
Big mold space, big material process range, big capacity.
4. Foot Switch.
Release the hands, improve working efficiency.
Here are DH-DW16E Electric Metal Craft Scroll Bending Machine Specification:
| Electric Wrought Iron Scrolling Bending Machine | ||
|
Max.
Working Ability |
Flat Steel | ≤50x10MM |
| Square Bar | ≤16X16MM | |
| Round Bar | ≤ Ø16MM | |
| Round Tube | Ø8-12MM 1-1.5MM Thk. | |
| Power | 1.5KW 380V 50HZ 3PHASE | |
| Free Molds | DW-01, DW-02, DW-03, DW-04, DW-05, DW-13 | |
| Main Features |
1. Automatically control pattern bending, time and location; high repeat precision.
2. Excellent mold quality, smooth and level, no hollow default. The mold open space large, easy operate. 3. Quick mold change, only need 4-8 seconds. 4. Larger working ability, max. process 16x16MM square bar. 5. High capacity, 500pcs per hours for make standard C pattern. 6. Complete products range include C, S, P pattern, all size. 7. The new improved mold without eccentric shaft increase the working range and working efficiency. |
|
| Dimension | 800x550x1100 MM | |
| Weight | 350 KG | |
We provide machine soluation for wrought iron products making.
