Quick Details
-
Brand Name:
-
UIPI, UIPI
-
Model Number:
-
OEM
-
Place of Origin:
-
Henan, China
-
Product Number:
-
EGSBM 1165 893 7980
-
Application:
-
For Conveyors
-
Bearing type:
-
Four Point Contact Ball Slewing Bearing
-
Material:
-
GB42CrMo(DIN42CrMo4/BS708A42/AISI4140)
-
Core Hardness:
-
262-302 HB
-
Raceway Hardness:
-
55-60 HRC
-
Certificate:
-
ISO9001:2008
-
Service:
-
Design, Manufacturing, Customized
Quick Details
-
Applicable Industries:
-
Manufacturing Plant, Machinery Repair Shops, Construction works
-
Feature:
-
Four Point Contact
-
Seals Type:
-
Rubber Sealed
-
Brand Name:
-
UIPI, UIPI
-
Model Number:
-
OEM
-
Place of Origin:
-
Henan, China
-
Product Number:
-
EGSBM 1165 893 7980
-
Application:
-
For Conveyors
-
Bearing type:
-
Four Point Contact Ball Slewing Bearing
-
Material:
-
GB42CrMo(DIN42CrMo4/BS708A42/AISI4140)
-
Core Hardness:
-
262-302 HB
-
Raceway Hardness:
-
55-60 HRC
-
Certificate:
-
ISO9001:2008
-
Service:
-
Design, Manufacturing, Customized
Slewing bearings are large-sized bearings which can accommodate a combined load, i.e., radial loads and tilting moment. They are usually provided with holes for fixing bolts; internal, external or no gear; and lubrication holes and seals, which allow a compact and economical arrangement. In addition, they often enable the elimination of many components necessary in the classical bearing arrangement.

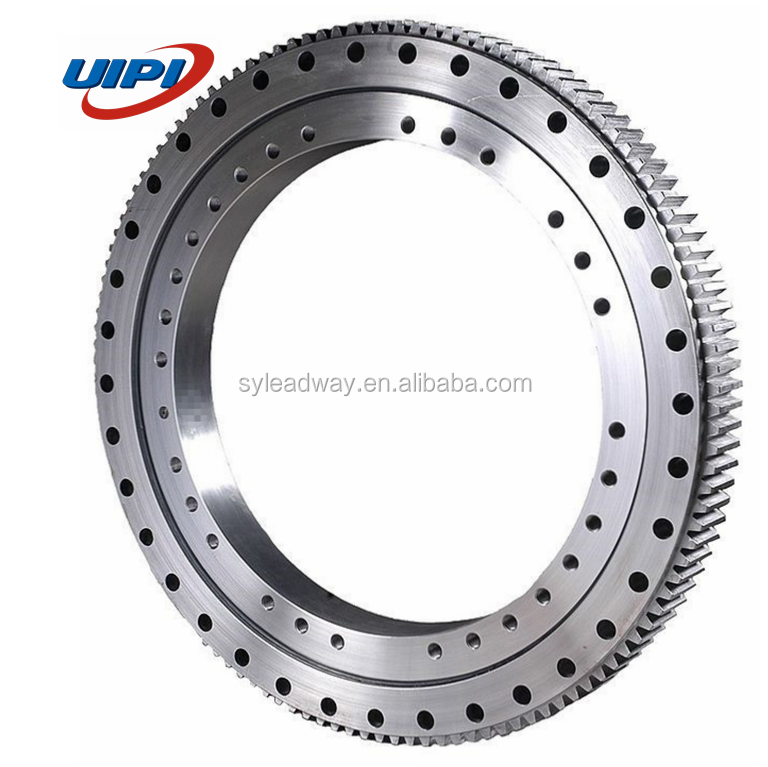

Slewing Bearing Details As Below:
|
Product Name
|
OEM Manufacture Excavator Turntable Bearings Suppliers Swing Bearing Ring
|
|
Model Number
|
EGSBM 1165 893 79
|
|
Gear Option
|
External Gear
|
|
Seal Type
|
Rubber Sealed
|
|
Features
|
Four Point Contact Ball Slewing Bearing
|
|
Application
|
For Excavtor
|
|
Brand
|
UIPI
|
|
Outer diameter:
|
1165 mm (45.87")
|
|
Inner diameter:
|
893 mm (35.16")
|
|
Height:
|
87 mm (3.43")
|
|
Axial play:
|
0.03 mm~0.10 mm
|
|
Radial play:
|
0.03 mm~0.10 mm
|
|
Core hardness:
|
262-302 HB quenching and tempering
|
|
Raceway Hardness:
|
55-60 HRC quenching
|
|
Raceway Effective Depth
|
≥3 mm
|
|
Material:
|
GB42CrMo (DIN42CrMo4/BS708A42/AISI4140)
|
|
Standard
|
EN 10204 2.2; EN 10204 3.1.B ; EN10204 3.1.C
|
|
Heat treatment
|
Quenching and tempering,
Raceway induction quenching |
|
Operating Temperature
|
-40°C to +50°C
|
|
Grease
|
EP2 lubricating lithium grease
|
|
Weight
|
196 KGS
|
|
Place of Origin
|
Luoyang, Henan, China
|
|
Certificate
|
API Q1 Certificate (American Petroleum Institute) Quality Assured Firm
Qualified to be used in Petroleum machinery equipment. ISO9001:2008 Certificate |
|
Services
|
OEM Service, Customized Service, Design Service
|
UIPI is a slewing bearing (slewing rings) manufacturer specialized in large diameter solutions. We have our own warehouse in LA, California, we can stock for customer or delivery to door anytime according to customer's request. In order to maintain our competitive edge, UIPI ran a sole proprietorship factory in China.
In 2017, Universal Industrial Products, Inc.(Luoyang ) has passed the
API Q1 Certificate
(American Petroleum Institute) Quality Assured Firm Qualified to be used in Petroleum machinery equipment. We are
the first and for now the only slewing bearing manufacturer
who has got API Q1 Certificate in China
UIPI insists on "Customer First, Quality First". Our goal is to use our resources to extend your company's capabilities and provide a comprehensive solutions package for all your application.
UIPI (Luoyang) has passed the API Q1 Certification and to be the China first API Qualified manufactuer in bearing industry.
1.Rough Lathing
2.Raceway Heat Treatment
3.Drilling Hole
4.Teeth Cutting
5.Teeth Heat Treatment
6.Final Turning
7.Assembling Ball and Spacer
8.Assembling seales
1.Before packaing -coat the anti-rust oil
2. Plastic film packing
3. Kraft paper packing
4. Blue woven belt packing
5. Tape wrapping
6. Plywood pallet packing
Slewing bearing is widely used in construction and energy industry. UIPI manufactures large diameter ball and roller slewing bearing utilized in many applications such as :
Q:Are you trading company or manufacturer?
A: Leadway is a sales office in Shenyang, the facility is in Luoyang, both of them are attached to UIPI, the manufacturer of slewing bearings in USA and have nearly 20 years experience in bearing industry.
Q: Do you provide OEM service?
A:Yes. About 90% customers are OEM customers. A variety of products size, quality and quantity can be customized according to your requirements.
|
Year
|
Qty
|
OEM Customer
|
Aftermarket
|
|
2014
|
4470 pcs
|
3920 pcs
|
550 pcs
|
|
2015
|
6780 pcs
|
6107 pcs
|
673 pcs
|
|
2016
|
7036 pcs
|
6558 pcs
|
478 pcs
|
|
2017
|
8960 pcs
|
8540 pcs
|
420 pcs
|
Q: How long is your delivery time?
A: Production time: 45-60 days generally speaking.
Shipping time: for small order quantity 1-2 pieces and needed urgently, we suggest transport by air about 7 days; for large order quantity, we suggest transport by sea about 30 days from Shanghai port.
Q: How do you guarantee the delivery time?
We have strict production schedule to assure the delivery time, kindly check the production schedule as below:
A. Forging purchase period: 15-20 days
B. Production process:
1. Rough turning: 2-3 days
2. Raceway heat treatment: 2 days
3. Fine turning: 2 days
4. Gear cutting: 4-5 days
5. Drilling: 2-3 days
6. Final turning: 2 days
7. Assembling and Inspection: 2 days
C. Packing and delivery to Port: 3-5 days
The final delivery time is 45days production time plus shipping time.
B. Production process:
1. Rough turning: 2-3 days
2. Raceway heat treatment: 2 days
3. Fine turning: 2 days
4. Gear cutting: 4-5 days
5. Drilling: 2-3 days
6. Final turning: 2 days
7. Assembling and Inspection: 2 days
C. Packing and delivery to Port: 3-5 days
