Quick Details
-
Productivity:
-
15-30m3/h
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Spark
-
Weight:
-
4500 kg
-
Dimension(L*W*H):
-
4200*2300*2600mm
-
Marketing Type:
-
Popular Sell Concrete Mixer With Pump
-
Product name:
-
Concrete Mixer Pump Machine
-
Concrete pump type:
-
Electric Engines Concrete Pump
-
Application:
-
Construction Engineering
-
After-sales Service Provided:
-
Video Technical Support
-
Model:
-
JBS30 Electric Concrete Pump
-
Capacity:
-
15-30m3/h
-
Max Exit Pressure:
-
10Mpa
-
Form of Distribution Valve:
-
S tube valve
-
Tread Distance:
-
2250mm
-
Color and LOGO:
-
As customer
Quick Details
-
Power Type:
-
Electric
-
Max. vertical conveying distance:
-
160m
-
Max. horizontal conveying distance:
-
500M
-
Productivity:
-
15-30m3/h
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Spark
-
Weight:
-
4500 kg
-
Dimension(L*W*H):
-
4200*2300*2600mm
-
Marketing Type:
-
Popular Sell Concrete Mixer With Pump
-
Product name:
-
Concrete Mixer Pump Machine
-
Concrete pump type:
-
Electric Engines Concrete Pump
-
Application:
-
Construction Engineering
-
After-sales Service Provided:
-
Video Technical Support
-
Model:
-
JBS30 Electric Concrete Pump
-
Capacity:
-
15-30m3/h
-
Max Exit Pressure:
-
10Mpa
-
Form of Distribution Valve:
-
S tube valve
-
Tread Distance:
-
2250mm
-
Color and LOGO:
-
As customer
Product Overview
self loading concrete mixer with pump for sale concrete mixer pump and foam concrete concrete mixer pump trailer

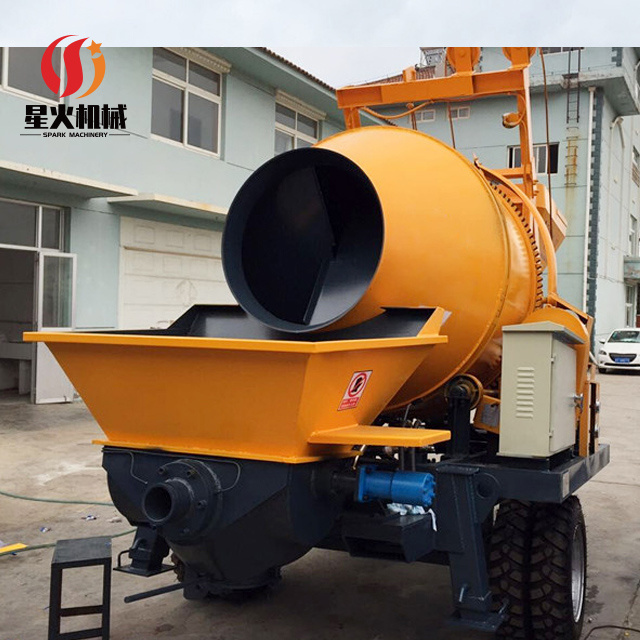

JBS30/40 electric concrete mixer pump is a type of fully automated construction operating system machine, which set feeding, mixing and high pressure pump as one of the concrete mixer pump.About mixing pump, easy operation ,stable performance, easy to move.
PRODUCT SPECIFICATIONS
Feature of JBS concrete pump
1. JBS Concrete mixer pump is mixer + pump 2 in 1 type machine.
2. Small mobile mixing plant, which can pump while mixing
3. In actual work Vertical conveying distance can reach 100 m; horizontal conveing 300m.
4. Fast and continuous discharging, easy delivery from on project to another.
|
Model
|
JBS30 Concrete mixer pump
|
JBS40 Concrete mixer pump
|
|
Max Theoretical Conveying Capacity
|
15-30m3/h
|
15-40m3/h
|
|
Max Exit Pressure
|
10Mpa
|
11Mpa
|
|
Form of Distribution Valve
|
S tube valve
|
S tube valve
|
|
Concrete Cylinder bore * stroke
|
Φ140×845mm
|
Φ160×1200mm
|
|
Main Oil Cylinder bore * stroke
|
Φ80/55×845mm
|
Φ100/70×1200mm
|
|
Oil Tank Volume
|
400L
|
400L
|
|
Exit Diameter
|
100mm
|
150mm
|
|
Conveying Pipe Inner Diameter
|
125mm
|
125mm
|
|
Pumping Motor Power
|
37kw
|
55kw
|
|
Rotate speed
|
2300rpm
|
2300rpm
|
|
Max Aggregate Size
|
30mm
|
40mm
|
|
Towing Speed
|
≤8km/h
|
≤8km/h
|
|
Max Horizontal Conveying Distance
|
300m
|
300m
|
|
Max Vertical Conveying Distance
|
120m
|
110m
|
|
Mixer Model
|
JZC350
|
JZC500
|
|
Outline Dimension
|
4200x2300x2600mm
|
5800*2300*3600mm
|
|
Weight
|
4500kg
|
5200kg
|
Combined JZC Mixer
Omron Automatic Control Panel
Nitrogen shock absorption system
Remote Control
Seamless steel pipe
Hose
Air Cooling System
Inside Valve
Hydraulic oil pipe
All the meters
Successful Project
JBS40 Diesel Concrete Pump Using At Fiji Site
JBS30 Diesel Concrete Pump Using At Congo Site
Other Working Site
SIMILAR PRODUCTS
FAQ
1. What's the warranty time ?
From the date of shipment, 1 year or 1500 working hours, whichever comes first.
2 . what's your payment term ?
We accept T / T ( 30 % down payment and balance before shipping ) and L / C mostly , But if you prefer other payment terms please contact us for further information.
3 . How long is your delivery time ?
Usually, it is 7-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
4 . Can we paint our label on your product ?
Of course! OEM and ODM are acceptable, please send us your logo or brand, and we'll paint for you.
2 . what's your payment term ?
We accept T / T ( 30 % down payment and balance before shipping ) and L / C mostly , But if you prefer other payment terms please contact us for further information.
3 . How long is your delivery time ?
Usually, it is 7-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
4 . Can we paint our label on your product ?
Of course! OEM and ODM are acceptable, please send us your logo or brand, and we'll paint for you.
