Quick Details
-
Weight:
-
1200 kg
Quick Details
-
Warranty:
-
2 years
-
Place of Origin:
-
Shandong, China
-
Table Size:
-
2270mm*1120mm
-
Weight:
-
1200 kg
|
Item
|
Unit
|
Parameter
|
|
Overall length
|
mm
|
2782
|
|
Overall width
|
mm
|
1581
|
|
Overall height
|
mm
|
2670
|
|
Rated working height
|
m
|
14
|
|
Maximum platform height
|
m
|
11.75
|
|
Maximum horizontal extension
|
m
|
900
|
|
Platform size
|
mm
|
2270×1120
|
|
Minimum turning radius
|
m
|
0
|
|
Minimum Ground Clearance
|
mm
|
120
|
|
Gross mass in travelling condition
|
kg
|
3560±40
|
|
Rated load mass
|
kg
|
320
|
|
Platform lifting speed
|
s
|
85
|
|
Lowering speed of working platform
|
s
|
75
|
|
Travelling speed (high speed)
|
km/h
|
2.4
|
|
Maximum platform height
|
m
|
11.75
|
|
Maximum gradient
|
|
30%
|
|
Battery
|
V/(ah)
|
48V/225AH
|
|
Charger
|
A
|
25
|
|
Crawler Specification
|
|
300X72X66
|
|
Tilt Warning Angle
|
|
2°（Both sides）3°（Front and rear）
|
Introduction

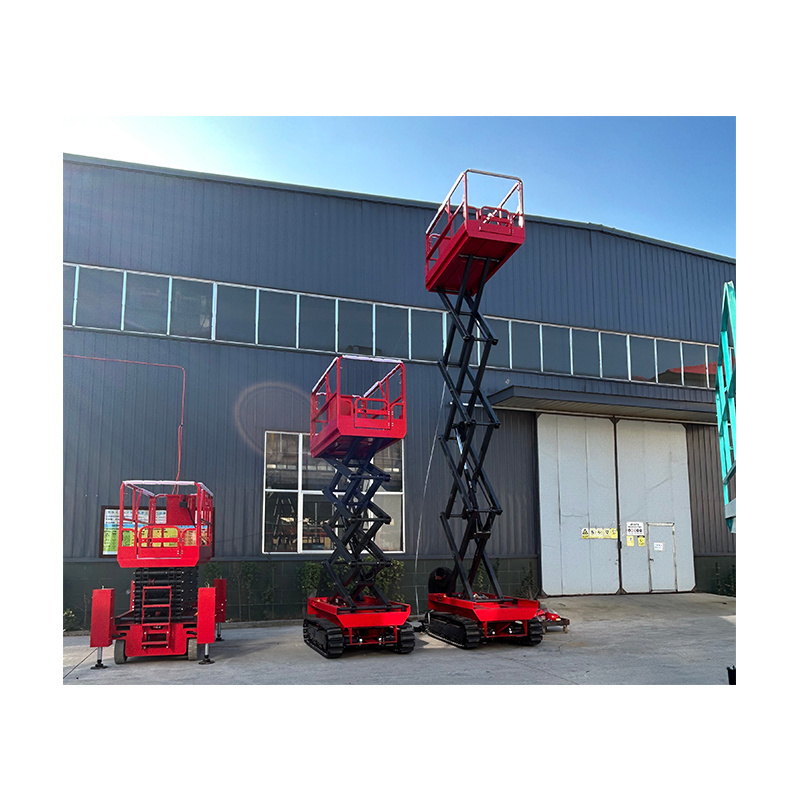

Crawler lift is a kind of mobile scissor lift specially designed for aerial work under complex road conditions in the field.
1、It has a strong ability to adapt to the environment and can work at height in the field without power supply and under complicated road conditions.
2, it adopts crawler wheels, weighted chassis, diesel engine driven lift travelling, battery control and lifting power supply, through the control button control drive lift up and down.
3、It can also use diesel engine to do lifting power through the manual hydraulic operation lever control lift up, down, battery charging by external power supply or through the diesel engine driven generator charging.
4, tracked lifts using weighted chassis, work, no legs, in the lift up, no need to not put the lift can walk, greatly improving the efficiency of the work.
5、It has crawler wheels, which increases the contact area with the earth, and it can walk and work on the muddy road in the field, which is the ideal equipment for oil exploration, installation and construction of communication lines in the field, and other field work at high altitude.
