Quick Details
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
BONENS
-
Model Number:
-
R1001
-
Specification:
-
R1001
-
Packaging Type:
-
Paper package
-
Application:
-
Audio Stereo Volume Switch Control
-
Package / Case:
-
plastic
-
Series:
-
R1001
-
Features:
-
3 Pin Single Linear Dial Wheel Potentiometer
-
Description:
-
Dial Wheel Potentiometer
Quick Details
-
Size / Dimension:
-
16*6mm
-
Resistance:
-
500 ~1M
-
Resistance Tolerance:
-
±20%
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
BONENS
-
Model Number:
-
R1001
-
Specification:
-
R1001
-
Packaging Type:
-
Paper package
-
Application:
-
Audio Stereo Volume Switch Control
-
Package / Case:
-
plastic
-
Series:
-
R1001
-
Features:
-
3 Pin Single Linear Dial Wheel Potentiometer
-
Description:
-
Dial Wheel Potentiometer
product name

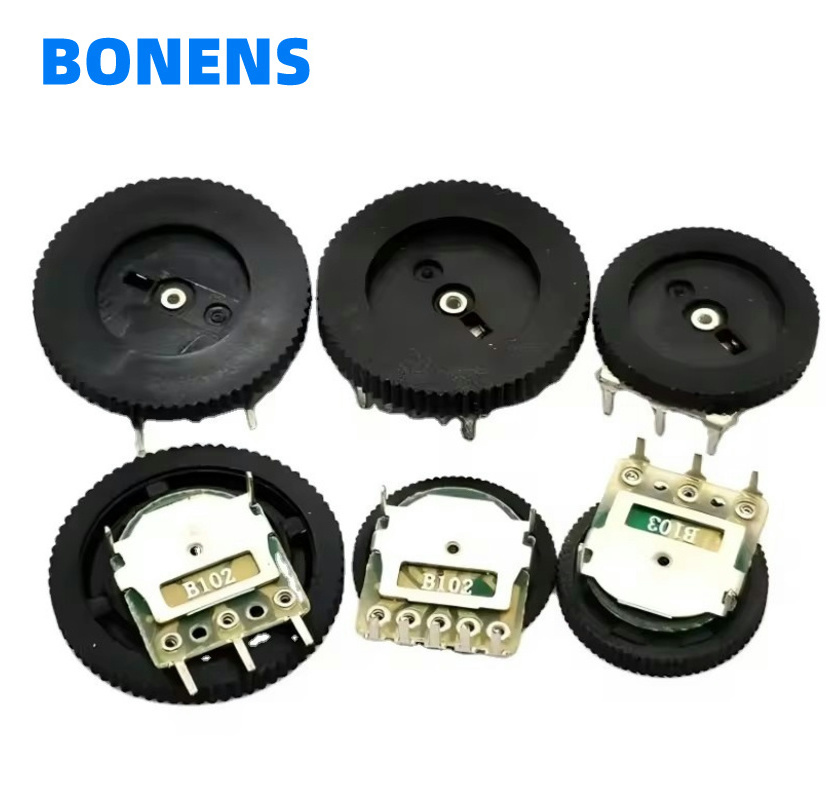

3-Pin Single Linear Dial Wheel Potentiometer for Audio Stereo Volume Switch Control 16x6mm B102 B103 B203 B503 B104 1K 2K 5K 10K 20K 50K 100K Ohm
5 Pin Dual Linear Dial Wheel Potentiometer for Audio Stereo Volume Switch Control 16mmx3 mm Double Dial Taper Volume Wheel Duplex Potentiometer B102 B103 B203 B503 B104 1K 2K 5K 10K 20K 50K 100K 5Pin 16 * 2mm
product description
The dial on the dial potentiometer generally refers to the cylindrical edge gear dial, which can adjust the resistance of the potentiometer by rotating to achieve the purpose of changing the circuit voltage.Generally used for volume adjustment in radios, cassette players, repeaters, MP3 players, stereos, etc.Dial diameter 16mm, thickness 2mm
|
Single Linear
3pin 16X2mm |
Dual Linear
5pin 16X2mm |
||
| B102 1K | B203 20K | B102 1K | B503 50K |
| B502 5K | B503 50K | B502 5K | B104 100K |
| B103 10K | B104 100K | B103 10K | B204 200K |
| B203 20K | |||
Specification parameters
|
Model Number
|
B102/B103/B104/B203/B502/B503
|
|
Specification
|
1K/5K/10K/20K/50K/100K
|
|
Features
|
3pin/5pin
|
|
Description
|
Gear potentiometer
|
|
Resistance Tolerance
|
±20%
|
|
Product Name
|
Gear Potentiometer
|
|
Resistance range
|
500 ~1M
|
|
Characteristic of resistance change
|
B
|
|
Voltage limit for high usage
|
AC50V DC12V
|
|
Rated power
|
0.05W
|
|
Sliding noise
|
less than 47MV
|
|
Residual resistance value
|
2PIN<10 Ω 2-3PN<10 Ω
|
|
Insulation resistance value
|
More than 100M Ω at DC 100V
|
|
Voltage withstand
|
1 minute at AC 100V
|
|
Synchronous
|
-40dB~0dB
|
Product Features
1. Small size, light weight
2. Gear design, adjustable resistance, easy to operate
3. Supports high and low level triggering
4. Strong wear resistance, long life, high resolution, wide range of uses
size
application area
Generally used for volume adjustment in radios, cassette players, repeaters, stereos, etc.
