1 . Commodity: Welding Neck, Blind, Slip-On, Lap Joint, Socket Weld, Threaded, Spectacle Blind, etc
2 . Surfacing: RF, FF, RTJ
3 . Materials: Stainless Steel, Duplex Steel, etc
4 . Standards: ANSI B16.5, ANSI B 16.47
5 . Tolerances: according to the specification or customer’s request and drawings
6 . Applications: Pipe connection, Piping project construction, etc
7 . Pressure class : 150 - 2500lbs
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
MTALI31
-
Product name:
-

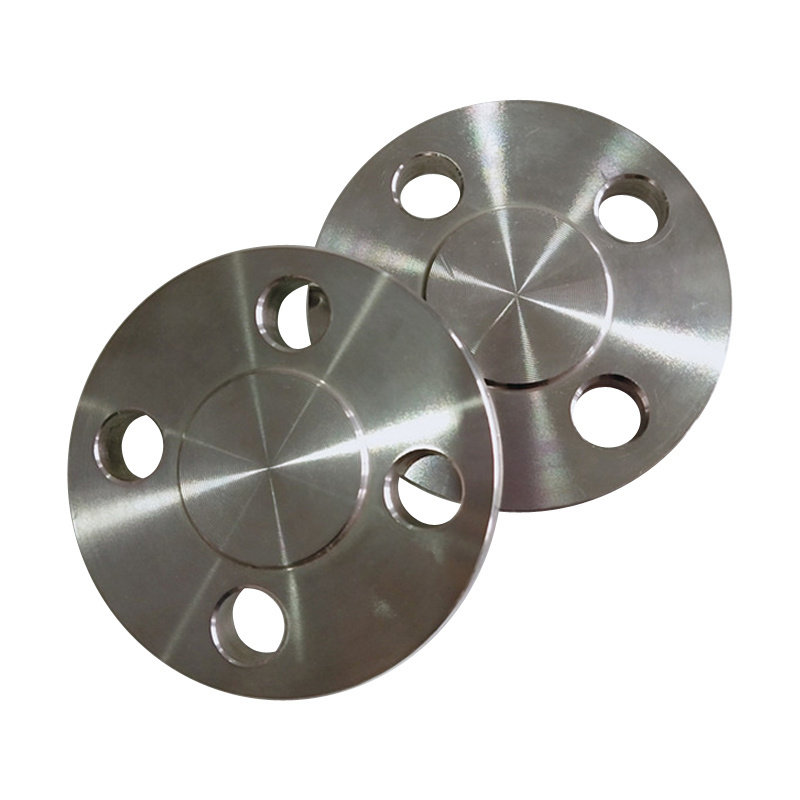

Stainless Steel Blind Flange
-
Type:
-
Blind
-
Technics:
-
Forged
-
Package:
-
Plywood Case
-
PMI:
-
100%
Quick Details
-
Standard:
-
ANSI, bs, DIN, GB, ISO, ASME, EN GOST SABS
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
MTSCO
-
Model Number:
-
MTALI31
-
Product name:
-
Stainless Steel Blind Flange
-
Type:
-
Blind
-
Technics:
-
Forged
-
Package:
-
Plywood Case
-
PMI:
-
100%
Stainless Steel Flange
Products Description
|
Material Grade
|
WP304 , WP304L , WP304H , WP316 , WP316L , WP316Ti , WP309S , WP310S , WP321 , WP321H , WP347 , WP347H , F304 , F304L , F304H , F316 , F316L , F310S , F321, etc
|
|
Size
|
1/2" to 48" Sch 5S to XXS
|
|
Standard
|
ASTM A403, ASTM A182 etc .
|
|
Process Method
|
Forged / Casting
|
Stainless steel flange
MTSCO Flange:
MTSCO can provide a variety of flanges and pipe fittings to meet your needs. We can not only provide quality standards in line with IS09001/PED, but also help you make better choices through our professional experience
MTSCO main markets are South America, North America, Europe, South Africa,india, Southeast Asia and the Middle East,
and has achieved a certain market share.
ASTM A182 / A182M Standard Chemical Composition :
|
Elements
|
304L(wt%) / F304L / S30403
|
304(wt%) / F340 / S30400
|
316L (wt%) / F316L /S31603
|
316 (wt%) / F316 / S31600
|
310 (wt%) / F310 / S31000
|
|
(C) Carbon, max
|
0.03
|
0.08
|
0.03
|
0.08
|
0.25
|
|
(Mn) Manganese, max
|
2
|
2
|
2
|
2
|
2
|
|
(P) Phosphorus, max
|
0.045
|
0.045
|
0.045
|
0.045
|
0.045
|
|
(S) Sulfur, max
|
0.03
|
0.03
|
0.03
|
0.03
|
0.03
|
|
(Si) Silicon, max
|
1
|
1
|
1
|
1
|
1
|
|
(Ni) Nickel
|
8.0 - 13.0
|
8.0 - 11.0
|
10.0 - 15.0
|
10.0 - 14.0
|
19.0 - 22.0
|
|
(Cr) Chromium
|
18.0 - 20.0
|
18.0 - 20.0
|
16.0 - 18.0
|
16.0 - 18.0
|
24.0 - 26.0
|
|
(Mo) Molybdenum
|
N/A
|
N/A
|
2.0 - 3.0
|
2.0 - 3.0
|
N/A
|
|
(Fe) Iron
|
N/A
|
N/A
|
N/A
|
N/A
|
N/A
|
|
(Cu) Copper
|
N/A
|
N/A
|
N/A
|
N/A
|
N/A
|
|
(N) Nitrogen
|
N/A
|
N/A
|
N/A
|
N/A
|
N/A
|
Advantages
a) Superior surface finish
b) Better mechanical property
c) More precise dimension
d) Perfect inspection method and inspection equipment
Product packaging
To protect the flange, for small size, we will pack them into plywood case. For large sizes, we will also pack them into plywood cases and protect them very well. But if we deliver it in a container, we will load them into the pallet. It is also a protective method.
Concentrate on customers' demand and support you with our sincere is our soul.
Sea freight or air freight, it's up to you.
