Quick Details
-
Power:
-
4KW
-
Min. Lifting Height:
-
11.75m Platform Height
-
Table Size:
-
2270*1110mm
-
Overall Dimensions:
-
2767*1500*2180mm
-
Weight:
-
3480 kg
-
Product name:
-

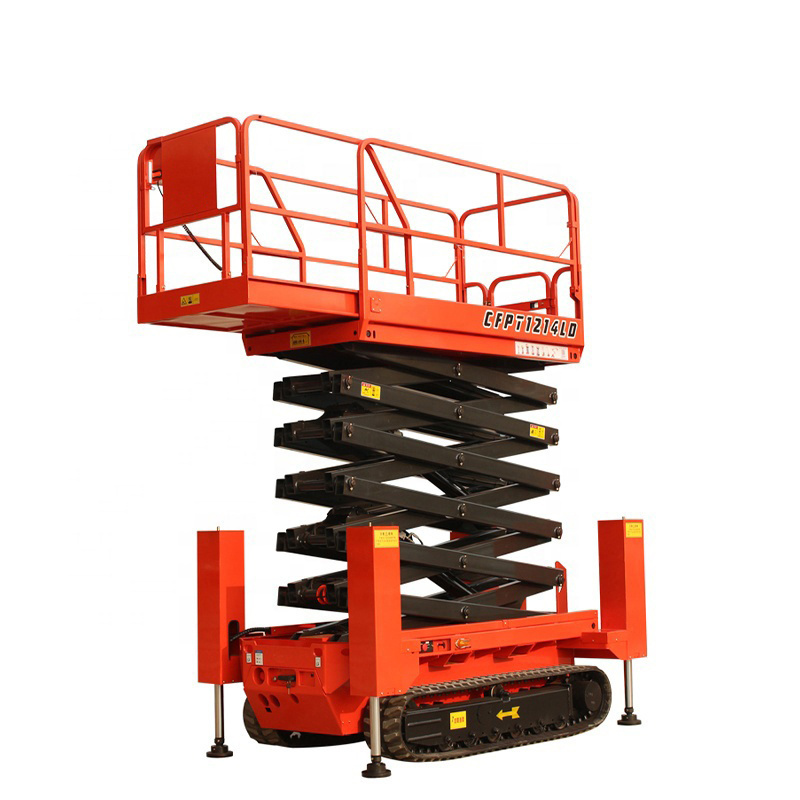

Electric Scissor Platform Crawler Tracked Scissor Lift With Outriggers
-
Keywords:
-
Tracked Scissor Lift
-
Max. Platform Height:
-
11.75m
-
Max. Working Height:
-
14m
-
Load Capacity:
-
320kg
-
Platform Extension Size:
-
900mm
-
Load Capacity of Extended Platform:
-
113kg
-
Gradeability:
-
30%
-
Application:
-
Construction Site
-
Type:
-
Crawler Scissor Lift
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
CFMG
-
Power:
-
4KW
-
Min. Lifting Height:
-
11.75m Platform Height
-
Table Size:
-
2270*1110mm
-
Overall Dimensions:
-
2767*1500*2180mm
-
Weight:
-
3480 kg
-
Product name:
-
Electric Scissor Platform Crawler Tracked Scissor Lift With Outriggers
-
Keywords:
-
Tracked Scissor Lift
-
Max. Platform Height:
-
11.75m
-
Max. Working Height:
-
14m
-
Load Capacity:
-
320kg
-
Platform Extension Size:
-
900mm
-
Load Capacity of Extended Platform:
-
113kg
-
Gradeability:
-
30%
-
Application:
-
Construction Site
-
Type:
-
Crawler Scissor Lift
Products Description
Product Features
• Rough-terrain capability
• 8-14m working height
• 450/320/230kg load capacity
• 48V power source with long working cycles
• Zero inside turning radius
• Derivable and functional at full height
• Outriggers
• Emergency stop at both platform and ground controls
• Proportional controls for drive functions
• 48V power source with long working cycles
• Zero inside turning radius
• Derivable and functional at full height
• Outriggers
• Emergency stop at both platform and ground controls
• Proportional controls for drive functions
Product Details
Product Parameters
|
Model
|
CFPT0810LDS
|
CFPT1012LDS
|
CFPT1214LDS
|
CFPT1416LDS
|
|
Platform Height
|
8m
|
9.75m
|
11.75m
|
13.75m
|
|
Working Height
|
10m
|
12m
|
14m
|
16m
|
|
Loading Capacity
|
450kg
|
320kg
|
320kg
|
230kg
|
|
Platform size
|
2.27*1.11m
|
2.27*1.11m
|
2.27*1.11m
|
2.64*1.11m
|
|
Dimensions
|
2.77*1.5*1.9m
|
2.77*1.5*2.03m
|
2.77*1.5*2.18m
|
2.98*1.5*2.29m
|
|
Size and Loading capacities of Extended Platform
|
0.9m/113kg
|
0.9m/113kg
|
0.9m/113kg
|
0.9m/113kg
|
|
Max number of workers
|
2
|
2
|
2
|
2
|
|
Gradeability
|
30%
|
30%
|
30%
|
30%
|
|
Weight
|
3014kg
|
3300kg
|
3480kg
|
4880kg
|
Products Applicaton
Product Packaging
Wooded LCL Packaging
or Container Packaging
