Fast shipment Hot air Blower heating and drying in building site
Fast shipment Hot air Blower heating and drying in building site
Fast shipment Hot air Blower heating and drying in building site
Fast shipment Hot air Blower heating and drying in building site
Fast shipment Hot air Blower heating and drying in building site
Fast shipment Hot air Blower heating and drying in building site
Fast shipment Hot air Blower heating and drying in building site
Fast shipment Hot air Blower heating and drying in building site

Fast shipment Hot air Blower heating and drying in building site

FOB Reference Price: Get Latest Price
≥2 Sets
US $1350
≥10 Sets
US $1230
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Rated Voltage:
220V three phase
Place of Origin:
Guangdong, China
Brand Name:
MANVAC
Model Number:
12.5KW Hot Air Blower
Product name:
12.5kw hot blower
AirFlow:
1050 (m3/h)
Material:
Aluminum Alloy
Frequency:
50/60 Hz
Voltage:
345-415V
Color:
Silver
Usage:
High Pressure Blowing
Weight:
166Kg
Size:
1200*500*600(mm)

Quick Details

Application:
Air Blower
Pressure:
Extreme High Pressure
Warranty:
1 years
Rated Voltage:
220V three phase
Place of Origin:
Guangdong, China
Brand Name:
MANVAC
Model Number:
12.5KW Hot Air Blower
Product name:
12.5kw hot blower
AirFlow:
1050 (m3/h)
Material:
Aluminum Alloy
Frequency:
50/60 Hz
Voltage:
345-415V
Color:
Silver
Usage:
High Pressure Blowing
Weight:
166Kg
Size:
1200*500*600(mm)
Product Overview

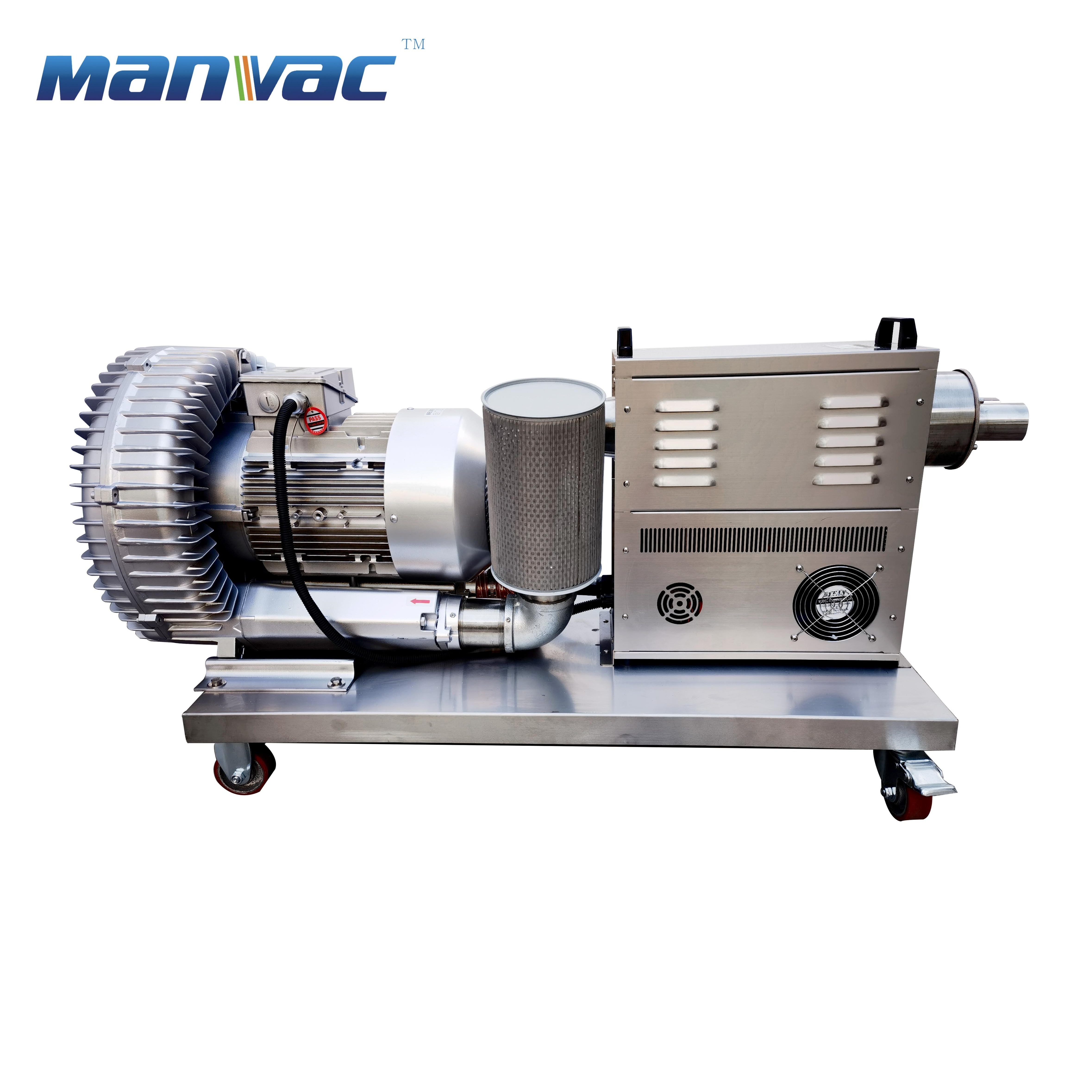

Industrial hot blower

Hot air blower is suitable for heating and drying in dry workshop, heat source equipment in drying room and heating in areas with small air flow. All kinds of industrial plants, workshops and steelmaking. Coal mine heating, preheating and drying of various construction sites, drying of anticorrosive inner walls of pipelines, speeding up the drying of paints, etc., and rescuing construction sites in winter. Warming, preheating and warming of the machine. Chemical, plastic and other products are dried, food is dried after cleaning, and heat-shrinkable packaging is used as an example.
FEATURES AT A GLANCE
High Efficency
Energysaving
Environmental
100% oil free design,low shake,stable performance.A large number of installed instance proved their efficiency optimization, operation safety, widespread application and the best reliability.

Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
Model
Phase
Weight
(KG)
Power
(KW)
Voltage
(V)
Max   airflow
(m3/h)
Max vacuum
(mbar)
Max  pressure
(-mbar)
50HZ
2MV 210 H06
3
10
0.4
200-240
80
130
-120
2MV 310 H06
3
11
0.55
200-240
100
120
-110
2MV 310 H16
3
12
0.75
200-240
100
150
-150
2MV 410 H06
3
13
0.75
200-240
145
120
-120
2MV 410 H16
3
16
0.85
200-240
145
160
-160
2MV 410 H26
3
17
1.3
200-240
145
200
-170
2MV 510 H06
3
20
0.85
200-240
210
100
-110
2MV 510 H16
3
22
1.3
200-240
210
170
-170
2MV 510 H26
3
23
1.6
200-240
210
190
-200
2MV 510 H36
3
25
2.2
200-240
210
270
-220
2MV 610 H06
3
25
1.6
200-240
265
180
-170
2MV 610 H16
3
28
2.2
200-240
265
220
-235
2MV 610 H26
3
34
3.0
200-240
265
280
-280
2MV 710 H06
3
27
1.6
200-240
318
150
-160
2MV 710 H16
3
30
2.2
200-240
318
200
-210
2MV 710 H26
3
36
3.0
200-240
318
290
-270
2MV 710 H36
3
40
4.0
200-240
318
330
-290
2MV 810 H07
3
54
4.0
345-415
530
200
-200
2MV 810 H17
3
63
5.5
345-415
530
300
-300
2MV 810 H27
3
66
7.5
345-415
530
430
-320
2MV 910 H07
3
93
8.5
345-415
1050
210
-210
2MV 910 H17
3
116
12.5
345-415
1050
270
-280
2MV 910 H37
3
126
18.5
345-415
1050
460
-340
POWER
A(cm)
C(cm)
D(cm)
F(cm)
H(cm)
L(cm)
3-15KW
8.5
20
13.3
31
41
40
10-30KW
8.5
26
13.3
36
45
52
30-60KW
13
36
21.9
43
60
70
PRODUCT CONFIGURATION

Characteristic 1.

Steel ring and cast aluminium layer line inside of MV moforback coi/erbearing base

Characteristic 2 .

Enlarge electric connection box, easy to operate. Nut and screw totally applied copper material. Increase diameter and length of connection terminal. Electrical conductivity better and stable.

Characteristic 3 .

MV Ring blower, increased 10% the external diameter and thickness of rotor. Enlarge the motor shell,protect blower from overload
Successful Project
Indoor air heating
Production line heating
Workshop heating
Warehouse heating
Machine preheating
Accelerated paint drying
SIMILAR PRODUCTS
220V Single Phase Blower
Single Stage Ring Blower
Double Stage Ring Blower
Professional service team
Dongguan Mingkai Electromechanical Co., Ltd. is located in Dongguan, a garden city with the reputation of "world factory". Established in July 2002, Factory space 6000m2. In the field of plastics industry, food industry, chemical or pharmaceutical industry or even in the sector of environment. Wide range of Products: side channel blower, high speed turbo blower, industrial air products with high efficiency motor, NSK and SKF bearings. More than 10 years, experience for industrial air products. Dia casting machine, CNC machining equipment, automa tic wire winding machine, electric test machine, rotor balancing machining machinejmpeller balancing testing and machining machine etc.

Storage Delivery inspection Start loading. Safe delivery

Our Services

24 hours service online.
You can touch us by email, wechat,what's app,telephone QQ etc.
FAQ
1. What is the warranty of your machine?
R: 1 years, any product itself question,you can contact with us.
2. What is the material of your machine , is oil free?
R: our machine is aluminum alloy, motor is 100% copper coil , of course, we are oil free.
3. How to operate your machine?
R: Connect with wire, and turn on the power, so you can use it directly, about the wiring method, we will tell you how to do
according to your voltage, so at first , you need to tell us your voltage and phase,its important.
4. You are trading company or manufacture?
R: We are manufacture, we can provide long-term supply with fast speed.
5. How to contact with you?
R: You can send messages to me directly by alibaba trade manager, or add me like below
