Quick Details
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
Shengquan
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
Customized
-
Technics:
-
Woven
-
Length:
-
50m, 100m
-
Temperature:
-
-30-160°C
-
Auxiliary materials:
-
Yellow PU gas blocked coating
-
Weight:
-
240g/m
-
Other name:
-
Cement truck aeration hose
-
Usage:
-
Bulk cement truck/ship/carrier
Quick Details
-
Power:
-
Customized
-
Warranty:
-
3 months
-
Width or Diameter:
-
customized
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
Shengquan
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
Customized
-
Technics:
-
Woven
-
Length:
-
50m, 100m
-
Temperature:
-
-30-160°C
-
Auxiliary materials:
-
Yellow PU gas blocked coating
-
Weight:
-
240g/m
-
Other name:
-
Cement truck aeration hose
-
Usage:
-
Bulk cement truck/ship/carrier

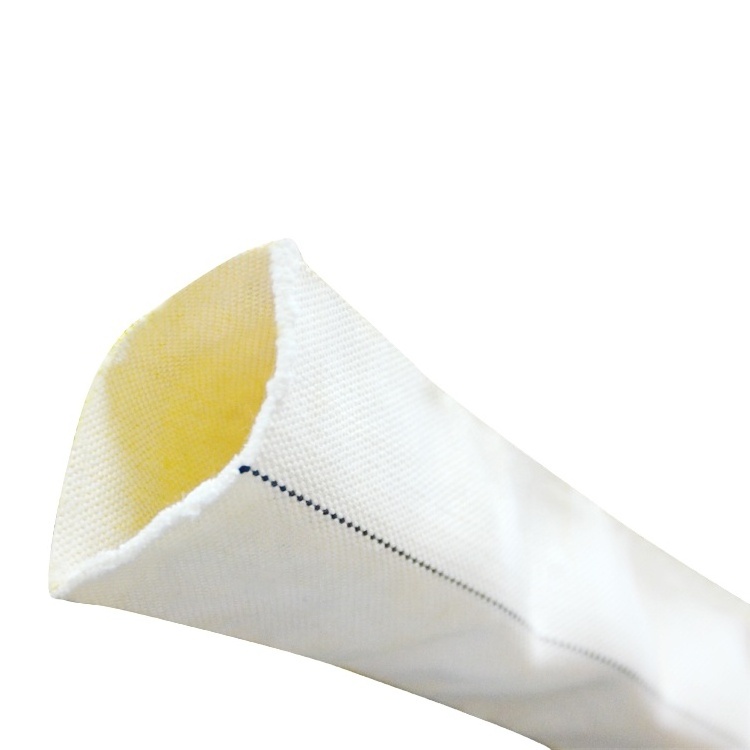

airslide hose
1.Introduction:
Our airslide hose are usually used for bulk cement trailer discharging. It always woking on the bottom of the trailer. Through inflation by air compressor, it makes the bulk cement discharging from the trailer. Some people called Aeration hose. It is really very similar as Fire hose frame. But it's much more strength and impact toughness th an fire hose. One side of our hose is the PU coating. It is for block off the air flow.
One side permeable,good abrasion resistance and long service life all synthetic.
One side PU coated,standard colour yellow PU-coating increases the abrasion resistance and supports at the same time the air permeability of the uncoated saide .
we can produce as customers special request.
2Specification:
|
Type |
Air resistance in 0.2 m3/m2 /h H2O mm |
|
High |
600-900 |
|
Low |
200-500 |
|
Type |
Internal Diameter(mm) |
Falt Width(mm) |
Weight(g/m) |
|
HP/C---1 |
58 |
92 |
180 |
|
HP/C---2 |
71 |
113 |
210 |
|
HP/C---3 |
76 |
120 |
240 |
|
HP/C---4 |
77 |
125 |
300 |
cold resistant to -30 degree heat resistant up to +160 degreeApplicati on:
our products can be applied to aertion of bulk powders and silo wagons. nular in silos
Material warp :100% polyester high tenacity
fiber weft: 100% polyester high tenacit y filament
Our products one side PU coated,standard colour yellow PU-coating increases the abrasion resistance and supports at the same time th air permeability of the uncoated side.
