Quick Details
-
Weight (KG):
-
63
-
Voltage:
-
110V/220V 50/60HZ
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
San-Tech
-
Dimension(L*W*H):
-
About 500*900*1800mm
-
Bag type:
-
3 Sides Seal/Back Seal
-
Usage:
-
Filling paste into bag/sachet
-
Main Function:
-
Weighing Forming Filling Sealing
-
Keyword:
-
Paste Packing Machine
-
Material:
-
Stainless Steel 304/316
-
Automaticity:
-
Automatic
Quick Details
-
Function:
-
FILLING, Sealing
-
Packaging Type:
-
Film, Pouch, Bags, Foil
-
Packaging Material:
-
Plastic
-
Weight (KG):
-
63
-
Voltage:
-
110V/220V 50/60HZ
-
Place of Origin:
-
Fujian, China
-
Brand Name:
-
San-Tech
-
Dimension(L*W*H):
-
About 500*900*1800mm
-
Bag type:
-
3 Sides Seal/Back Seal
-
Usage:
-
Filling paste into bag/sachet
-
Main Function:
-
Weighing Forming Filling Sealing
-
Keyword:
-
Paste Packing Machine
-
Material:
-
Stainless Steel 304/316
-
Automaticity:
-
Automatic
Products Description
We have all types machine for all your need,
send us your bag picture to get professional advice!!!
Product Application

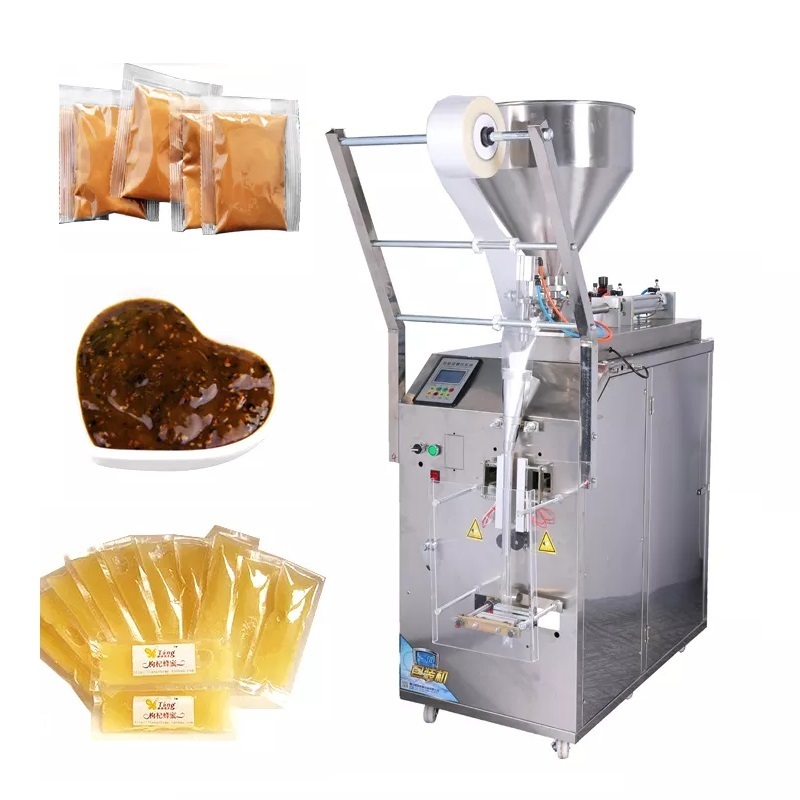

This machine is designed for filling and back side sealing paste or liquid which is packed in bags like sauce
package,bagged milk,bagged water.This machine is also with mixing function which ensure the material can be filled more equably.The filling volume and speed can be adjusted according to operation needs.It is widely used in food,beverage and chemical industries.The heating is available,please contact us if you need this.
This machine is designed for filling and back side sealing paste or liquid which is packed in bags like sauce
package,bagged milk,bagged water.This machine is also with mixing function which ensure the material can be filled more equably.The filling volume and speed can be adjusted according to operation needs.It is widely used in food,beverage and chemical industries.The heating is available,please contact us if you need this.
Feature
1.Using microcomputer & stepper motor to intelligently control.
1.Using microcomputer & stepper motor to intelligently control.
2.Good performance, clear sealing lines and firm sealing.
3.Fast speed, high accuracy. 4.304 stainless steel body, anti-corrosion and dust-proof.
|
Packing volume
|
3-10ML,10-26ML,20-85ML,25-125ML,30-230ML,50-500ML,100-1000ML
|
|
Packing type
|
Three side sealing, Back sealing
|
|
Hopper volume
|
30L
|
|
Bag width
|
3-12CM
|
|
Bag height
|
0-16CM
|
|
Voltage
|
220/110V 50-60HZ
|
|
Power
|
450W
|
|
Package Speed
|
15-25 bags/min
|
|
Filling Error
|
±0.5ml
|
|
Suitable Film Material
|
PP/PE/POF/PVC
|
|
Machine Dimension
|
500*900*1800mm
|
|
Machine Weight
|
63kg
|
|
Package Size
|
385*385*990mm+925*550*1170mm
|
|
Package Weight
|
42kg+76kg
|
|
Date Printing
|
Machines can be equipped with date printer
|
Application:

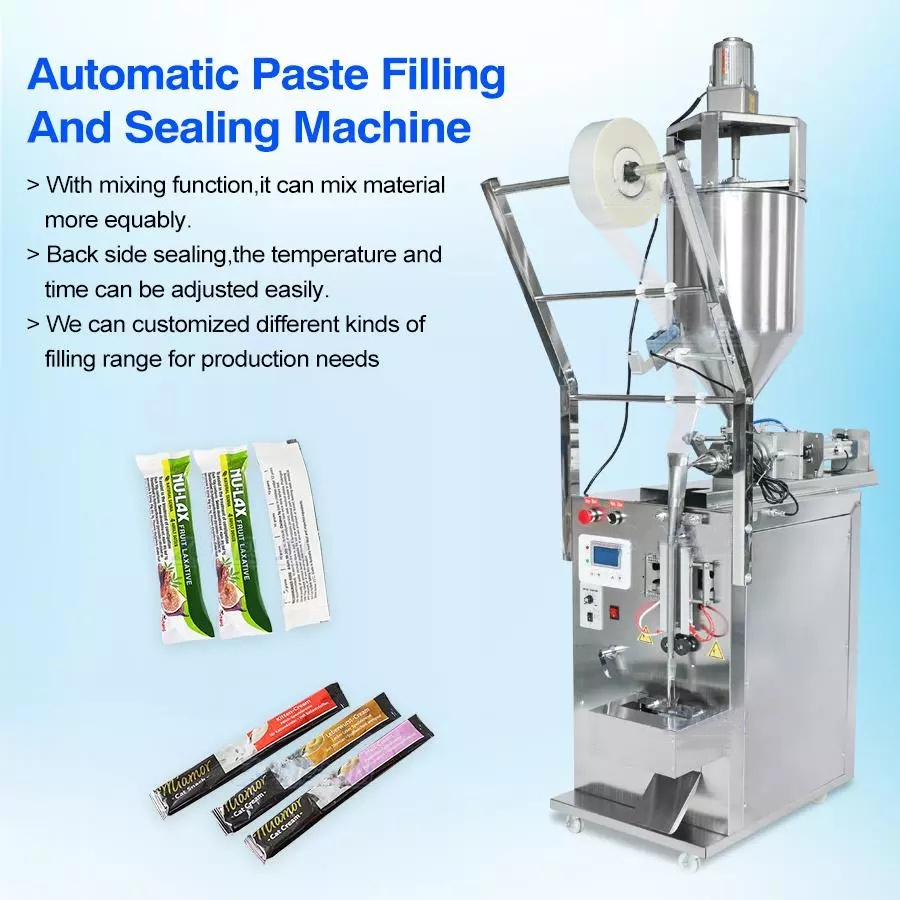

The chili sauce tomato paste packing machine is suit for automatic filling and packing liquid/paste/sauce/cream item, such as milk, honey, hair shampoo, tomato paste, salad dressing, jam ect. The machine adopt the pneumatic pump dosing unit which have the machine advantage of suit for viscous liquid item with high efficient and reliable performance. The most important is the machine equip with small horizontal ribbon blender mixing machine, this will make the machine much suit for seasoning paste/sauce, such as chili paste, for the mixing machine will have the paste evenly packaged with less deposite.
Contact Us
Packing&Shipping
Certifications
Our Factory
Exhibition
FAQ And Service
|
Q: Are you trading company or manufacturer ?
|
|
A:We are factory, all products are made by ourselves and we can provide customize service.
|
|
Q:What about your warranty?
|
|
A:Our warranty is 1 year, 24 hours online technical service and solution can be offered.
|
|
Q: What is your after sale service?
|
|
A: Our factory will provide life long service, in order to help our customer to solve any problem regarding to the machine, such as replacement part, technique questions, etc.
|
|
Q: Is there any ensurance to guarantee my order from your company?
|
|
A: We are an onsite check factory from Alibaba, and the quality, delivery time, your payment are all ensured by Alibaba trade assurance.During the warranty if any of the parts broken not by man-made.
We will free charge to replace the new one to you.
|
|
Make sample bags
|
|
If it's needed according to your requirements, we can make sample bags for your reference.
|
|
Free machine adjustment before shipment
|
|
Our technical team will adjust the machine based on customer's request and take video to send to our customer to show the running condition of the machine.
|
|
Overseas door to door service
|
|
Our engineer overseas door to door service is available.
|
