Quick Details
-
Brand Name:
-
ONCCY
-
Model Number:
-
EDS6EL
-
Max. Current:
-
55A
-
Product name:
-

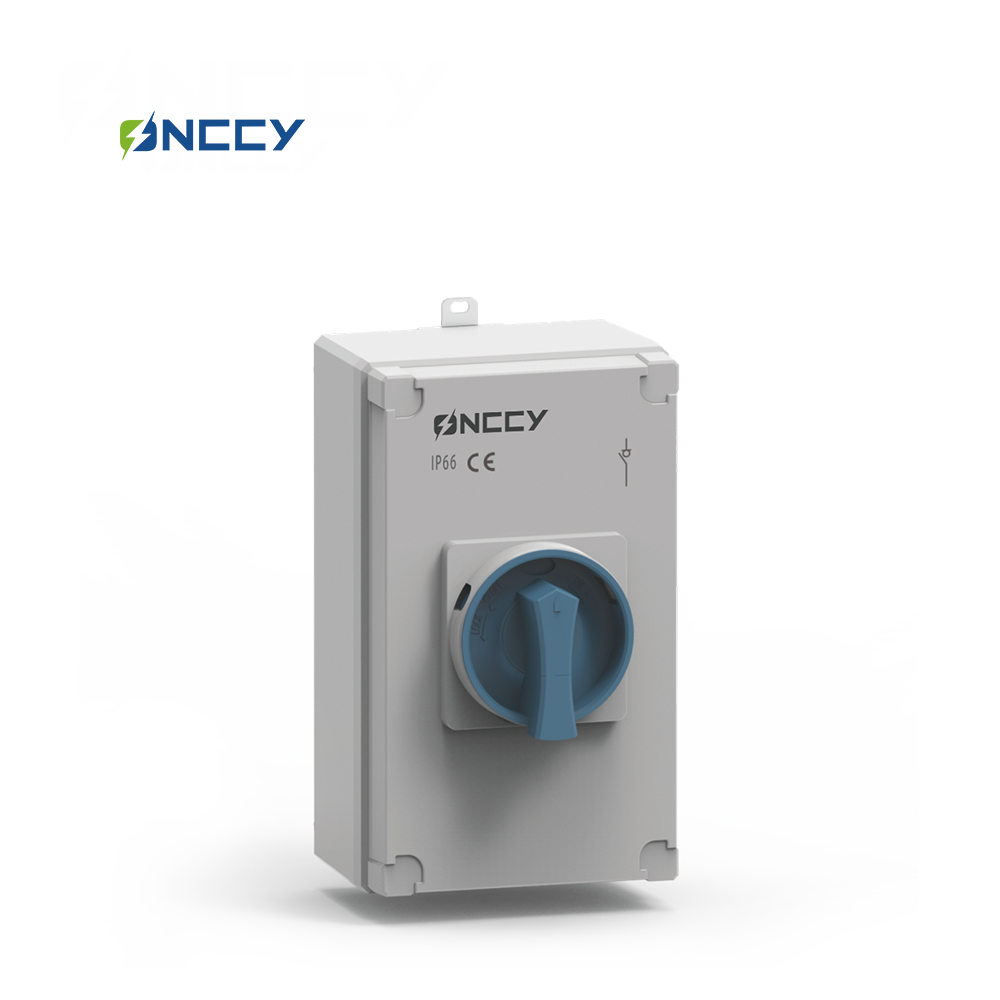

DC Isolator Switch
-
Mounting type:
-
Screw/Clip
-
Feature:
-
Circuit Protection
-
Quality:
-
High Quanlity
-
Warranty:
-
10 years
-
Pole:
-
2P/4P
-
Structure of Operating:
-
Manual
-
Certification:
-
ISO, GS, RoHS, CE, IS9001, ISO9001, ISO9002, ISO2000
-
Grounding:
-
Single Ground
-
Switching Mode:
-
Single Throw-in
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
1500V
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
ONCCY
-
Model Number:
-
EDS6EL
-
Max. Current:
-
55A
-
Product name:
-
DC Isolator Switch
-
Mounting type:
-
Screw/Clip
-
Feature:
-
Circuit Protection
-
Quality:
-
High Quanlity
-
Warranty:
-
10 years
-
Pole:
-
2P/4P
-
Structure of Operating:
-
Manual
-
Certification:
-
ISO, GS, RoHS, CE, IS9001, ISO9001, ISO9002, ISO2000
-
Grounding:
-
Single Ground
-
Switching Mode:
-
Single Throw-in
Products Description
|
Main Parameters
|
|
|
13
|
20
|
25
|
40
|
50
|
|||||||
|
Rated insulation voltage
|
Ui
|
V
|
1500
|
1500
|
1500
|
1500
|
1500
|
|||||||
|
Rated thermal current
|
Ith
|
A
|
32
|
40
|
55
|
55
|
55
|
|||||||
|
Rated impulse withstand voltage
|
Uimp
|
V
|
8000
|
|
|
|
|
|||||||
|
Rated short-time withstand current (1s)
|
Icm
|
A
|
780
|
|
|
|
|
|||||||
|
Rated short-time making capacity
|
Icm
|
|
1200A
|
|
|
|
|
|||||||
|
Maximum cable cross sections (incl. jumper)
|
|
|
|
|
|
|
|
|||||||
|
Solid or standard
|
|
mm²
|
4-16
|
|
|
|
|
|||||||
|
Flexible
|
|
mm²
|
4-16
|
|
|
|
|
|||||||
|
Flexible (+ multicore cable end)
|
|
mm²
|
4-16
|
|
|
|
|
|||||||
|
Torque
|
|
|
|
|
|
|
|
|||||||
|
Tightening torque terminal screws M4.
|
|
Nm
|
1.2-1.8
|
|
|
|
|
|||||||
|
Tightening torque single hole mounting nut M16
|
|
Nm
|
2.0-2.3
|
|
|
|
|
|||||||
|
Tightening torque knob screws M3
|
|
Nm
|
0.5-0.7
|
|
|
|
|
|||||||
|
Switching on or off torque
|
|
Nm
|
0.9-1.9
|
|
|
|
|
|||||||
|
General parameters
|
|
|
|
|
|
|
|
|||||||
|
Knob positions
|
|
|
9 o’clock OFF, 12 o’clock, ON
|
|
|
|
|
|||||||
|
Electrical Life
|
Actual
|
|
3000 Cycles
|
|
|
|
|
|||||||
|
|
Standard
|
|
300 Cycles
|
|
|
|
|
|||||||
|
Mechanical Life
|
Actual
|
|
10000 Cycles
|
|
|
|
|
|||||||
|
|
Standard
|
|
10000 Cycles
|
|
|
|
|
|||||||
|
Number of DC poles
|
|
|
2 or 4 (6/8 geek choice)
|
|
|
|
|
|||||||
|
Distance of contacts (per pole)
|
|
mm
|
8
|
|
|
|
|
|||||||
|
Operation temperature
|
|
℃
|
-40 to +85
|
|
|
|
|
|||||||
|
Store temperature
|
|
℃
|
-40 to +85
|
|
|
|
|
|||||||
|
Pollution degree
|
|
|
3
|
|
|
|
|
|||||||
|
Overvoltage category
|
|
|
III
|
|
|
|
|
|||||||
|
IP rating of shafte and mounting nut
|
|
|
IP66
|
|
|
|
|
|||||||
EDS6EL Screw fixing doesn’t interfere with the sealing performance; Multiple mechanical seals around the shaft guarantee the
reliability of a waterproof and moisture-proof design; Stainless steel rotary screw does not rust nor damp; Standard cable
interface available with seal rings; Internal sealing in top and bottom covers, combined with 2 screws, guarantee an IP66
protection degree.
reliability of a waterproof and moisture-proof design; Stainless steel rotary screw does not rust nor damp; Standard cable
interface available with seal rings; Internal sealing in top and bottom covers, combined with 2 screws, guarantee an IP66
protection degree.
