Quick Details
-
Brand Name:
-
WFIT
-
Model Number:
-
TZ-280-X-G-GA05
-
Frequency:
-
220HZ
-
Product Name:
-
55KW ev motor kit
-
Application:
-
Electric Vehicle
-
Duty:
-
s9
-
continous Speed:
-
4400rpm
-
continous torque:
-
120Nm
-
peak speed:
-
6000rpm
-
Peak Torque:
-
240Nm
-
DC bus range:
-
200-450V
-
motor mass:
-
62kg
-
Cooling method:
-
Water 50%+Glycol 50%
Quick Details
-
AC Voltage:
-
200-450V
-
Warranty:
-
1 year
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
WFIT
-
Model Number:
-
TZ-280-X-G-GA05
-
Frequency:
-
220HZ
-
Product Name:
-
55KW ev motor kit
-
Application:
-
Electric Vehicle
-
Duty:
-
s9
-
continous Speed:
-
4400rpm
-
continous torque:
-
120Nm
-
peak speed:
-
6000rpm
-
Peak Torque:
-
240Nm
-
DC bus range:
-
200-450V
-
motor mass:
-
62kg
-
Cooling method:
-
Water 50%+Glycol 50%
Product Description

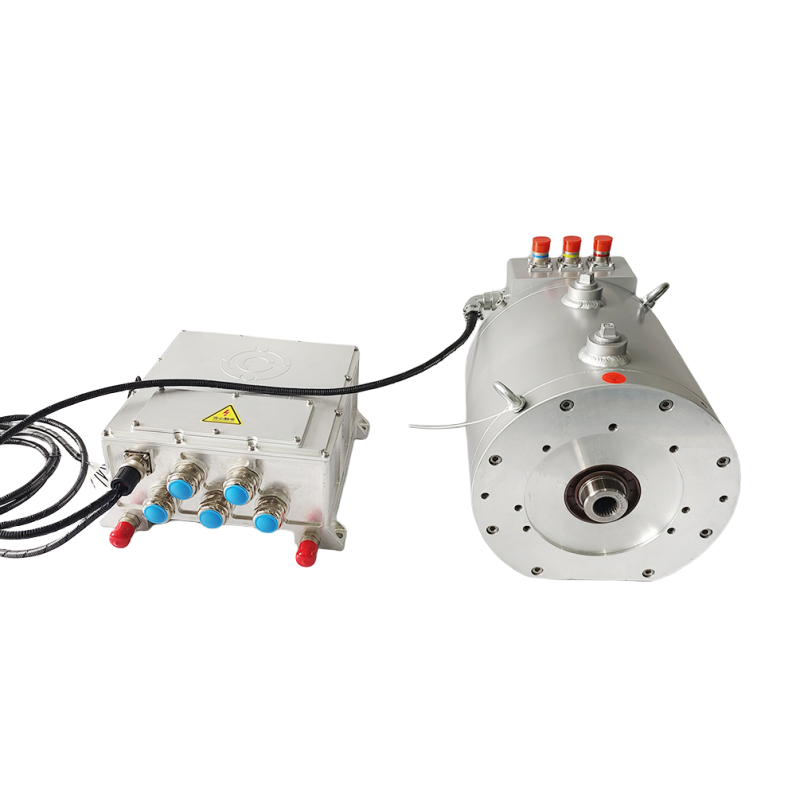

TZ series IPM motor is consisted of stator,rotor and high precision feedback unit ,is widely applied in power system which applied in varirty of electric vehicle.
Deatail:
|
The motor
|
Infromation
|
|
Continous/peak power(kw)
|
55/80
|
|
Continous/peak torque(Nm)
|
120/240
|
|
Continous/peak speed（rpm)
|
4400/6000
|
|
DC bus range(v)
|
220-450V
|
|
Peak effieciency
|
95%
|
|
Cooling
|
water 50%+50%glycol
|
|
Diemension
|
Φ280*L280
|
|
The controller
|
Information
|
|
DC battery voltage(v)
|
336
|
|
AC voltage(v)
|
200-450
|
|
Rated power(kw)
|
55
|
|
Rated output current(A)
|
210
|
|
Max output current (A)
|
350
|
|
Frequency(Hz)
|
0-300
|
|
Cooling
|
water cooling
|
Details Images
The advantages of the motor
1.Compact structure with high power density ,big pull -in torque ,and wide range of speed control
performance.
2.The motor weight is light,coule reduce the weight of entir evehicle.
3.Excellent performance in high speed.
3.Excellent performance in high speed.
5.High effeciency ,low loss, could process the branking energy recovery.
Application
For business bus.
Packing & Delivery
1.Packing
In order to ensure the integrity of the goods, we will pack them in standard export wooden cases.
2.Delivery
We can provide you with a wide variety of shipping methods.For example:air transportation、sea transportation 、railway transportation etc...
